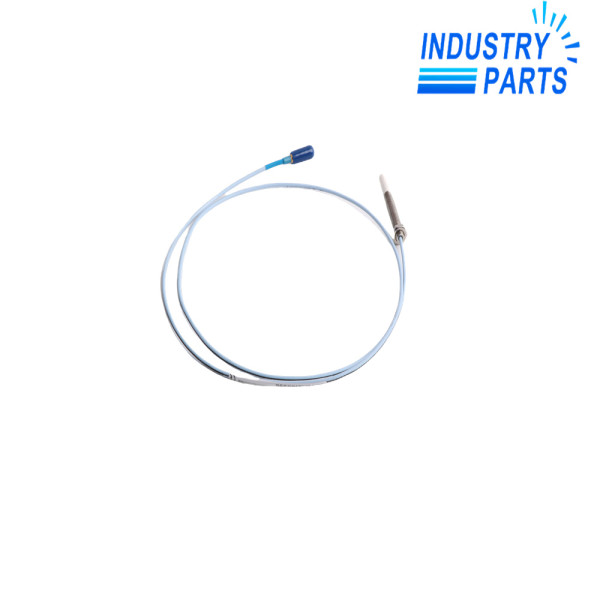

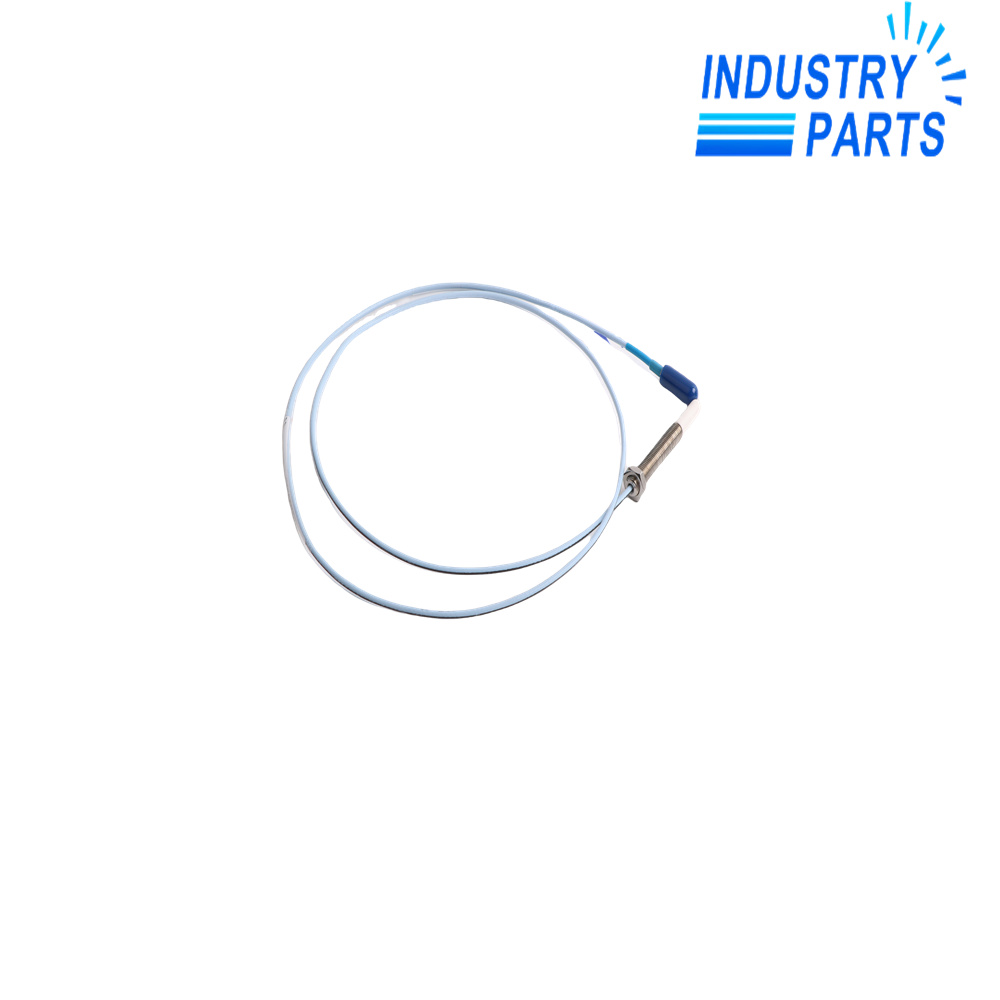

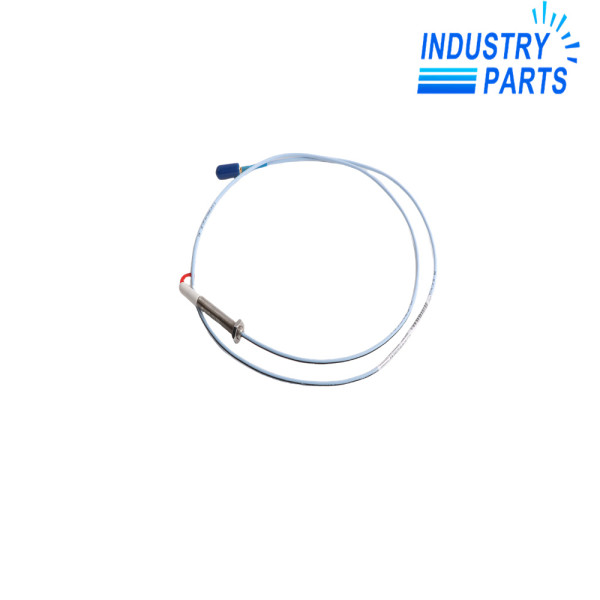

Bently Nevada 330173-00-05-10-02-00 3300 5 mm Proximity Probe
An unarmored M8 × 1 probe with a 50 mm case, 1.0 m lead and miniature coaxial ClickLoc connector.
Overview
Bently Nevada 330173-00-05-10-02-00 is a 3300 5 mm proximity probe identified by the complete submitted ordering string. Its suffixes and revision fields remain part of the supply identity.
Selection of 330173-00-05-10-02-00 should be based on the installed label, host-system record and the verified interface details below; neighboring family numbers are not treated as interchangeable.
Engineering Data
Functions
The compact 5 mm probe fits locations where physical constraints prevent use of the 8 mm probe.
It retains the 2 mm measurement range of the compatible 8 mm platform but does not reduce side-view clearance requirements.
The miniature ClickLoc connection supports the documented 3300 XL extension-cable interface.
The submitted execution is explicitly unarmored and has no connector protector.
Applications
- Radial vibration, axial position, Keyphasor reference or speed measurement when the host system supports the role.
- Compact proximity-probe installation with adequate side-view and target geometry.
- Like-for-like replacement of the exact 1.0 m unarmored probe execution.
Lifecycle & Service
- Document thread, 50 mm case, 1.0 m lead, connector condition and installed extension cable.
- Protect the unarmored cable during removal and routing; do not add an assumed armor option.
- Match probe plus extension cable to the documented Proximitor system length.
- Set gap and verify static output, dynamic response, polarity and protection logic.
FAQ
Why would 330173-00-05-10-02-00 be selected instead of an 8 mm probe?
Its smaller physical package supports constrained mounting locations, while the surrounding target and side-view clearances still require engineering review.
Does 330173-00-05-10-02-00 include cable armor?
No. The submitted 330173 execution is unarmored, so cable protection and routing must match the installed design.
What connector is supplied on 330173-00-05-10-02-00?
Option 02 defines the miniature coaxial ClickLoc connection on standard cable without a connector protector.
Can any extension cable be joined to 330173-00-05-10-02-00?
No. The probe and extension cable must produce the documented complete system length for the compatible Proximitor sensor.
What should be measured after installing 330173-00-05-10-02-00?
Record nominal gap, static voltage, polarity, runout or dynamic response and the relevant alarm, trip, Keyphasor or speed test.
