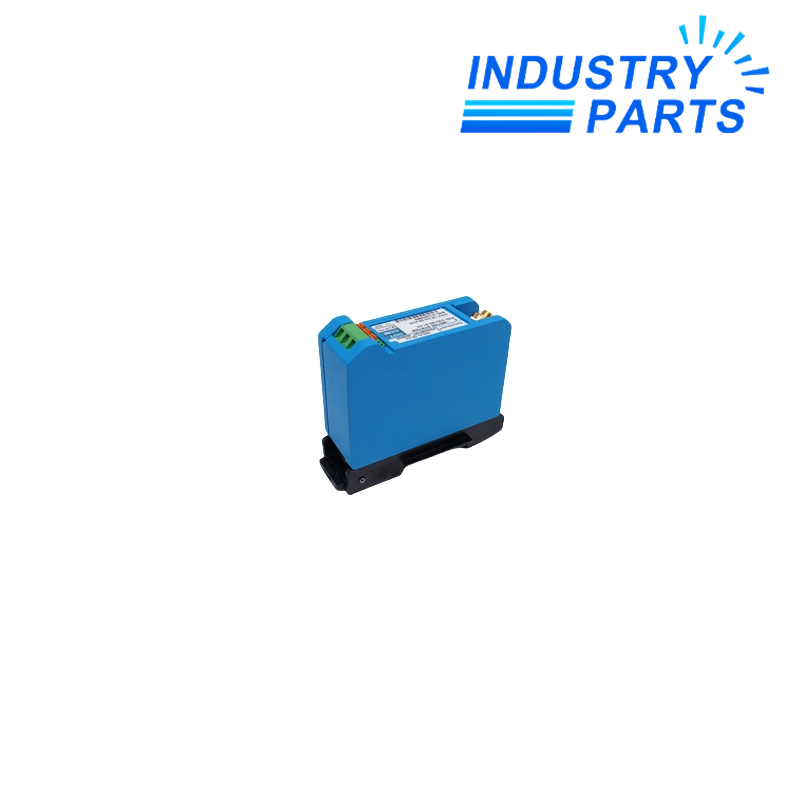

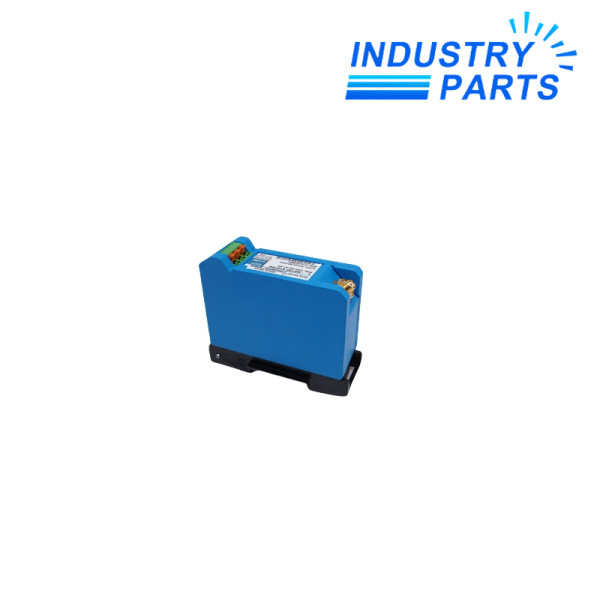

Bently Nevada 330180-51-00 3300 XL 5/8 mm Proximitor Sensor

Bently Nevada 330180-51-00 3300 XL 5/8 mm Proximitor Sensor

Item NO.: 330180-51-00
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameBently Nevada 330180-51-00 3300 XL 5/8 mm Proximitor Sensor
  • Item NO.330180-51-00
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryTSI
  • BrandBently Nevada
  • Creation Time2025-02-07
  • 3300 XL 8 mm Proximitor Sensor
Bently Nevada · Industrial Automation

Bently Nevada 330180-51-00 3300 XL 8 mm Proximitor Sensor

5-meter DIN-mount Proximitor Sensor configuration for 3300 XL 8 mm proximity measurement systems.

Product Identity

Product Overview

The 330180-51-00 is 5-meter DIN-mount Proximitor Sensor configuration for 3300 XL 8 mm proximity measurement systems.

Operating Characteristics

Performance

System length 5.0 m (16.4 ft)
Mounting DIN mount
Agency approval Not required
Field wiring 0.2 to 1.5 mm² (16 to 24 AWG)
Maximum field-wiring length 305 m (1,000 ft) between Proximitor Sensor and monitor
Official Data

Technical Details

Part number 330180-51-00
Family 3300 XL 8 mm Proximity Transducer System
Sensor material A308 aluminum
Connector material Gold-plated brass or gold-plated beryllium copper
System-length rule Probe length + extension-cable length must equal 5 m
System Fit

System Integration

Mounts on DIN rail using the 51 ordering option.
Integrates with compatible 3300 XL 8 mm probes and extension cables.
Connects to machinery protection or condition-monitoring equipment through the specified field wiring.
Maintain shielding and wiring practice described in the Bently Nevada system manual.
Typical Uses

Applications

Relative shaft vibration monitoring
Axial or radial shaft position measurement
Keyphasor / rotational-reference applications when configured accordingly
Turbines, compressors, pumps and other rotating machinery
Product Questions

FAQ

1. Is this a DIN-mount version?
Yes. The 51 mounting option specifies a 5-meter system length with DIN mounting.
2. Does it require an approved probe?
The complete transducer system must be selected to meet the installation approval requirements; this suffix 00 itself does not require agency approval.
3. Can I use any extension cable length?
No. Probe length plus extension-cable length must equal the 5-meter Proximitor Sensor system length.
4. What cable is recommended for field wiring?
Bently Nevada recommends a 3-conductor shielded triad cable with tinned field wiring.
5. Is 330180-50-00 the same?
The system length is the same, but 50 is panel mount while 51 is DIN mount.
