Bently Nevada · 3300 XL 8 mm Proximity Transducer System

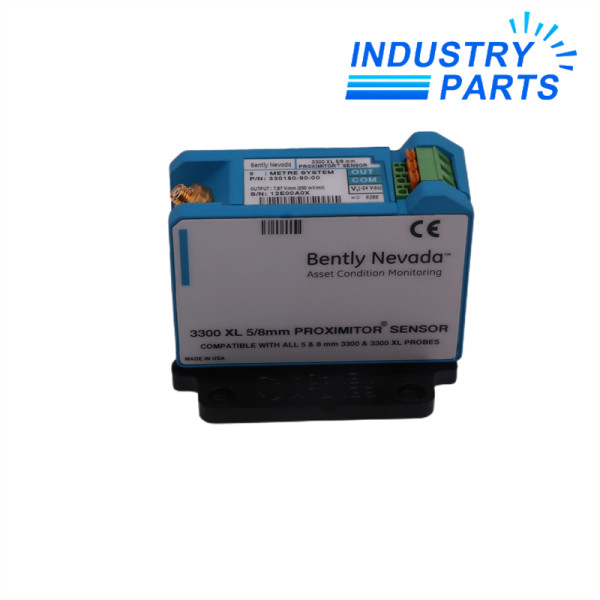

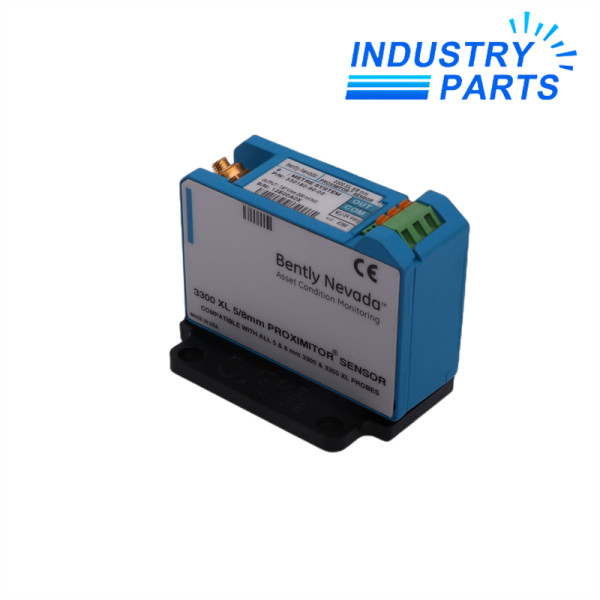

Bently Nevada 330180-90-00 Proximitor Sensor
The Bently Nevada 330180-90-00 is a 3300 XL Proximitor Sensor configured for a 9.0 m (29.5 ft) system length with panel mount. Agency approval is not required for the 00 suffix.
Engineering Snapshot
Technical Summary
330180-90-00 is the signal-conditioning element of a compatible 3300 XL 8 mm proximity system. The ordering code identifies a 9.0 m (29.5 ft) total system length and panel mount.
The 00 suffix specifies that agency approval is not required.
Manufacturer Data
Specifications
|
Manufacturer
|
Bently Nevada
|
|
Part Number
|
330180-90-00
|
|
Product Family
|
3300 XL 8 mm Proximity Transducer System
|
|
Product Type
|
Proximitor Sensor
|
|
System Length
|
9.0 m (29.5 ft)
|
|
Mounting
|
Panel mount
|
|
Agency Approval Option
|
Not required
|
|
Power Requirement
|
-17.5 to -26 Vdc under specified installation conditions; 12 mA maximum consumption
|
|
Output Resistance
|
50 Ω
|
|
Linear Range
|
2 mm (80 mils)
|
|
Incremental Scale Factor, 9 m System
|
7.87 V/mm (200 mV/mil), ±6.5%
|
|
Frequency Response
|
0 to 10 kHz, +0 / -3 dB
|
|
Operating Temperature
|
-52°C to +100°C
|
|
Storage Temperature
|
-52°C to +105°C
|
Functional Characteristics
Features
System-Length Calibration
Configured for the 9.0 m (29.5 ft) total transducer-system length.
Mounting Format
Designed for panel mount installation.
Approval Configuration
The 00 suffix specifies that agency approval is not required.
Engineering & Service
Installation
For 330180-90-00, the combined probe and extension-cable length must match the 9 m Proximitor Sensor system length. Follow Baker Hughes field-wiring and installation requirements, and verify the applicable approval documentation where certification is required.
Product Status
Lifecycle
The current Baker Hughes 3300 XL 8 mm datasheet continues to document the 330180 Proximitor Sensor family. No manufacturer-issued discontinuation date was identified in that current datasheet.
Buyer & Maintenance Questions
FAQ
1. What system length does 330180-90-00 use?
It is configured for a 9.0 m (29.5 ft) total transducer-system length.
2. What mounting style does 330180-90-00 use?
This variant uses panel mount.
3. What approval option applies to 330180-90-00?
The 00 suffix specifies that agency approval is not required.
4. What should a buyer match before ordering 330180-90-00?
Confirm the total probe-plus-extension-cable length, mounting requirement, power supply and any certification required by the site.
5. Is 330180-90-00 a complete measurement system?
No. A complete system also requires a compatible proximity probe and extension cable.
