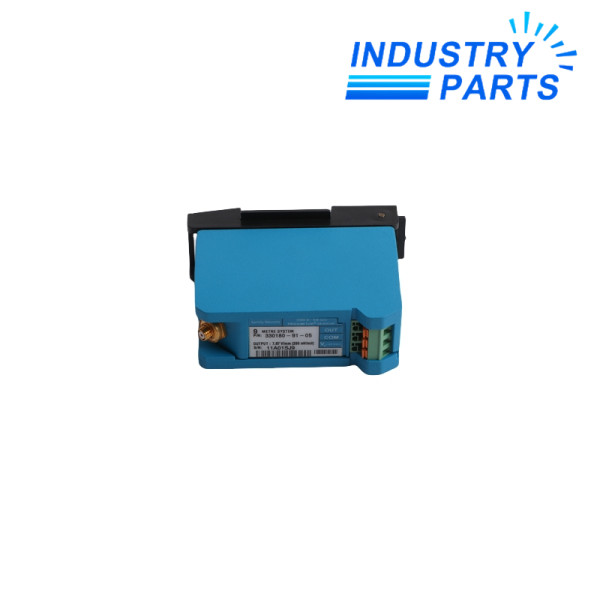

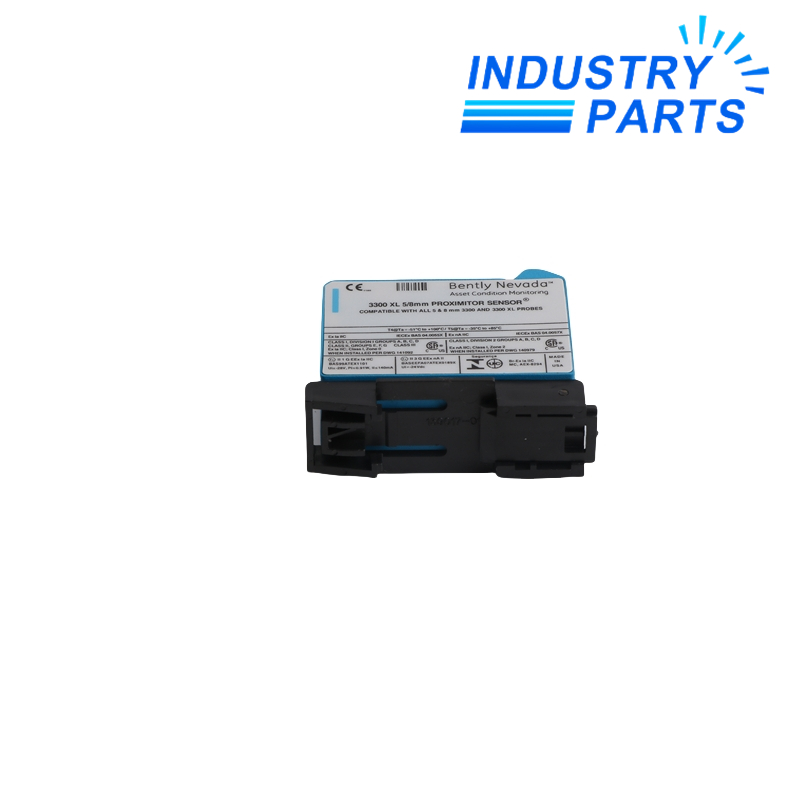

Bently Nevada 330180-91-05 Proximity Sensor

Bently Nevada 330180-91-05 Proximity Sensor

Item NO.: 330180-91-05
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameBently Nevada 330180-91-05 Proximity Sensor
  • Item NO.330180-91-05
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryTSI
  • BrandBently Nevada
  • Creation Time2025-01-01
330180-91-05 Product Page
Bently Nevada · 3300 XL 8 mm Proximity Transducer System

Bently Nevada 330180-91-05 Proximitor Sensor

The Bently Nevada 330180-91-05 is a 3300 XL Proximitor Sensor configured for a 9.0 m (29.5 ft) system length with din mount. It carries the CSA, ATEX and IECEx approval option.

Engineering Snapshot

Technical Summary

330180-91-05 is the signal-conditioning element of a compatible 3300 XL 8 mm proximity system. The ordering code identifies a 9.0 m (29.5 ft) total system length and din mount.

The approval suffix 05 is defined in the current Baker Hughes datasheet as the CSA, ATEX and IECEx approval option.

Manufacturer Data

Specifications

Manufacturer Bently Nevada
Part Number 330180-91-05
Product Family 3300 XL 8 mm Proximity Transducer System
Product Type Proximitor Sensor
System Length 9.0 m (29.5 ft)
Mounting DIN mount
Agency Approval Option CSA, ATEX, IECEx
Power Requirement -17.5 to -26 Vdc under specified installation conditions; 12 mA maximum consumption
Output Resistance 50 Ω
Linear Range 2 mm (80 mils)
Incremental Scale Factor, 9 m System 7.87 V/mm (200 mV/mil), ±6.5%
Frequency Response 0 to 10 kHz, +0 / -3 dB
Operating Temperature -52°C to +100°C
Storage Temperature -52°C to +105°C
Functional Characteristics

Features

System-Length Calibration
Configured for the 9.0 m (29.5 ft) total transducer-system length.
Mounting Format
Designed for din mount installation.
Approval Configuration
The approval suffix 05 is defined in the current Baker Hughes datasheet as the CSA, ATEX and IECEx approval option.
Engineering & Service

Installation

For 330180-91-05, the combined probe and extension-cable length must match the 9 m Proximitor Sensor system length. Follow Baker Hughes field-wiring and installation requirements, and verify the applicable approval documentation where certification is required.
Product Status

Lifecycle

The current Baker Hughes 3300 XL 8 mm datasheet continues to document the 330180 Proximitor Sensor family. No manufacturer-issued discontinuation date was identified in that current datasheet.
Buyer & Maintenance Questions

FAQ

1. What system length does 330180-91-05 use?
It is configured for a 9.0 m (29.5 ft) total transducer-system length.
2. What mounting style does 330180-91-05 use?
This variant uses din mount.
3. What approval option applies to 330180-91-05?
The approval suffix 05 is defined in the current Baker Hughes datasheet as the CSA, ATEX and IECEx approval option.
4. What should a buyer match before ordering 330180-91-05?
Confirm the total probe-plus-extension-cable length, mounting requirement, power supply and any certification required by the site.
5. Is 330180-91-05 a complete measurement system?
No. A complete system also requires a compatible proximity probe and extension cable.
