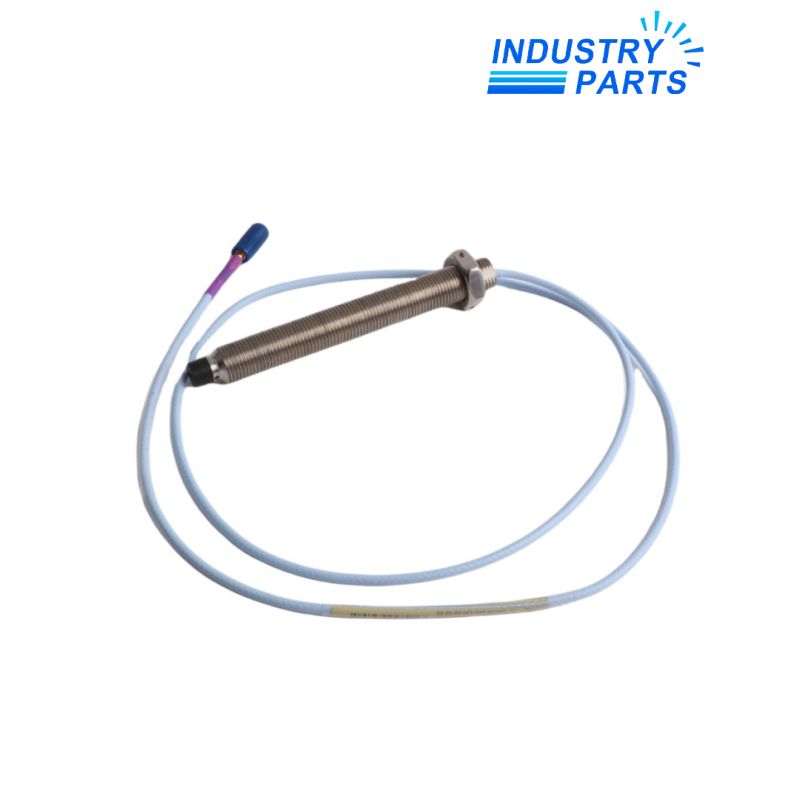

Bently Nevada 330709-000-050-10-12-05 FluidLoc M16×1.5 Proximity Probe
An unarmored M16×1.5 probe with FluidLoc cable, one-metre lead and multiple approvals.
Product Profile
330709-000-050-10-12-05 is an M16×1.5 probe for the Bently Nevada 3300 XL 11 mm system. It combines a 50 mm case and one-metre lead with the FluidLoc cable option and multiple approvals.
FluidLoc construction is selected where migration of oil or other liquids through the cable interior must be limited.
Technical Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Complete Model | 330709-000-050-10-12-05 |
| Product Family | 3300 XL 11 mm |
| Case Thread | M16×1.5 |
| Cable Armor | Without armor |
| Unthreaded Length | 0 mm |
| Overall Case Length | 50 mm |
| Total Probe Length | 1.0 m |
| Connector / Cable | Miniature ClickLoc connector, FluidLoc cable |
| Agency Approval | Multiple approvals |
| Nominal Scale Factor | 3.94 V/mm (100 mV/mil) |
| System Linear Range | 4.0 mm (160 mil) |
System Role
- FluidLoc cable helps restrict oil or liquid migration through the cable interior.
- M16×1.5 case supports the larger metric standard-mount interface.
- One-metre probe lead forms part of a calibrated five- or nine-metre chain.
- Multiple-approval option supports controlled classified-area designs.
Compatibility
- Use the matching 11 mm extension cable and 330780 Proximitor Sensor at one system length.
- Do not assume FluidLoc replaces all external sealing or process-containment requirements.
- Apply the appropriate hazardous-area drawing to the complete loop.
Applications
- Turbine or compressor position measurement where process-fluid migration is a concern.
- Long-range axial or differential-expansion monitoring with M16 mounting.
- Approved-system maintenance using the documented FluidLoc probe configuration.
FAQ
What does the 12 option mean on 330709-000-050-10-12-05?
It selects the miniature ClickLoc connector with FluidLoc cable and no connector protector.
Why choose 330709-000-050-10-12-05 instead of a standard-cable probe?
FluidLoc helps limit liquid migration through the cable interior in oil-exposed applications.
Which holder thread is required for 330709-000-050-10-12-05?
It uses M16×1.5, with a listed maximum thread engagement of 24 mm.
Can 330709-000-050-10-12-05 be mixed with standard 8 mm components?
No. Probe, extension cable and Proximitor must all belong to the 3300 XL 11 mm system.
Does the 05 code on 330709-000-050-10-12-05 approve the whole installation?
No. Barriers, wiring, electronics and installation must also follow the relevant hazardous-area drawing.
What should be checked after installing 330709-000-050-10-12-05?
Verify gap, linear response, system scale factor, connector integrity, barrier path and every configured alarm or trip.
