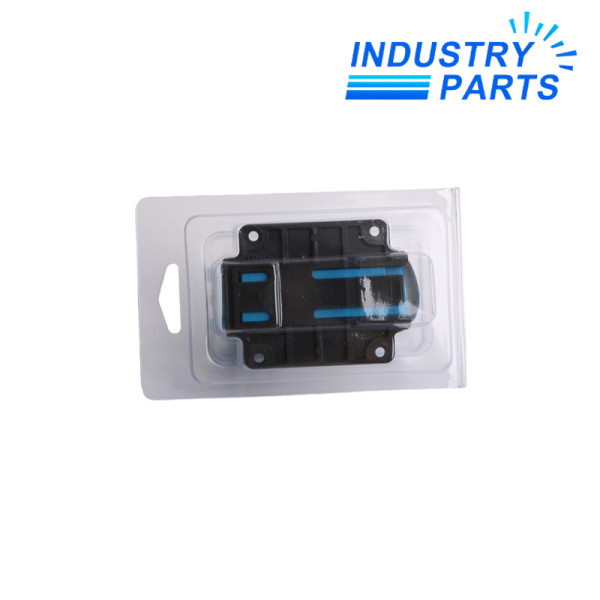

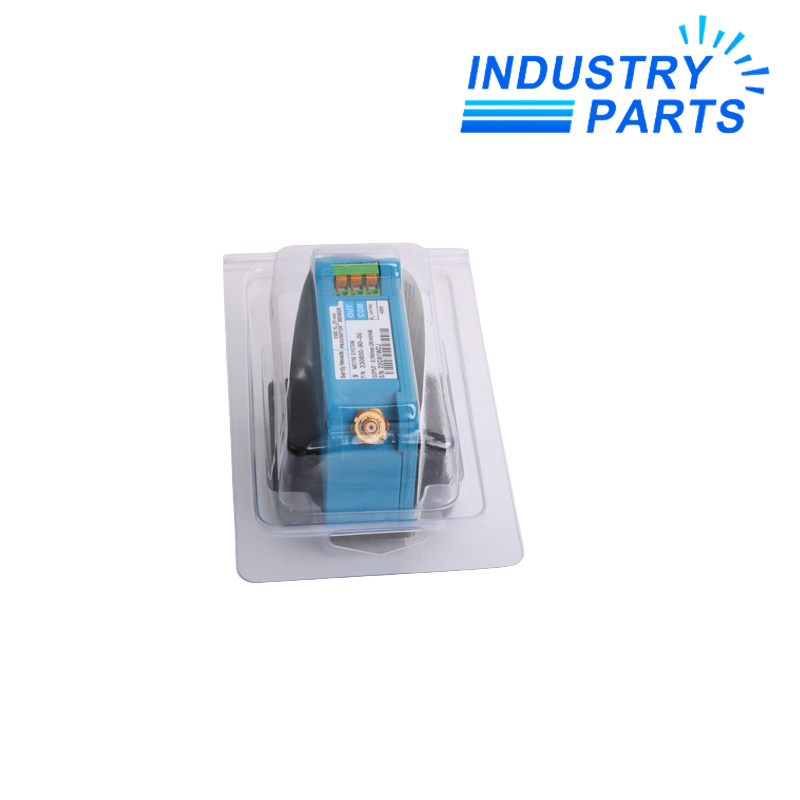

Bently Nevada 330850-90-00 Proximitor Sensor
A panel-mount 3300 XL 25 mm Proximitor Sensor for a 9.0 m system without agency approvals.
Product Identification
330850-90-00 is the panel-mounted signal conditioner for a 9.0 m 3300 XL 25 mm proximity system. Its suffix identifies the standard no-approval execution.
The exact probe and extension-cable lengths must add to 9.0 m. This calibration rule is independent of the sensor mounting style.
Engineering Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 330850-90-00 |
| Product Family | 3300 XL 25 mm Proximity Transducer System |
| Component Role | Proximitor Sensor |
| System Length | 9.0 m (29.5 ft) |
| Mounting | Panel mount |
| Agency Approval | No approvals |
| Probe Family | 3300 XL 25 mm |
| Cable-Matching Rule | Probe plus extension cable equals 9.0 m |
| Installation Context | Panel or enclosure mounting surface |
Functions
- Provides the calibrated conditioning stage for the 9.0 m 25 mm transducer chain.
- Uses panel mounting for fixed enclosure installation.
- Supports non-contact shaft position and vibration channels with the matching probe system.
Applications
- Turbine and compressor shaft monitoring
- Axial position or differential expansion channels
- Standard-area panel-mounted transducer systems
Lifecycle
- Track the probe, cable and sensor as one calibrated loop.
- Inspect panel attachment and terminal condition during outages.
- Keep static-output and channel-test results with the point history.
FAQ
How does 330850-90-00 differ from the 330850-91-00 execution?
Both are 9.0 m no-approval sensors, but 90 is panel mount and 91 is DIN mount.
Can 330850-90-00 operate with a 5.0 m transducer loop?
No. Its calibration is for a 9.0 m combination of probe and extension cable.
Is 330850-90-00 suitable for a certified hazardous-area installation?
The final 00 means no agency approvals; use the project certification requirements to choose the correct execution.
What prevents a wrong 330850-90-00 replacement?
Check mounting, total system length, approval suffix, probe family, wiring and monitor scaling before ordering.
What should be tested after fitting 330850-90-00?
Prove the complete loop, including static gap voltage, dynamic response, alarms and channel integrity.
What information should accompany a 330850-90-00 enquiry?
Provide all three transducer component numbers, cabinet mounting photographs, monitor model and site approval requirement.
