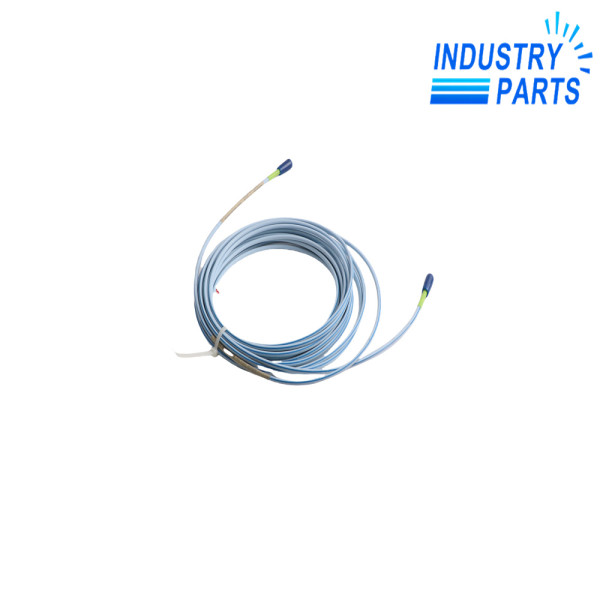

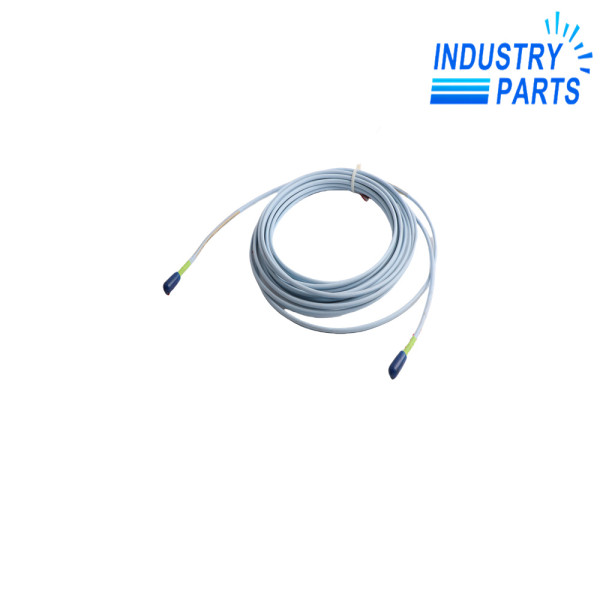

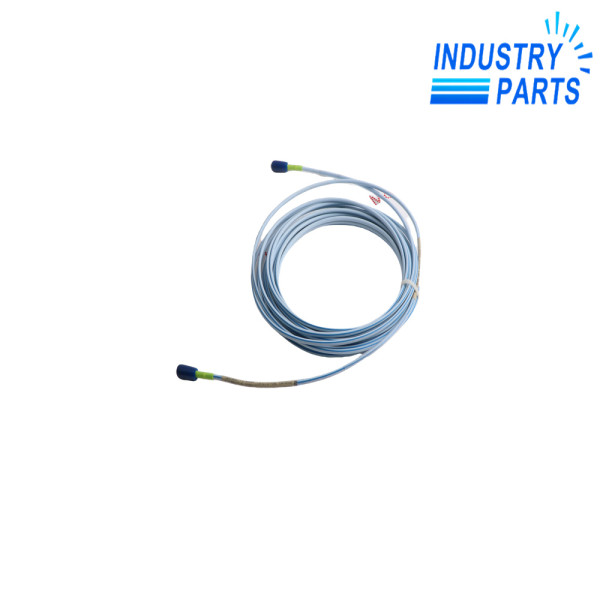

Bently Nevada 330854-080-24-05 High-Temperature Extension Cable
An 8.0 m High-Temperature FluidLoc extension cable for the 3300 XL 25 mm proximity system.
Overview
330854-080-24-05 is the complete ordering code for a high-temperature extension cable in the 3300 XL 25 mm transducer system. Each visible field identifies a defined cable or approval choice.
The cable completes the signal path between the probe and Proximitor Sensor. Its length must be combined with the probe length when selecting the calibrated sensor execution.
Specs
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 330854-080-24-05 |
| Product Family | 3300 XL 25 mm Proximity Transducer System |
| Cable Length | 8.0 m (26.2 ft) |
| Cable Execution | High-Temperature FluidLoc cable |
| Agency Approval | Multiple approvals |
| Connector Type | Miniature coaxial connectors |
| Jacket Material | PFA |
| System-Matching Rule | Probe plus extension cable equals sensor total length |
Features
- Uses a high-temperature FluidLoc cable path for the documented 25 mm system.
- Provides the extension needed between a short probe lead and remote sensor electronics.
- Keeps the signal connection within the matched transducer-system architecture.
- Carries the multiple-approval option encoded by the final field.
Applications
- Steam-turbine differential expansion measurement.
- Large-machine displacement monitoring with remote electronics.
- Certified high-temperature proximity loops.
Lifecycle
- Keep connector-protection hardware fitted until final connection.
- Route the cable away from abrasion, sharp bends and unsupported weight.
- Record all three loop component numbers in the channel database.
- Recheck the channel after any cable or connector intervention.
FAQ
Which probe-and-sensor information is needed for 330854-080-24-05?
Provide both companion part numbers and verify that probe plus cable length matches the calibrated Proximitor Sensor.
Can an armored cable replace 330854-080-24-05?
Only after the routing, connector clearances, environmental need and complete ordering code are reviewed; armor changes the physical execution.
What does the approval field mean for 330854-080-24-05 selection?
The installation documentation must require and accept the multiple-approval execution carried by this exact suffix.
How should the connectors on 330854-080-24-05 be protected?
Keep them clean, dry and capped during routing, then engage them without using the cable as a twisting handle.
What commissioning evidence is needed after fitting 330854-080-24-05?
Record loop identity, connector inspection, static output, polarity, scale and the dynamic channel test.
Can 330854-080-24-05 be ordered from an old cable photograph alone?
Use readable labels from both ends plus the complete loop and site-certification record to avoid confusing similar cable executions.
