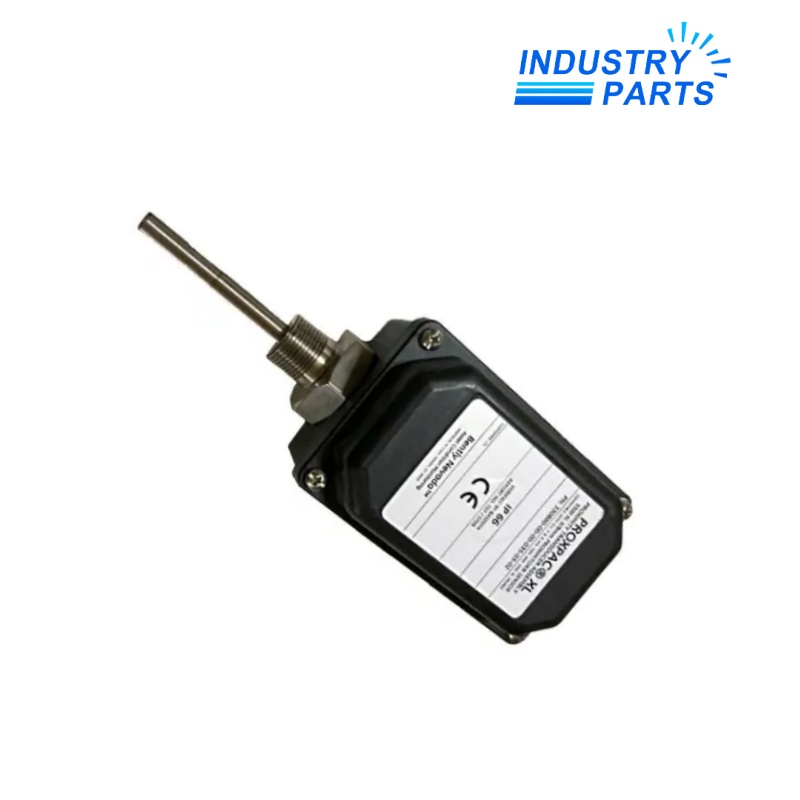

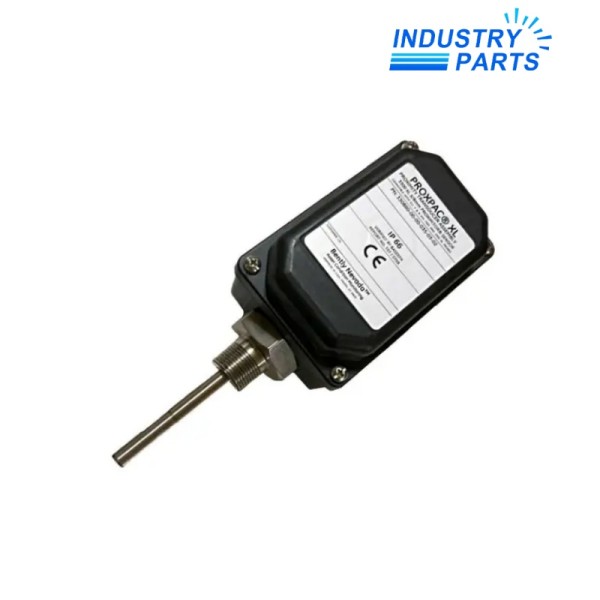

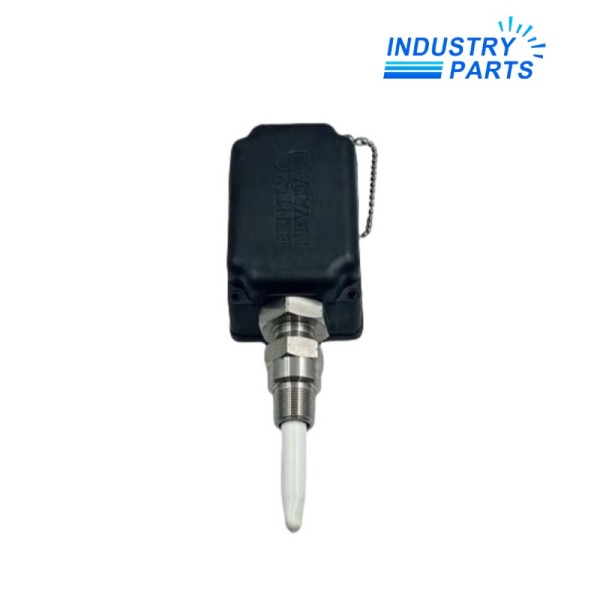

Bently Nevada 330881-16-00-200-06-02 Metric PROXPAC XL Assembly
A metric integrated proximity transducer assembly with extended case penetration for a standard 3300 XL 8 mm channel.
Product Identification
330881-16-00-200-06-02 is a metric PROXPAC XL assembly with a long insertion configuration and externally accessible housing. It combines the protected measurement-point hardware needed for a 3300 XL 8 mm probe installation.
The penetration field is a primary fit constraint. Machine-case geometry, target location and support must be verified before the assembly is treated as a replacement.
Engineering Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 330881-16-00-200-06-02 |
| Product Family | PROXPAC XL Proximity Transducer Assembly |
| Dimension Standard | Metric |
| Probe Selection | 3300 XL 8 mm probe, no approvals |
| Standoff | None |
| Case Penetration | 200 mm |
| Fitting Option | 3/4-14 NPT fitting, stainless reducer and two plugs |
| Outer Sleeve / Mount | 3/4-14 NPT |
| Service Access | External housing access |
Functions
- Extends the protected probe arrangement through deep machine-case geometry.
- Provides externally accessible adjustment and servicing.
- Integrates the metric mechanical configuration into a traceable model code.
- Protects cable and connection points at the measurement location.
Applications
- Deep-reach radial vibration points
- Large machine casing installations
- Metric measurement points with external service access
Lifecycle
- Maintain insertion and target drawings with the loop record.
- Inspect the long assembly for support, thread condition and disturbance.
- Trend gap and signal-test results after maintenance.
FAQ
What is the main fit risk with 330881-16-00-200-06-02?
The 200 mm penetration must place the probe correctly without interference, inadequate support or thread overstress.
Can 330881-16-00-200-06-02 replace a shorter PROXPAC assembly?
Not directly. Penetration changes the probe-tip location and requires a machine-drawing review.
Which measurements should accompany a 330881-16-00-200-06-02 enquiry?
Provide the case datum, target distance, thread engagement, required tip position and external service clearance.
Does 330881-16-00-200-06-02 include an approved probe execution?
The probe selection is the no-approval version; confirm site certification before use.
How should 330881-16-00-200-06-02 be supported during installation?
Follow the machine and manufacturer mounting arrangement, avoiding bending load on the long inserted assembly.
What final evidence should be recorded for 330881-16-00-200-06-02?
Retain final insertion, gap voltage, dynamic response, sealing inspection and monitor alarm-test results.
