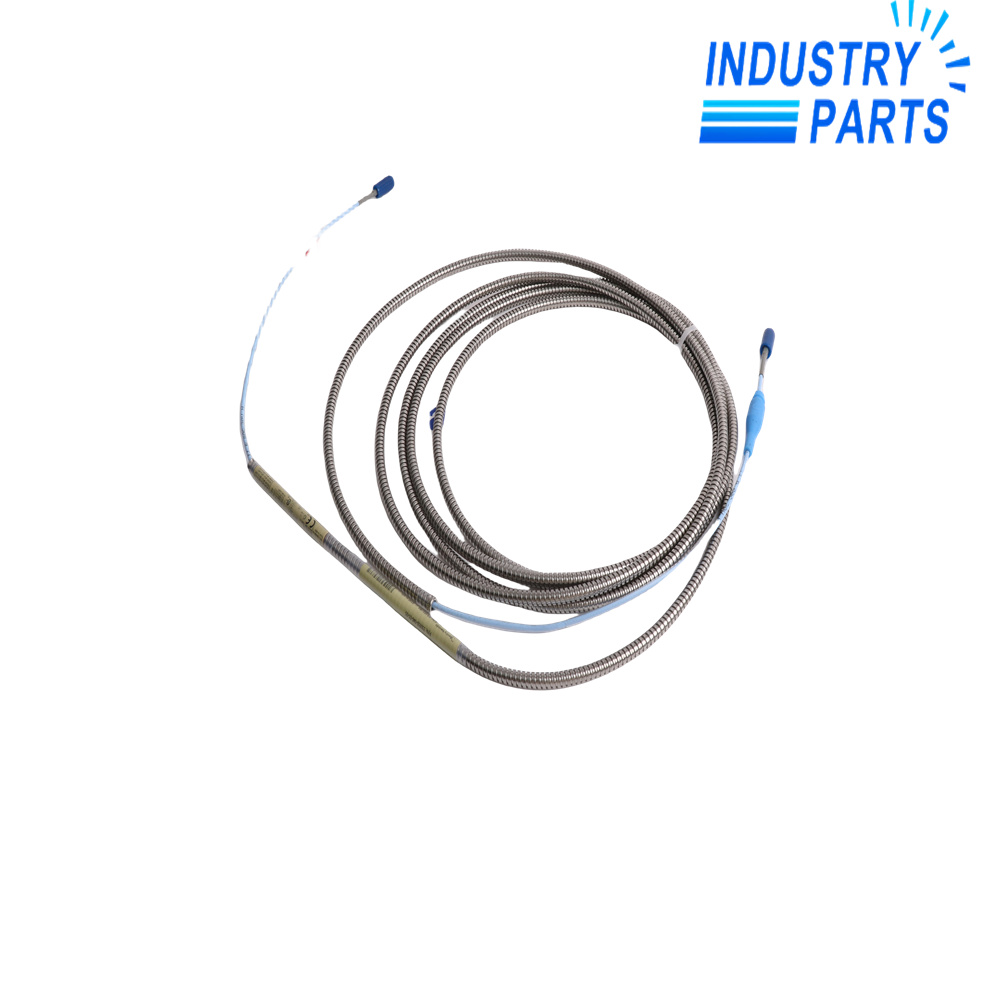

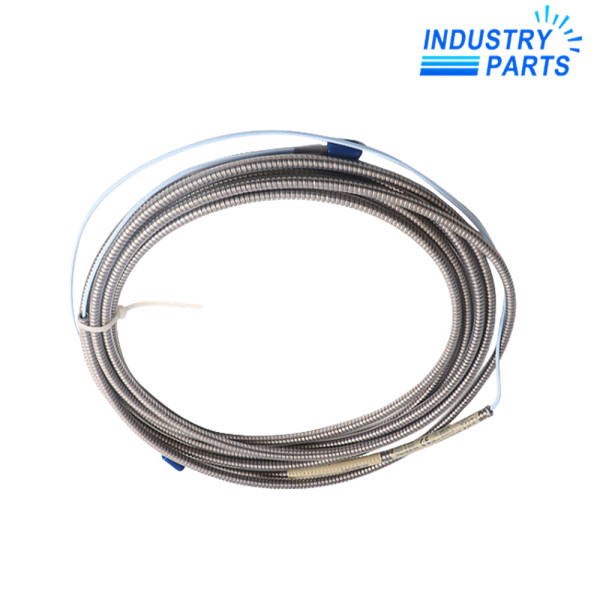

Bently Nevada| 330930-040-03-CN | 3300 XL Standard Extension Cable

Bently Nevada| 330930-040-03-CN | 3300 XL Standard Extension Cable

Item NO.: 3229518
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameBently Nevada| 330930-040-03-CN | 3300 XL Standard Extension Cable
  • Item NO.3229518
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryTSI
  • BrandBently Nevada
  • Creation Time2025-06-09
330930-040-03-CN
Bently Nevada · 3300 XL NSv · Extension Cable

Bently Nevada 330930-040-03-CN 3300 NSv Extension Cable

The Bently Nevada 330930-040-03-CN is a 4.0 m extension cable for the 3300 XL NSv Proximity Transducer System. Option 03 specifies an unarmored cable with a connector protector. The CN suffix is country-specific and should be verified against Baker Hughes approval documentation.

NSv Cable Configuration

Overview

The Bently Nevada 330930-040-03-CN belongs to the 3300 XL NSv Proximity Transducer System, consisting of an NSv probe, extension cable and 3300 XL NSv Proximitor Sensor.

The extension cable connects the probe to the Proximitor Sensor. Baker Hughes requires probe length plus extension-cable length to equal the selected Proximitor Sensor total system length.

Baker Hughes Official Data

Technical Specifications

Manufacturer Bently Nevada, a Baker Hughes company
Part Number 330930-040-03-CN
Product Family 3300 XL NSv Proximity Transducer System
Product Type 3300 NSv Extension Cable
Cable Length Option 040 4.0 m (13.1 ft)
Connector / Cable Option 03 Without stainless-steel armor, with connector protector
Extension Cable Material 75 Ω coaxial, FEP insulated
Center Conductor DC Resistance 0.220 Ω/m (0.067 Ω/ft)
Shield DC Resistance 0.066 Ω/m (0.020 Ω/ft)
Typical Capacitance 69.9 pF/m (21.3 pF/ft)
Connector Material Gold-plated brass
Maximum Rated Tensile Strength 220 N (50 lb) at probe lead-to-extension cable connectors
Operating / Storage Temperature -52°C to +177°C (-62°F to +351°F)
Typical Standard Extension Cable Weight 45 g/m (0.5 oz/ft)
Minimum Bend Radius 25.4 mm (1.0 in)
Agency Approval Suffix CN Country-specific suffix; exact approval details should be verified against Baker Hughes Approvals Quick Reference Guide 108M1756
Ordering Code Breakdown
330930 — 3300 NSv Extension Cable
040 — 4.0 m (13.1 ft)
03 — Without stainless-steel armor, with connector protector
CN — Country-specific approval suffix; verify with Baker Hughes approval documentation
Cable Characteristics

Features

4.0 m NSv Extension Cable
The 040 option provides a 4.0 m extension cable for matching with the selected NSv probe and Proximitor Sensor.
Connector Protector
Option 03 is unarmored cable supplied with a connector protector.
75 Ω FEP Coaxial Construction
Baker Hughes specifies 75 Ω coaxial cable with FEP insulation.
Gold-Plated ClickLoc Connection
NSv components use gold-plated brass ClickLoc connectors designed to lock in place.
Machinery Monitoring

Applications

Centrifugal Compressors
The NSv system is intended for machines with tight installation requirements, including centrifugal air compressors.
Refrigeration Compressors
Supports compact proximity-transducer installations on refrigeration compressor machinery.
Process Gas Compressors
Designed for process compressor applications where side-view and clearance characteristics matter.
Shaft Monitoring Systems
Connects a compatible NSv probe to the Proximitor Sensor for vibration, position, speed or phase-reference measurements.
Current Manufacturer Documentation

Lifecycle

Baker Hughes continues to document the 330930 NSv extension-cable family in the current 3300 XL NSv Datasheet 147385 Rev. R. The current standard approval table explicitly defines 00 and 05 but does not define CN, so this page does not infer a specific CN certification.
System Matching Note
The extension-cable length plus probe length must equal the Proximitor Sensor total system length. Verify the installed probe and Proximitor Sensor part numbers before replacement.
Buyer & Maintenance Questions

Frequently Asked Questions

1. What cable length does 330930-040-03-CN use?
The 040 option specifies 4.0 m (13.1 ft).
2. What does option 03 mean on 330930-040-03-CN?
It means without stainless-steel armor and with a connector protector.
3. How should 330930-040-03-CN be matched to the probe and Proximitor Sensor?
Probe length plus extension-cable length must equal the selected Proximitor Sensor total system length.
4. What does CN mean on 330930-040-03-CN?
The current general datasheet does not define CN in its standard approval table. Baker Hughes directs users to Approvals Quick Reference Guide 108M1756 for country- and product-specific approval details.
5. What should be checked before ordering 330930-040-03-CN?
Confirm cable length, connector/armor option, probe part number, Proximitor Sensor system length and the exact country-specific approval required.
3300 NSv Cable Inquiry
Need 330930-040-03-CN?
Send us the complete cable number, probe and Proximitor Sensor information for quotation and shipping support.
