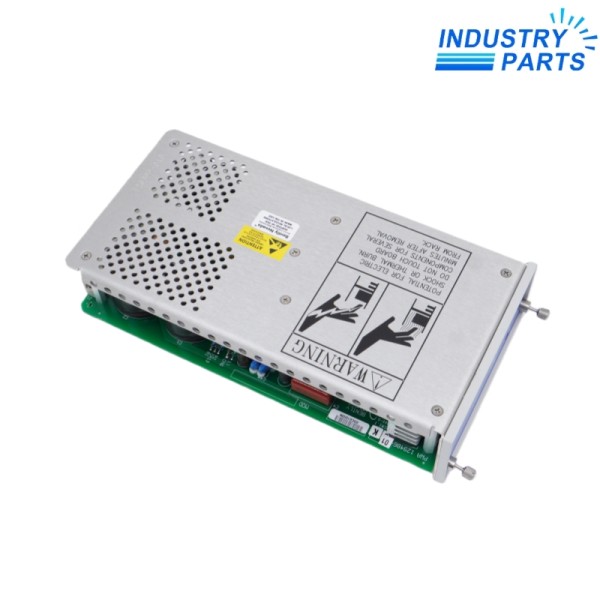

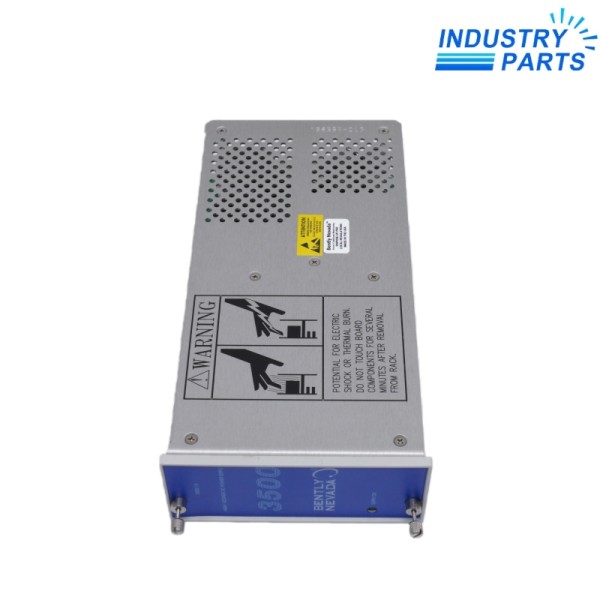

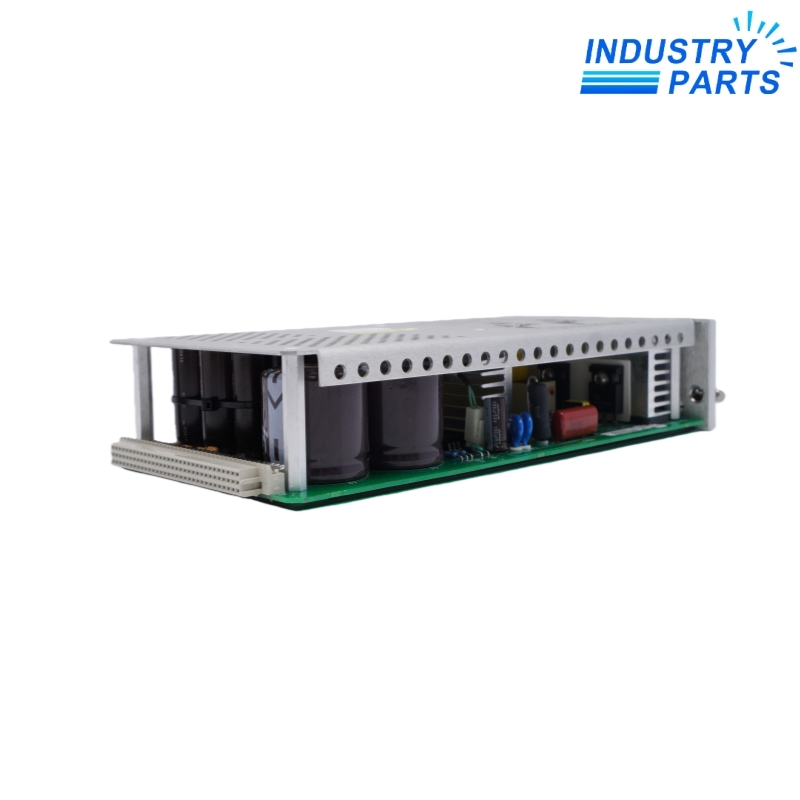

Bently Nevada 3500/15 129486-01 Module

Bently Nevada 3500/15 129486-01 Module

Item NO.: 3426782
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameBently Nevada 3500/15 129486-01 Module
  • Item NO.3426782
  • Weight1.3900 kg = 3.0644 lb = 49.0308 oz
  • CategoryTSI
  • BrandBently Nevada
  • Creation Time2025-10-31
129486-01 Product Page
Bently Nevada · 3500/15 AC and DC Power Supplies

Bently Nevada 129486-01 Legacy High Voltage DC Power Supply Module

The Bently Nevada 129486-01 is the Legacy High Voltage DC Power Supply Module listed in the current 3500/15 spare-parts documentation for installed 3500 machinery-protection racks.

Product Information

Overview

The 3500/15 power supply is a half-height module installed in a designated left-side rack position. It converts the incoming supply from the associated rear Power Input Module into the voltages required by the other 3500 modules.

For the legacy High Voltage DC architecture, the power-supply module must remain matched with the corresponding legacy High Voltage DC PIM; Baker Hughes warns that the newer DC supplies and PIMs are not compatible with the legacy DC generation.

Official Technical Data

Technical Specifications

Manufacturer Bently Nevada, a Baker Hughes company
Part Number 129486-01
Product Series 3500/15
Product Type Legacy High Voltage DC Power Supply Module
Legacy Input Architecture High Voltage DC
Legacy Input Voltage 88–140 Vdc
Rack Position One of two special half-height slots on the left side of the rack
Redundancy Two supplies may be installed; lower slot primary, upper slot backup
Operating Temperature -30°C to +65°C
Storage Temperature -40°C to +85°C
Humidity 95%, non-condensing
Functional Characteristics

Key Features

Legacy High Voltage DC Supply
Provides rack power in the earlier 3500 high-voltage DC architecture.
Redundant Operation
A second 3500/15 supply can act as backup without disrupting the rack when one supply is removed.
Half-Height Module
Fits the dedicated power-supply slots at the left side of the 3500 rack.
Matched PIM Architecture
Designed to work with the corresponding legacy High Voltage DC Power Input Module.
Typical Uses

Applications

3500 Machinery Protection
DC power conversion for installed 3500 monitoring racks.
Redundant Rack Power
Primary or backup supply in dual-supply rack configurations.
Plant Maintenance
Exact spare for legacy High Voltage DC rack power systems.
Critical Rotating Equipment
Supports monitoring racks used around turbines, compressors, pumps and other machinery.
Service & Product Status

Lifecycle

Baker Hughes continues to list 129486-01 in the current 3500/15 datasheet as the Legacy High Voltage DC Power Supply Module spare part.
Replacement / Compatibility Note
The current High Voltage DC Power Supply / PIM generation is not compatible with the legacy High Voltage DC power supply and PIM. Treat any generation change as a matched supply-and-PIM conversion.
Buyer & Maintenance Questions

Frequently Asked Questions

1. What is 129486-01?
It is the legacy High Voltage DC Power Supply Module for the Bently Nevada 3500/15 rack power system.
2. What input architecture is associated with 129486-01?
The legacy High Voltage DC architecture is documented for 88–140 Vdc input through the associated PIM.
3. Can 129486-01 be mixed with the newer High Voltage DC PIM?
No. Baker Hughes states that the newer DC supply / PIM hardware is not compatible with the legacy DC generation.
4. Can the 3500 rack operate with two power supplies?
Yes. The lower supply is primary and the upper supply can act as backup.
5. What should be confirmed before ordering 129486-01?
Verify the matching rear PIM, DC supply voltage, rack configuration and whether the installed hardware is the legacy generation.
