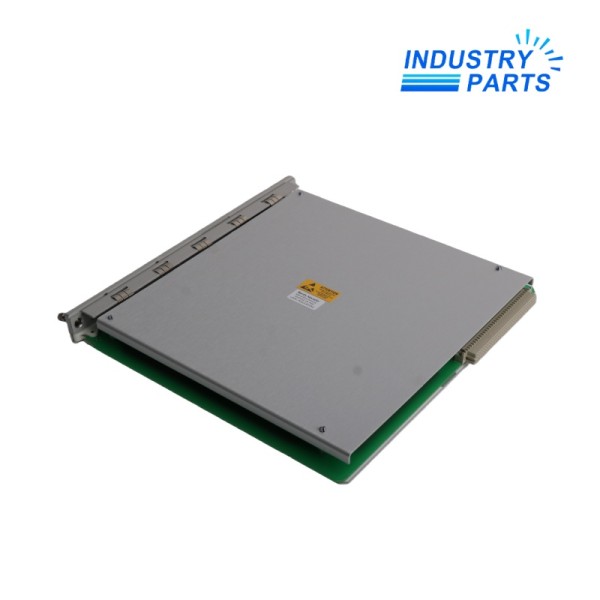

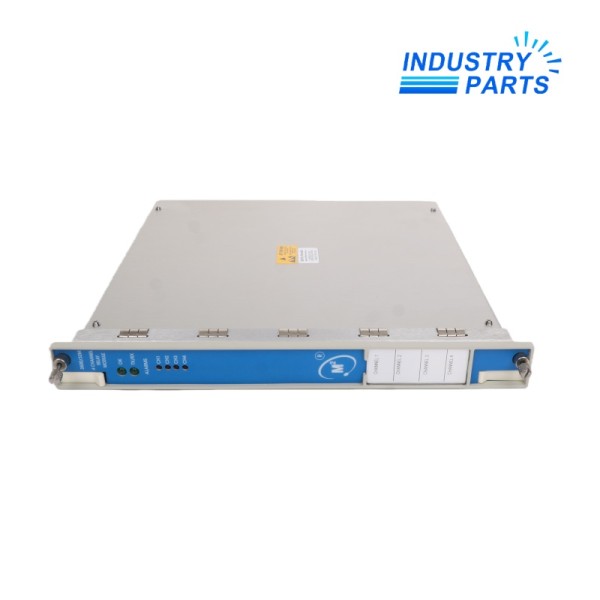

Bently Nevada 3500/32 4-Channel Relay Module

Bently Nevada

Bently Nevada 3500/32 4-Channel Relay Module.

Product Model:3500/32

Type:4-Channel Relay Module

Manufacturer:Bently Nevada

Power Consumption: 6 Watts typical

LED Indicators: OK (module functioning), TX/RX (communication), CH ALARM (relay alarm)

Relays: Two SPDT relays in DPDT configuration

Sealing: Epoxy-sealed

Arc Suppressor: 250 Vrms standard

Contact Life: 100,000 cycles @ 5 A, 24 Vdc / 120 Vac

Operation: Channels switchable for Normally De-energized or Normally Energized

Operating Temperature: -30°C to +65°C (-22°F to +150°F)

Storage Temperature: -40°C to +85°C (-40°F to +185°F)

Humidity: 95%, non-condensing

The 4-Channel Relay Module is a full-height module that provides four relay outputs. Any number of 4-Channel

Relay Modules can be placed in any of the slots to the right of the Rack Interface Module. Each output of the 4

Channel Relay Module can be independently programmed to perform needed voting logic.

Each relay utilized on the 4-Channel Relay Module includes "Alarm Drive Logic". The Alarm Drive Logic is

programmed using AND and OR logic, and can utilize alarming inputs (alerts and dangers) from any monitor

channel or any combination of monitor channels in the rack. This Alarm Drive Logic is programmed using the

3500 Rack Configuration Software to meet the specific needs of the application.
