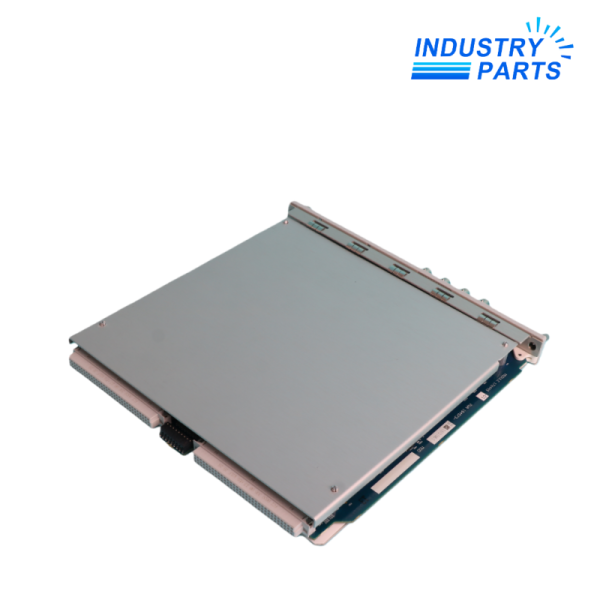

Bently Nevada 3500/32M 149986-02 Spare 4-Channel Relay Control Module
A full-height front control module providing 4 independently programmable relay channels in the 3500/32M 4-Channel Relay Module platform.
Key Information
3500/32M 149986-02 is the Bently Nevada spare 4-channel relay control module for the 3500/32M 4-Channel Relay Module. It serves as the full-height front control module in the relay assembly.
Front control module with OK, TX/RX and channel alarm indication. The complete part number must be matched with the correct companion module, channel configuration and field-wiring duty.
Functions
- Supports 4 independently programmable relay channels.
- Alarm Drive Logic with AND/OR voting using rack monitor conditions.
- Uses controls single-pole double-throw (spdt) relay outputs.
- Fits the documented full-height front control module position in a 3500 rack.
- Maintains the relay assembly’s exact control/output-module pairing.
Specifications
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Part Number | 3500/32M 149986-02 |
| Product Family | 3500/32M 4-Channel Relay Module |
| Exact Product Type | Spare 4-Channel Relay Control Module |
| Assembly Position | full-height front control module |
| Channels | 4 independently programmable relay channels |
| Power | 5.8 W typical |
| Relay Architecture | Controls single-pole double-throw (SPDT) relay outputs |
| Operation | Alarm Drive Logic with AND/OR voting using rack monitor conditions |
| Operating Temperature | -30 to +65 °C |
| Storage Temperature | -40 to +85 °C |
| Humidity | 95%, non-condensing |
| Integration | Requires 3500/22 TDI and 3500 Rack Configuration software 4.5 or later |
Installation
- Install 3500/32M 149986-02 only in the documented full-height front control module position.
- De-energize field circuits and the rack before handling relay hardware.
- Confirm contact voltage, current, load type and normally energized/de-energized selection.
- Match the companion control or output module and retain the existing channel map.
- Verify configuration, alarm voting and relay action before returning protection outputs to service.
Lifecycle
- Keep the complete 3500/32M 149986-02 identity with rack maintenance records.
- Requires 3500/22 TDI and 3500 Rack Configuration software 4.5 or later.
- Record contact loading, field wiring, channel logic and companion-module part number.
- Do not substitute a standard, failsafe, low-current or safety variant without checking the exact service conditions.
FAQ
What role does 3500/32M 149986-02 perform?
3500/32M 149986-02 is the front 4-channel relay control module for the 3500/32M assembly.
How many relay channels can 3500/32M 149986-02 control?
3500/32M 149986-02 controls four independently programmable relay outputs.
Which logic can be programmed in 3500/32M 149986-02?
3500/32M 149986-02 supports Alarm Drive Logic using AND and OR combinations of rack alarm and monitor conditions.
Which TDI and configuration software support 3500/32M 149986-02?
3500/32M 149986-02 requires the 3500/22 TDI and 3500 Rack Configuration software version 4.5 or later.
What is the installed size of 3500/32M 149986-02?
3500/32M 149986-02 occupies one full-height front slot, measures 241 × 24.4 × 242 mm and weighs 0.7 kg.
