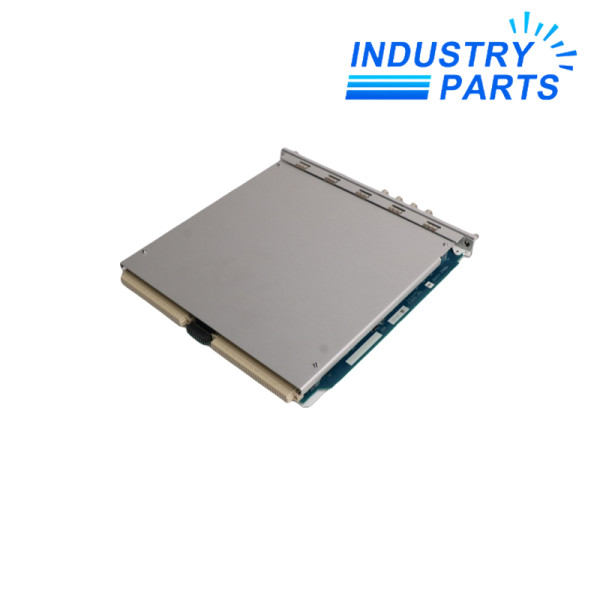

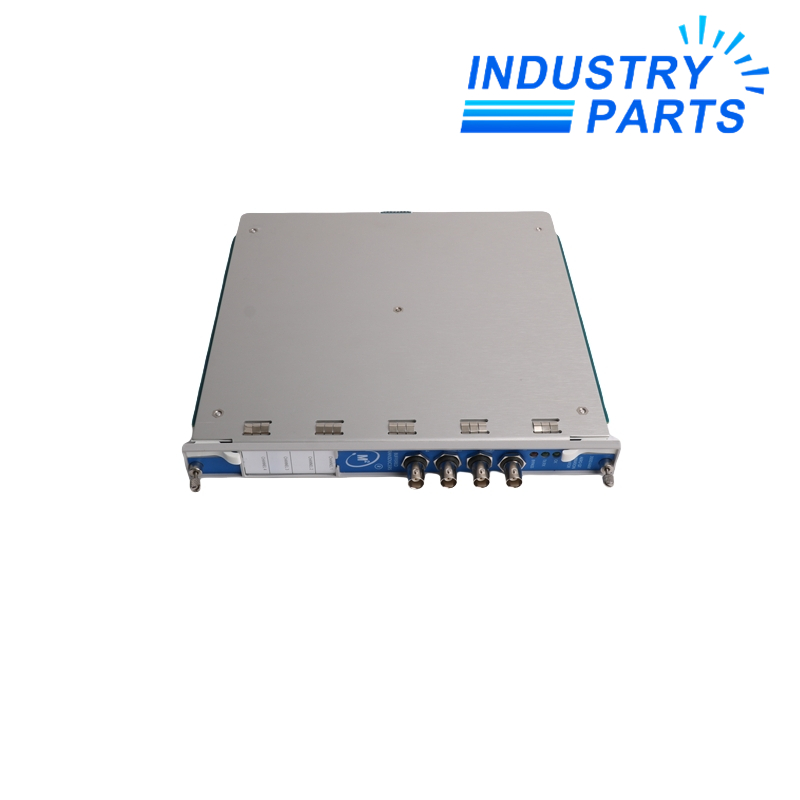

Bently Nevada 3500/44M Aeroderivative GT Vibration Monitor
A four-channel 3500 monitor for aeroderivative gas-turbine vibration applications with configurable signal integration, tracking and band-pass filtering.
Product Identification
3500/44M is the Bently Nevada aeroderivative GT vibration monitor for the 3500 machinery protection system. It continuously compares configured measurements with alarm setpoints and communicates machine information to operations and maintenance users.
The monitor accepts up to four signals through supported Aero GT, Prox/Velom or multimode I/O arrangements. Two Keyphasor signals may be used so each channel pair can follow a different tracking filter.
The ordering code, selected I/O type and hazardous-area option must remain together because the monitor supports several distinct rear-I/O arrangements.
Engineering Data
- Product type
- 3500/44M Aeroderivative GT Vibration Monitor
- Input channels
- 1 to 4
- Supported sensor paths
- Interface modules, Velomitors and accelerometers through the selected I/O
- Typical power consumption
- 7.7 W
- Keyphasor inputs
- Two; one selectable reference for each channel pair
- Configurable filtering
- Signal integration, 1X tracking and band-pass vibration
- Recorder outputs
- 4–20 mA, one per channel
- Recorder load
- 0 to 600 Ω
- Recorder update
- 100 ms or less
- Buffered output impedance
- 550 Ω
- Rack position
- One full-height front slot plus corresponding rear I/O slot
Functions
Monitor aeroderivative vibration
Processes four supported vibration channels for machinery condition and alarm evaluation.
Track operating speed
Uses separate Keyphasor references so the two channel pairs may follow different tracking filters.
Adapt to machine modes
Multimode I/O can select among multiple alarm-parameter sets for defined operating conditions.
Applications
Aeroderivative gas turbines
Use the approved sensor and interface-module arrangement for the installed engine package.
Tracked vibration measurements
Retain normal-speed and bandwidth selections used by the 1X tracking configuration.
Multimode protection
Document every alarm set and the contact or gateway command that selects it.
Lifecycle
Record
Capture 3500/44M, front monitor part, rear I/O type, sensors, Keyphasor sources and alarm sets.
Match
Confirm the exact internal or external termination option and hazardous-area approval.
Exchange
Preserve channel pairs, sensor power, buffered outputs and recorder wiring under the approved procedure.
Validate
Prove channel readings, filters, alarms, mode selection and Keyphasor tracking before return to service.
