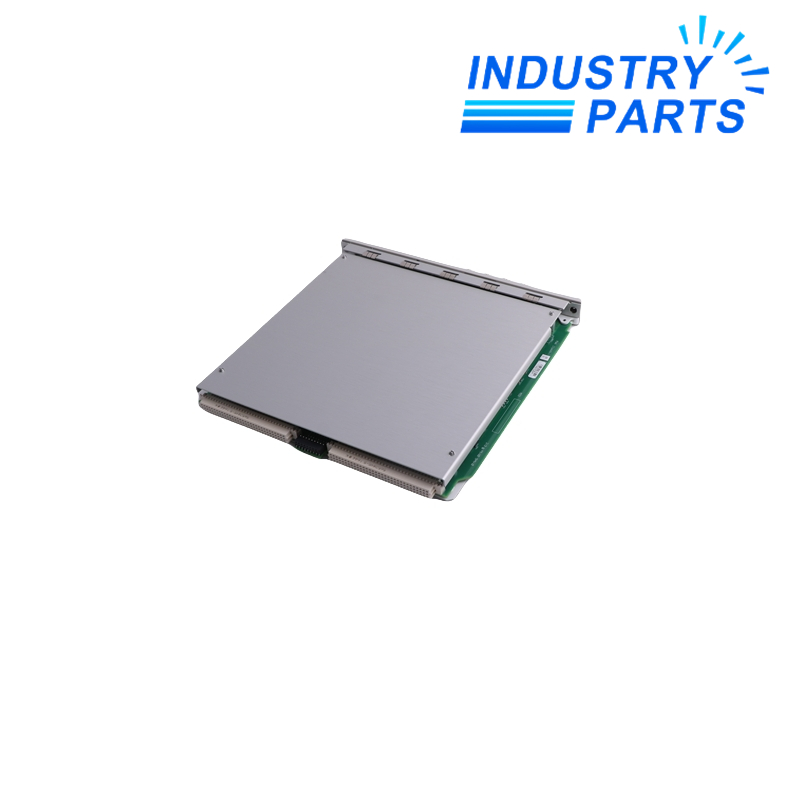

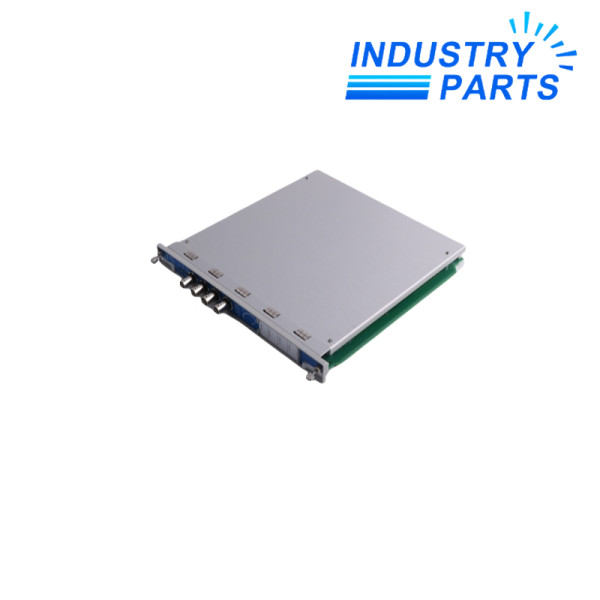

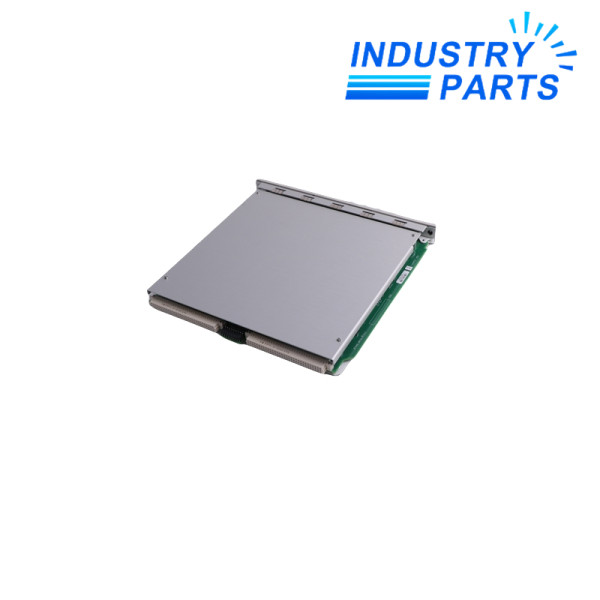

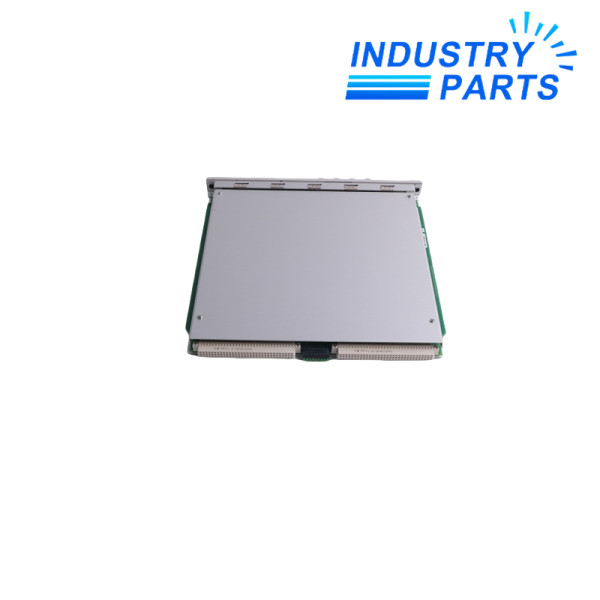

Bently Nevada 3500/46M Hydro Monitor
A four-channel machinery-protection monitor designed for hydroelectric measurement functions and multimode operating conditions.
Overview
3500/46M is a specialized Bently Nevada monitor for hydro machinery. It conditions compatible vibration, position, air-gap and dynamic signals, compares them with programmed alarms, and communicates status through the 3500 rack.
Its multimode capability lets one installation use different alarm and setpoint groups when machine operating conditions change.
Specs
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 3500/46M |
| Product Family | 3500 Machinery Protection System |
| Monitor Type | Hydro Monitor |
| Input Capacity | One to four compatible sensor signals |
| Accepted Signal Families | Proximity, air gap, velocity and acceleration |
| Typical Power Consumption | 7.7 W |
| Recorder Outputs | Four 4–20 mA outputs |
| Buffered Outputs | One front-panel output per channel; 550 Ω output impedance |
| Rack Position | One full-height front slot with matching rear I/O slot |
Features
- Selectable hydro measurement functions for radial vibration, thrust, stator behavior, air gap and dynamic pressure applications.
- Channel processing for alarm comparison and plant communication.
- Multiple operating modes with separate alarm or setpoint arrangements.
- Front-panel buffered outputs that support maintenance analysis without disturbing field wiring.
Applications
- Hydroelectric generators that require machine protection across changing speed or load conditions.
- Turbine-generator monitoring using a documented mixture of displacement, velocity or acceleration signals.
- Retrofit work in an existing 3500 rack where front monitor, rear I/O and sensor chain are surveyed together.
Lifecycle
- Identify the installed rear I/O module and each transducer before selecting a spare.
- Back up channel functions, mode logic, alert/danger settings and plant communications.
- Confirm whether mode changes are driven by rack contacts or by a software gateway.
- After installation, validate every channel and each operating mode under the approved commissioning procedure.
FAQ
Which rear I/O module should be ordered with 3500/46M?
Choose it from the actual sensor mix and termination method; the front monitor alone does not define the correct rear module.
How are multiple operating modes applied on 3500/46M?
Mode selection can be implemented through configured hardware contacts or a supported software gateway, depending on the rack design.
Can 3500/46M use external terminal blocks with internal I/O?
No. External blocks and cables require the corresponding external-termination I/O arrangement.
What configuration records are essential before replacing 3500/46M?
Save channel functions, sensor scaling, mode logic, alarm setpoints, delays and communication settings.
Can one 3500/46M channel accept any sensor without changes?
No. The sensor, rear I/O and programmed measurement function must form a documented compatible chain.
What commissioning scope is appropriate for 3500/46M?
Test signal polarity and scaling, alarm voting, buffered outputs, recorder outputs, mode transitions and rack communications.
