Bently Nevada 3500/54M 286566-01 3500 Rack Speed-Monitoring Module Assembly
A submitted 3500/54M assembly identity whose complete model and 286566-01 part marking must remain tied to the installed rack record.
Technical Summary
PRODUCT CONTEXT3500/54M 286566-01 is retained as one complete Bently Nevada 3500 rack-module identity. The modular 3500 architecture places monitor modules and their associated I/O hardware in matched front and rear positions.
The exact 3500/54M and 286566-01 pairing does not expose a separate configuration table in the available product record; therefore no channel count, trip logic or electrical value is inferred from nearby 3500/50M or 3500/44M products. The installed label, rack configuration and approved site manual remain the controlling engineering evidence.
Specifications
CONTROLLED DATABently Nevada
3500/54M
286566-01
3500 Machinery Protection System
Rack-mounted monitor assembly
Front monitor position with associated rear I/O position
Installed rack configuration and approved service documentation
Do not transfer parameters from 3500/50M, 3500/44M or other 3500 monitor families
Features
FUNCTIONAL DISTINCTIONSComplete identity retained
The family designation and part number stay together throughout quotation and receiving.
Rack context controlled
Slot, paired rear I/O and rack configuration are treated as part of the item record.
No adjacent-model inference
Unconfirmed electrical or channel data is deliberately excluded from the page.
Service evidence first
Label photographs and the approved site manual control the replacement decision.
Compatibility
SELECTION BOUNDARIESRack position
Record the exact front slot and associated rear I/O position before any disturbance.
Configuration file
Archive the 3500 rack configuration and firmware information used at the site.
Mating hardware
Confirm the rear I/O part number, connectors, transducer wiring and any barrier arrangement.
Replacement
SERVICE WORKFLOWIdentify

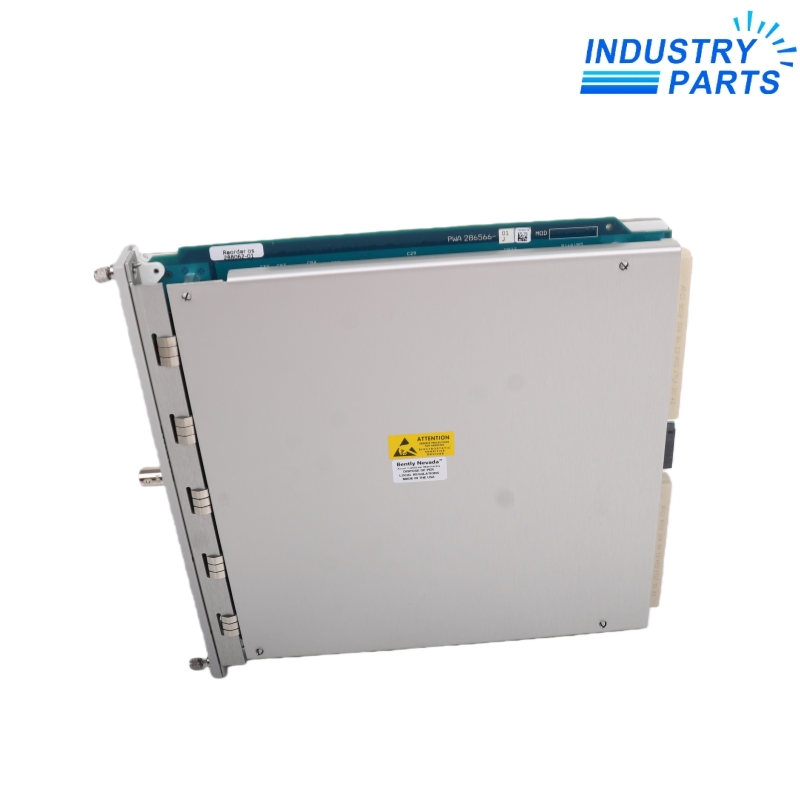

Photograph the complete 3500/54M 286566-01 label, rear I/O label, rack slot and terminal arrangement.
Review
Compare the spare against the approved site documentation without borrowing data from another 3500 monitor.
Prove
Use the site acceptance procedure to confirm diagnostics, signal behavior and the intended protective response.
FAQ
CUSTOMER DECISION SUPPORTWhy is the full 3500/54M 286566-01 identity shown together?
The 3500 family designation and 286566-01 marking define the submitted spare record and must not be separated.
Can 3500/50M technical values be used for 3500/54M 286566-01?
No. Similar rack appearance does not establish the same channel, alarm or electrical characteristics.
What evidence should accompany a 3500/54M 286566-01 quotation?
Send front and rear labels, rack slot, I/O part number, configuration backup and the applicable site manual reference.
Why is the associated rear I/O important for 3500/54M 286566-01?
The 3500 rack architecture pairs a front monitor position with a corresponding I/O position and field wiring.
What proves 3500/54M 286566-01 is ready after service?
Only the approved site test should confirm module diagnostics, signal response and the intended machine-protection behavior.
About IndustryParts
https://www.industryparts.com/Controlled handling for 3500/54M 286566-01
IndustryParts keeps the submitted 3500/54M 286566-01 identity, requested quantity and installed-system evidence together so a proposed supply can be checked before dispatch.
- Complete submitted model retained
- Installed-system evidence reviewed
- Quotation record kept with the enquiry
