Conditions six RTD or thermocouple temperature inputs for the 3500 rack.
Product Identification

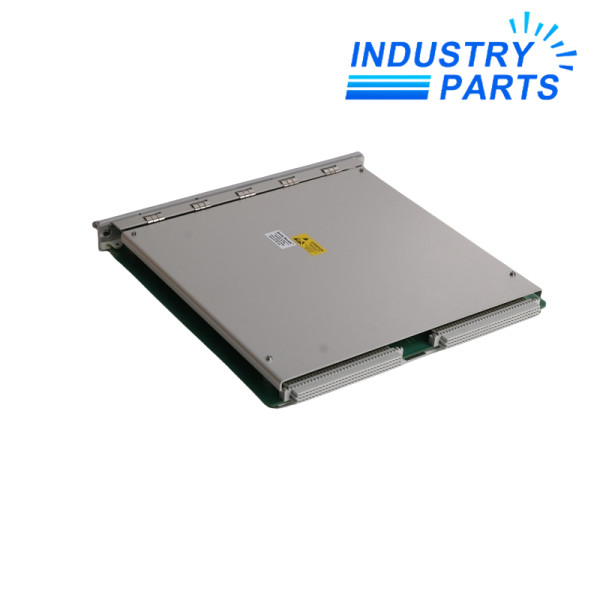

3500/61 163179-02 is the Bently Nevada 3500/61 Temperature Monitor with recorder outputs. It accepts six temperature channels through a matched RTD/thermocouple I/O module.
The front monitor, rear I/O type, sensor configuration, alarm setpoints and recorder-output termination must be captured as one installed system.
Engineering Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Exact model | 3500/61 163179-02 |
| Product family | 3500 Machinery Protection System |
| Product type | Temperature monitor with recorder outputs |
| Input channels | 6 |
| Supported sensor families | RTD and thermocouple through selected I/O |
| Recorder outputs | Provided by the 3500/61 execution |
| Compatible non-isolated internal I/O | 133819-02 |
| Compatible non-isolated external I/O | 133827-02 |
| Compatible isolated TC internal I/O | 133835-02 |
| Compatible isolated TC external I/O | 133843-02 |
| Internal-barrier I/O | 136711-02 |
| Recorder termination choices | 133892-01 terminal strip or 133900-01 Euro-style |
Functions
Provides configurable alert and danger alarming for temperature channels.
Supplies recorder-output paths when the matched termination hardware is installed.
Reports channel and module status to the 3500 rack system.
Applications
- Bearing, winding, process and equipment temperature monitoring in a 3500 rack.
- Maintenance replacement where the original six-channel sensor map is preserved.
- Recorder or control-system temperature retransmission through the documented output hardware.
- Machine-protection integration using approved RTD or thermocouple I/O variants.
Lifecycle
- Back up the 3500 configuration, sensor types, linearization, ranges and alarm setpoints before replacement.
- Record the exact rear I/O and recorder-output termination part numbers.
- Check sensor polarity, extension cable, cold-junction arrangement and grounding before condemning a channel.
- After installation, inject or simulate representative temperatures and verify alarms and recorder outputs.
About IndustryParts
https://www.industryparts.com/Temperature-monitor enquiries include every rear-I/O choice
IndustryParts prepares 3500/61 163179-02 requests with the sensor map, rear I/O and recorder termination clearly identified.
- Six channels mapped
- Rear I/O part recorded
- Recorder path verified
FAQ
What rear-module evidence is needed for 3500/61 163179-02?
Provide the exact I/O part number, termination style, sensor type for every channel and recorder-output hardware.
Can 3500/61 163179-02 use any 3500/60 rear I/O?
No. Use the specifically listed 3500/61 I/O executions ending in -02 and the approved configuration.
What should be preserved before changing 3500/61 163179-02?
Back up channel types, ranges, alarm setpoints, voting or relay relationships and recorder scaling.
How should a drifting temperature channel be investigated?
Check the sensor, extension wiring, junctions, cold-junction compensation, grounding and configured sensor type before replacing the monitor.
What acceptance testing is appropriate after replacement?
Simulate representative temperatures, confirm channel accuracy, alarms, rack status and every used recorder output.
