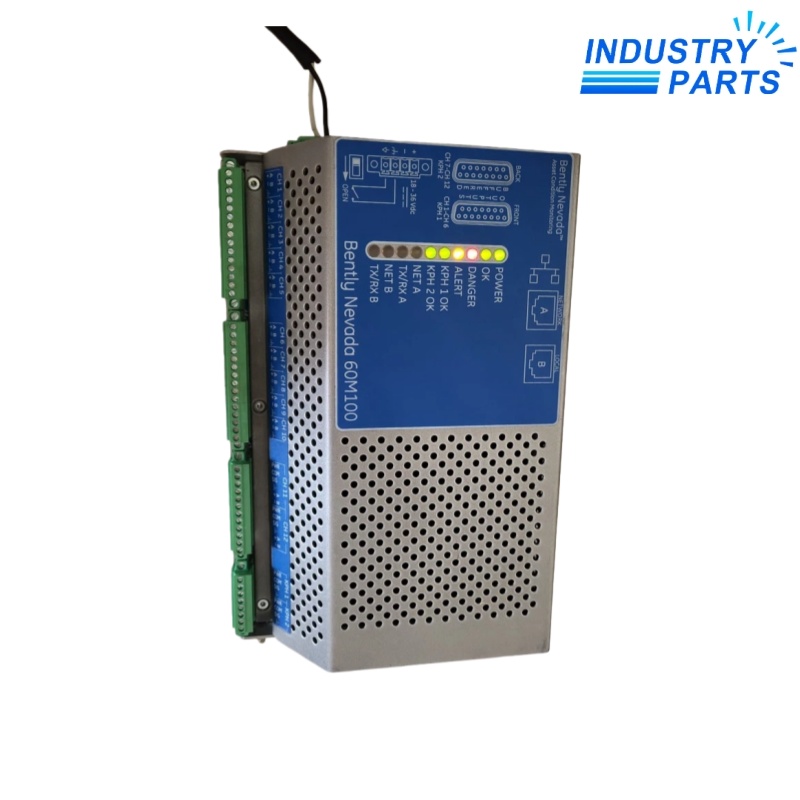

Bently Nevada 60M100 Wind Turbine Monitoring System
A permanent condition-monitoring platform for the main rotor, gearbox, generator and other critical wind-turbine machine-train components.
Key Information
60M100 is a Bently Nevada condition-monitoring system developed for wind-turbine generator trains. It supports vibration and process-related monitoring across the main bearing, gearbox, generator and associated rotating components.
The unit combines dynamic acquisition, Keyphasor inputs, local processing and network communication for condition-based maintenance. It is not a replacement for the turbine hardwired safety system.
Functions
- Acquires as many as twelve dynamic measurement channels for turbine machine-train monitoring.
- Accepts two Keyphasor signals for speed and phase reference.
- Processes static variables and dynamic waveforms for condition assessment.
- Exchanges data through dual Ethernet interfaces and Modbus/TCP communication.
- Works with the specified Adapt.wind software environment for monitoring and analysis.
Specifications
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 60M100 |
| Application | Wind turbine generator condition monitoring |
| Dynamic Inputs | Up to 12 |
| Keyphasor Inputs | 2 |
| Channels 1 to 10 | Two-wire ICP accelerometers |
| Channels 11 to 12 | Two-wire ICP or three-wire proximity probes |
| Analog Conversion | 24 bit |
| Dynamic Bandwidth | Up to 40 kHz |
| Static Variables | Up to 150 |
| Power Input | 18 to 36 VDC |
| Maximum Supply Current | 1.7 A |
| Ethernet | Two 10/100 ports |
| Protocol | Modbus/TCP client and server |
| Software Environment | Adapt.wind 1.9 or later |
Installation
- Define each turbine measurement point, sensor orientation, sensitivity and cable route before hardware installation.
- Separate sensor wiring from converter and generator power conductors, and apply the intended grounding scheme consistently.
- Configure the two Ethernet ports for their assigned service and plant-network roles.
- Validate speed reference, channel polarity, alarm logic, data transfer and baseline waveforms across the operating envelope.
Lifecycle
- Maintain current channel maps, sensor records, network settings and software backups for each turbine.
- Trend sensor bias and data quality so cable or transducer deterioration is identified before measurements are lost.
- Preserve representative baseline data after gearbox, generator or main-bearing work.
FAQ
How many dynamic channels can 60M100 monitor?
The platform supports up to twelve dynamic inputs, with sensor types allocated by channel group.
Which channels on 60M100 can accept proximity probes?
Channels 11 and 12 can be configured for compatible three-wire proximity probes or two-wire ICP sensors.
Can 60M100 replace the turbine safety and trip system?
No. It is a condition-monitoring platform and should not be treated as the sole hardwired protection or operational-control system.
What network planning is needed for 60M100?
Define the two Ethernet roles, IP scheme, switch path, Modbus/TCP clients, remote access policy and cybersecurity controls.
What turbine information helps configure 60M100?
Provide drivetrain layout, bearing and gear details, speed ranges, sensor locations, gearbox tooth counts and operating states.
What should be checked after commissioning 60M100?
Review sensor bias, waveform quality, Keyphasor stability, alarm behavior, data transfer and baseline condition signatures.
