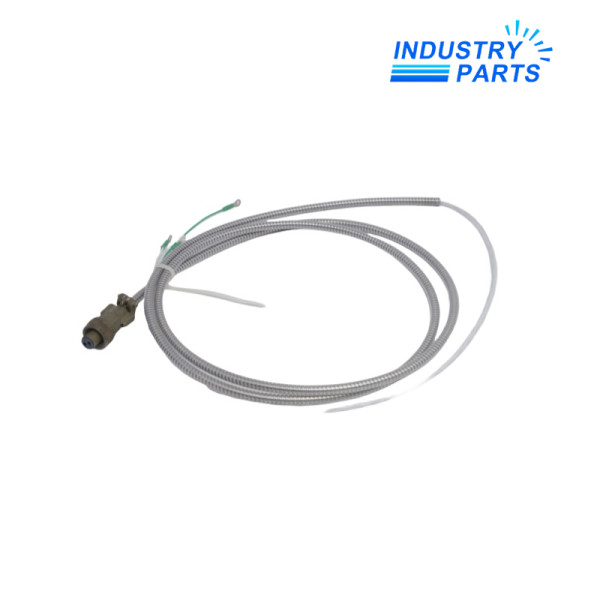

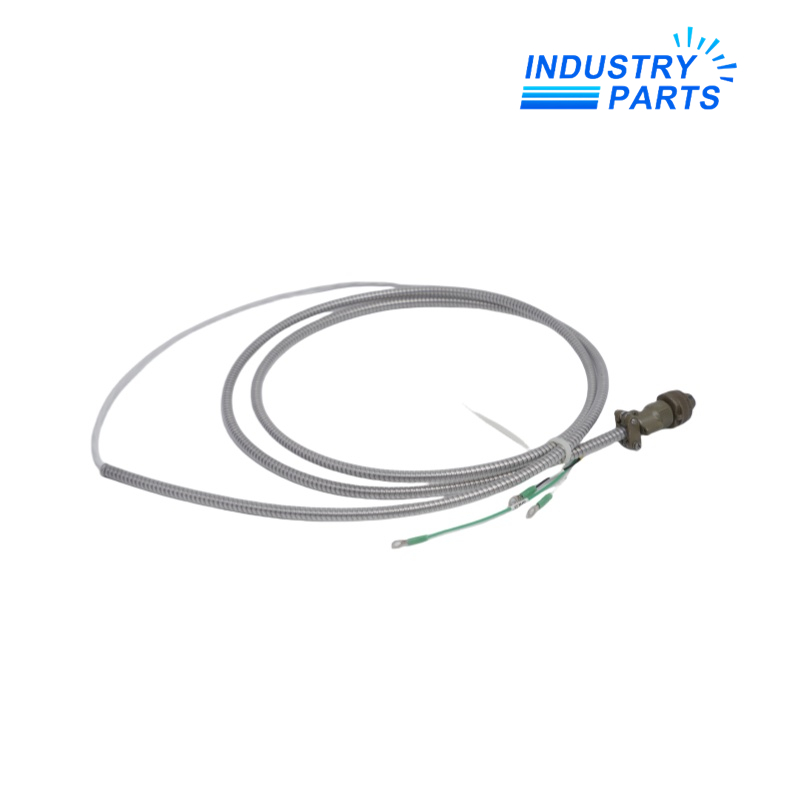

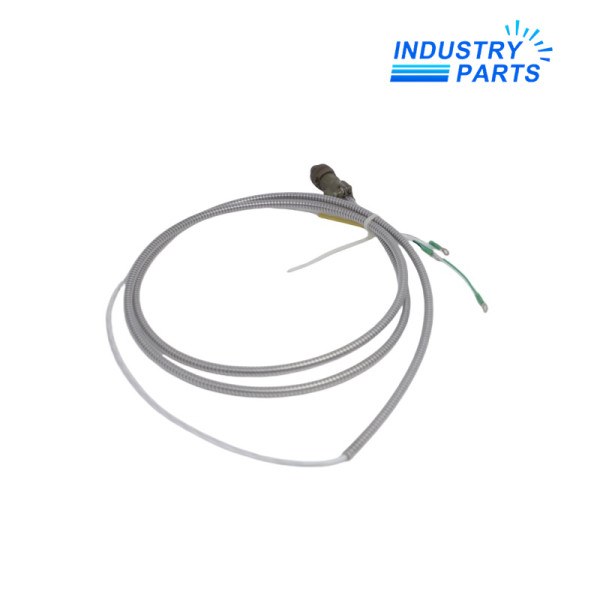

84661-08 is the eight-foot execution of the Bently Nevada 84661 armored interconnection-cable family. It connects compatible 9200 and 74712 Seismoprobe velocity transducers to monitors or vibration data collectors.

The cable uses a two-socket moisture-resistant female connector at the sensor end and terminal lugs at the instrument end. Stainless-steel armor adds mechanical protection, but the electrical termination, shield practice and transducer connector must still match the installed channel.

• Carries the two-wire velocity-transducer signal to a monitor or diagnostic instrument.
• Provides a shielded twisted pair to reduce interference pickup on the measurement circuit.
• Adds external armor for routes exposed to mechanical damage.
• Uses a moisture-resistant sensor connector for compatible 9200 and 74712 transducers.
• Terminates in lugs for instrument-panel or monitor connections rather than a second sensor connector.

• Confirm the Seismoprobe connector and monitor termination drawing before removing the installed cable.
• Document shield grounding and avoid creating a second ground path during replacement.
• Support the armor independently at entries so its weight does not load the sensor connector.
• Keep the cable away from hot surfaces beyond its temperature rating and from high-noise power conductors.
• After installation, verify polarity, continuity, baseline amplitude and phase with the machine in a known condition.

• Permanent wiring from a 9200 or 74712 sensor to a vibration monitor.
• Protected field routes where an armored cable is required.
• Connection to portable or diagnostic equipment that accepts the terminal-lug interface through the intended wiring arrangement.
