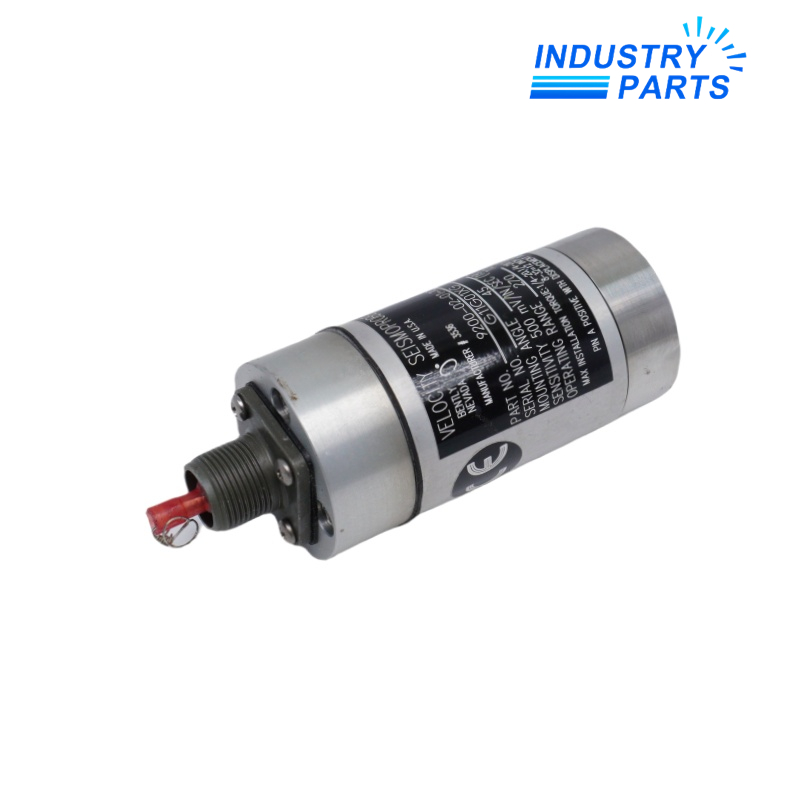

Bently Nevada 9200-03-02-10-00 Side-Mount Seismoprobe Velocity Transducer
A two-wire 9200 velocity transducer calibrated for 90-degree orientation, side-mount connection and an M10x1 circular base.
Product Overview
9200-03-02-10-00 is a moving-coil Seismoprobe for absolute bearing-housing, casing or structural vibration measurement.
The 03 mounting-angle option specifies 90 degrees with a 4.5 Hz minimum operating frequency. The 02 connector choice is side mount without cable.
The 10 base option provides the circular M10x1 mounting, and the final 00 code indicates that approvals were not requested.
Performance
Generate velocity-proportional output
The moving-coil mechanism produces a two-wire voltage signal proportional to case velocity.
Measure continuous or periodic vibration
The 9200 may be connected to continuous monitoring or appropriate test and diagnostic instruments.
Preserve calibrated orientation
Sensitivity depends on installing the transducer at its ordered angle of calibration.
Technical Details
| Manufacturer | Bently Nevada | Exact model | 9200-03-02-10-00 |
|---|---|---|---|
| Transducer family | 9200 Seismoprobe | Signal principle | Moving-coil velocity |
| Sensitivity | 20 mV/mm/s (500 mV/in/s) | Orientation option | 90° ±2.5° |
| Minimum operating frequency | 4.5 Hz (270 cpm) | Connector option | Side mount, no cable |
| Mounting base | Circular M10x1 | Approval option | No approvals |
About IndustryParts
https://www.industryparts.com/Velocity-sensor selection starts with orientation and base
IndustryParts records the complete Seismoprobe identity, mounting direction and connected cable before preparing a quotation.
- •Exact submitted model retained
- •Installed-system evidence reviewed
- •Requested quantity linked to the enquiry
System Integration
Mark the orientation
Record the driver-end reference and the installed 90-degree calibration direction.
Prepare the base
Inspect the M10x1 stud, mounting surface and specified tightening condition.
Choose the cable
Match the side connector to an approved interconnect cable and receiving instrument.
Validate polarity
Confirm output polarity, vibration response and monitor scaling after mounting.
Applications
Bearing-housing vibration
Monitoring absolute vibration where casing motion represents machine condition.
Periodic diagnostics
Connecting the two-wire output to approved portable or diagnostic equipment.
Orientation-controlled service
Maintaining the 90-degree calibration direction during transducer exchange.
FAQ
Why must 9200-03-02-10-00 remain at its ordered orientation?
The Seismoprobe is calibrated for the 90-degree position, so a different angle can change measurement accuracy.
Does 9200-03-02-10-00 include an integral cable?
No. Its side-mount connector option requires a separately selected compatible interconnect cable.
What mounting evidence should accompany a 9200-03-02-10-00 enquiry?
Provide the transducer label, orientation photograph, M10x1 base condition, cable model and receiving channel.
Can a 74712 replace 9200-03-02-10-00?
The 74712 is a high-temperature family with a different ordering structure, so substitution requires application review.
What proves 9200-03-02-10-00 is correctly installed?
Correct orientation and base torque, secure cabling, expected polarity and a stable calibrated channel response provide acceptance evidence.
Request a model-specific quotation
Send the complete 9200-03-02-10-00 label, requested quantity, delivery destination and installed-system context.
