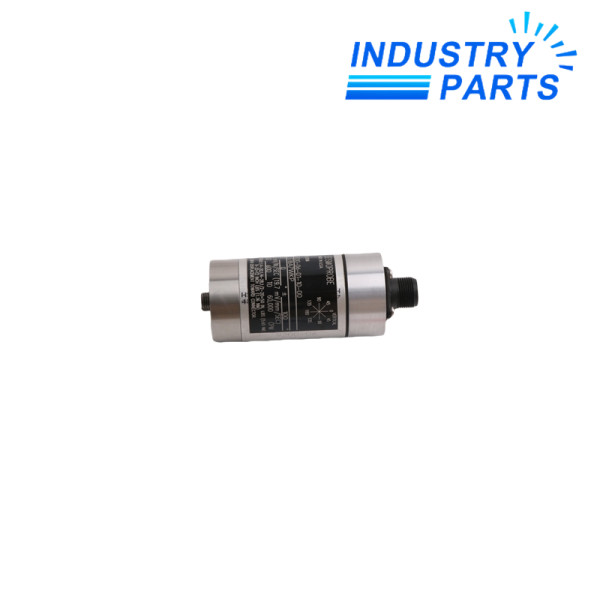

Bently Nevada 9200-06-01-10-00 Seismoprobe Velocity Transducer

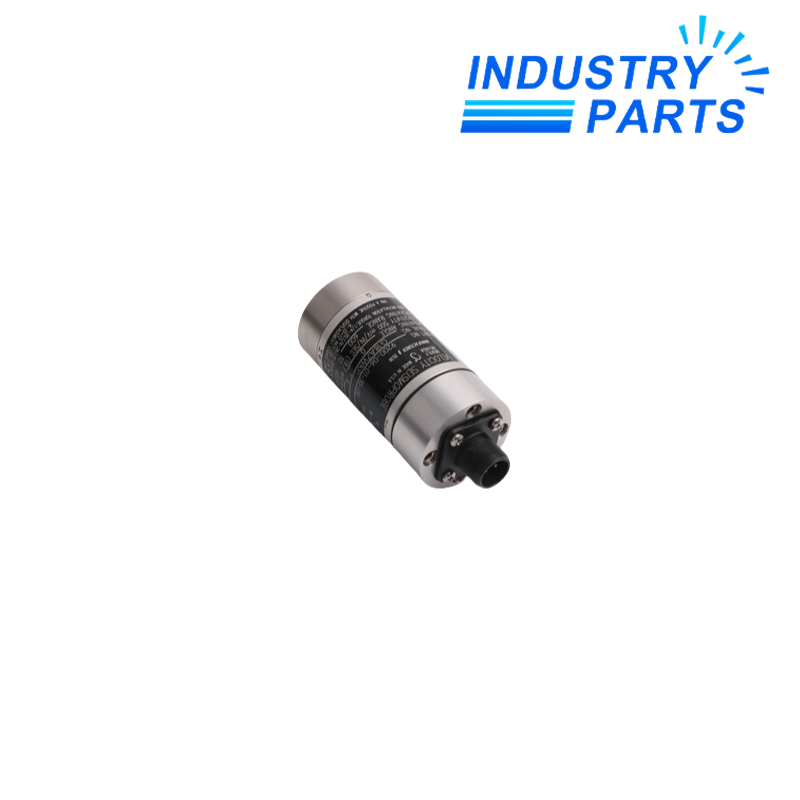

A self-powered 9200 Seismoprobe configured for vertical mounting, a top connector and an M10 × 1 circular base.
Product Identification
9200-06-01-10-00 is a two-wire moving-coil velocity transducer configured for a 0° mounting direction with a ±100° allowance and a 10 Hz minimum operating frequency. It uses a top-mounted connector and circular M10 × 1 stud base.
The final ordering field selects no agency-approval option. The complete code should be retained when matching mounting direction, monitor input and cable requirements for an installed machine point.
Engineering Data
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Model | 9200-06-01-10-00 |
| Product Family | 9200 Seismoprobe |
| Transducer Principle | Self-powered moving coil |
| Sensitivity | 20 mV/mm/s (500 mV/in/s), ±5% |
| Orientation Option | 0° ±100° |
| Minimum Operating Frequency | 10 Hz (600 cpm) |
| Connector Option | Top mount, no cable |
| Mounting Base | Circular M10 × 1 stud |
| Approval Option | No approvals |
| Operating Temperature | -29 to +121 °C |
Functions
- Produces a direct velocity signal without an external power source.
- Uses a metric circular mounting base for the specified machinery interface.
- Supports casing-vibration monitoring within the configured frequency and orientation range.
- Allows cable construction and length to be selected separately for the monitor connection.
Applications
- General rotating-equipment vibration
- Metric-base machinery installations
- Self-powered casing-velocity measurement
Lifecycle
- Protect the connector and M10 mounting surface during storage.
- Keep channel scaling and mounting-direction records with the sensor identity.
- Review site classification before reusing the no-approval configuration.
FAQ
What is the configured lower frequency for 9200-06-01-10-00?
The selected orientation option establishes a 10 Hz minimum operating frequency, which must suit the machine speed and monitoring objective.
Does 9200-06-01-10-00 include a cable?
No. The top-mount connector option is supplied without cable, so cable construction and length are separate selections.
Can 9200-06-01-10-00 mount on an imperial stud?
Not directly. Its specified circular base uses an M10 × 1 stud.
Is 9200-06-01-10-00 approved for hazardous areas?
The final 00 code selects no agency approval, so use it only where that status is acceptable.
Can 9200-06-01-10-00 replace a 15 Hz orientation variant?
Only after reviewing machine speed, orientation allowance, monitor response and the original measurement requirement.
What acceptance checks apply to 9200-06-01-10-00?
Verify mounting direction, torque, wiring polarity, channel scaling, baseline noise and response against an independent reference.
