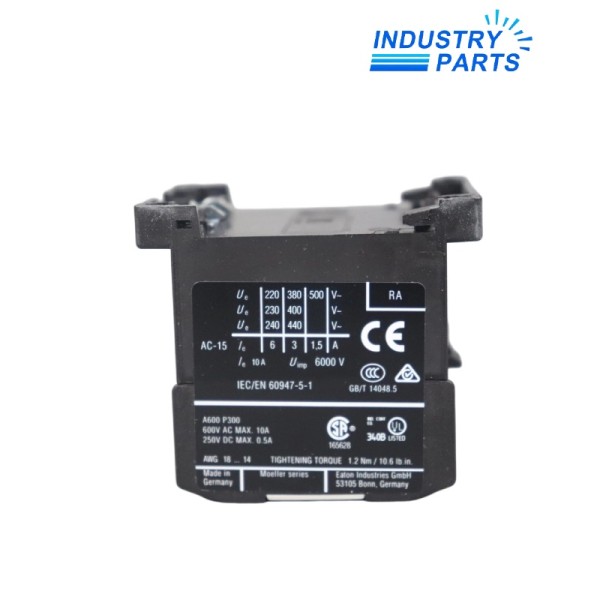

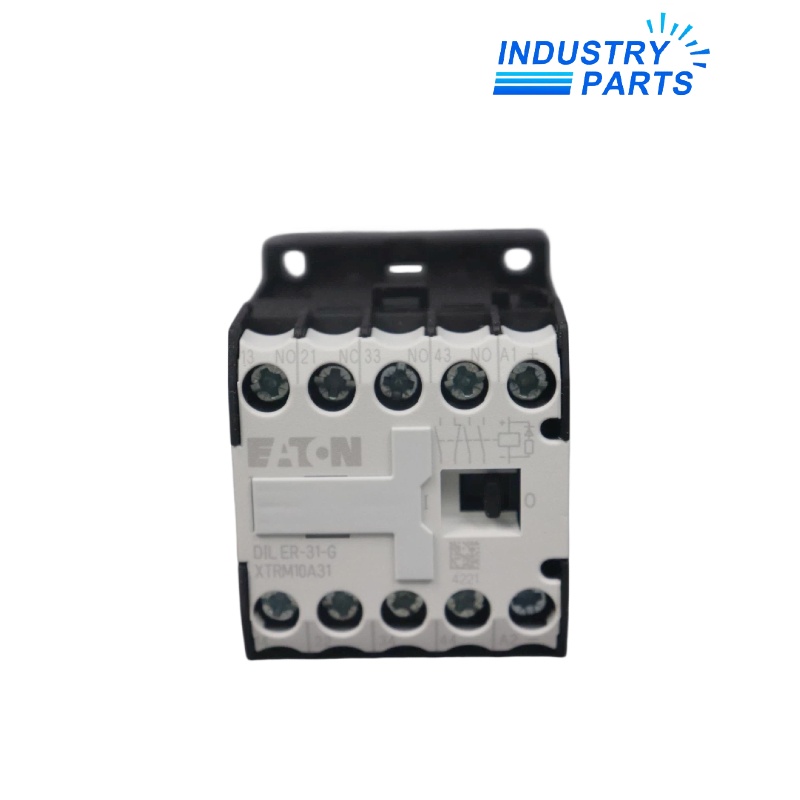

Eaton DILER-31-G Contactor Relay

Eaton DILER-31-G Contactor Relay

The Eaton DILER-31-G Contactor Relay is a compact industrial relay used for switching and controlling low-power control circuits in automation and electrical systems. The DILER-31-G operates with a 24 V DC coil and provides 3 NO + 1 NC contacts, offering reliable signal switching with high durability and up to 20 million mechanical operations. It features screw terminals, DIN rail mounting, 690 V insulation rating, and high electrical endurance for stable industrial performance.

The Eaton DILER-31-G is widely used in industrial automation, control panels, motor control, HVAC systems, and machinery circuits. With compact size, wide temperature range (-25 to +50 °C), and high switching frequency up to 9000 operations per hour, the DILER-31-G is suitable for continuous operation in manufacturing and control applications requiring reliable relay switching.

☈ Product Information

Product Name: Eaton DILER-31-G Contactor Relay

Product Model: DILER-31-G

Product Parameters: Contactor Relay

Manufacturer: Eaton

Estimated Shipping Size: 9x7.5x4.5cm

Weight: 0.211 kg

Rated control voltage: 24 V DC

Coil power consumption: 2.6 W

Number of poles (contacts): 3 NO + 1 NC

Conventional thermal current (Ith): 10 A

AC-15 rated current (230–240 V): 6 A

AC-15 rated current (400 V): 3 A

Rated insulation voltage: 690 V AC

Rated impulse withstand voltage: 6000 V

Mounting method: DIN rail / screw mounting

Terminal type: Screw terminal

Conductor cross-section (main circuit): 0.75–2.5 mm² (solid/stranded), 0.75–1.5 mm² (ferrule)

Tightening torque: 1.2 N·m

Ambient operating temperature: -25 to +50 °C

Storage temperature: Not explicitly specified (industrial standard range -25 to +70 °C typical class)

Humidity resistance: Damp heat compliant (IEC 60068-2-30/78)

Ingress protection: IP20

Mechanical life: 20 million operations

Maximum switching frequency: 9000 operations/hour

Pick-up voltage range: 0.85–1.3 × Uc

Drop-out time: 15–35 ms (typical switching delay range)

Place of Shipment: Xiamen, China

Delivery Time: 1-3 days

Quantity: 100% New Original

Minimum Order Quantity: 1pc

Shipping Method: DHL\UPS\Fedex\EMS\Others
