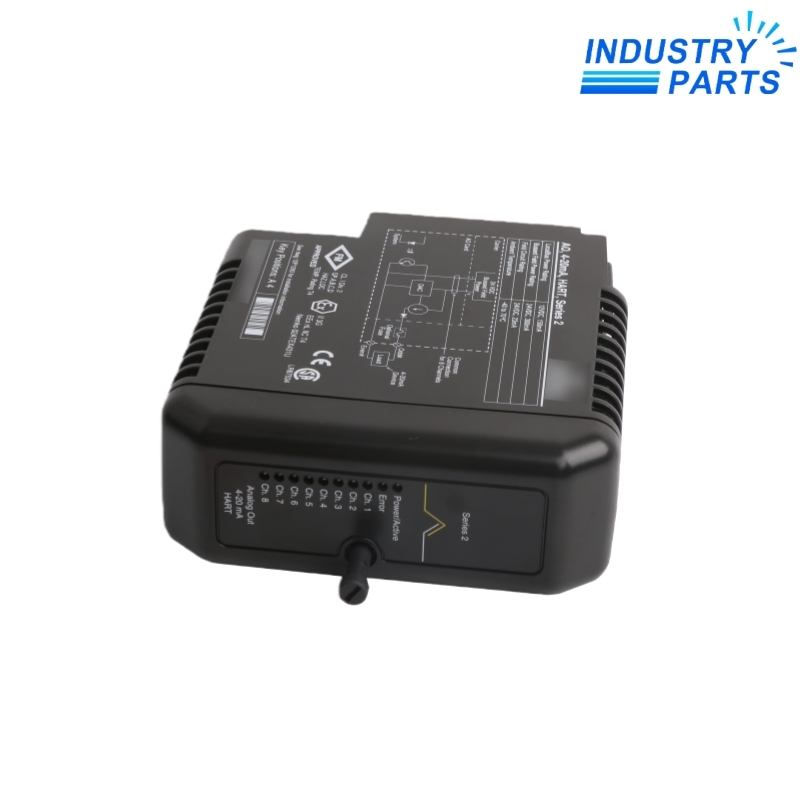

Emerson KJ3221X1-BA1 8-Channel 4–20 mA HART Analog Output Card
A Series 2 DeltaV analog-output card with eight 4–20 mA HART channels and redundancy support.
Overview
Emerson KJ3221X1-BA1 is a DeltaV M-Series Series 2 analog output card providing eight 4–20 mA channels with HART communication.
The card is redundant-capable within the documented DeltaV arrangement. LocalBus, bussed field and per-channel field-circuit power values must be checked together with the terminal-block key position.
Removal and insertion restrictions depend on the area classification and field-circuit condition. The unit has no user-serviceable parts and does not require calibration.
Specifications
Features
Eight HART-capable loops
Each channel delivers the documented 4–20 mA analog-output function with HART support.
Redundancy-ready architecture
The card can participate in the approved Series 2 redundant arrangement.
Defined power budget
LocalBus, bussed field and per-channel circuit values provide a clear panel-load boundary.
Mechanical key control
A4 keying helps prevent pairing with the wrong terminal-block execution.
Applications
Final-control outputs
Driving compatible 4–20 mA valve positioners, converters or other receiving devices with HART access.
Redundant process loops
Supporting high-availability output service in the approved DeltaV redundant topology.
Controlled card exchange
Replacing the same AO identity while retaining channel mapping, HART devices and terminal-block keying.
Lifecycle
Archive
Save all eight loop assignments, HART identities, output ranges, fail actions and redundancy state.
Exchange
Apply the documented power and area restrictions and verify A4 terminal-block keying.
Prove
Stroke or simulate each loop under the approved procedure, verify HART communication and confirm redundancy transfer.
About IndustryParts
https://www.industryparts.com/Exact-model handling for KJ3221X1-BA1
IndustryParts prepares this 8-channel 4–20 ma hart analog output card enquiry with the complete label, requested quantity and installed-system evidence kept together, so the proposed supply can be compared with the actual application before dispatch.
FAQ
Is KJ3221X1-BA1 an analog input card?
No. KJ3221X1-BA1 is an eight-channel 4–20 mA HART analog output card.
What power data matters for KJ3221X1-BA1?
Review 12 VDC at 150 mA LocalBus power, 24 VDC at 300 mA bussed field power and 24 VDC at 23 mA per channel.
Which terminal-block key position belongs to KJ3221X1-BA1?
The published key position is A4; verify the physical terminal block before installation.
What should accompany a redundant KJ3221X1-BA1 enquiry?
Provide both card labels, carrier and terminal-block identities, redundancy role, eight-loop schedule, HART device list and required quantity.
What proves KJ3221X1-BA1 is ready for service?
Document eight verified current outputs, correct loop scaling and fail actions, HART communication, alarms and a successful redundancy transfer where used.
