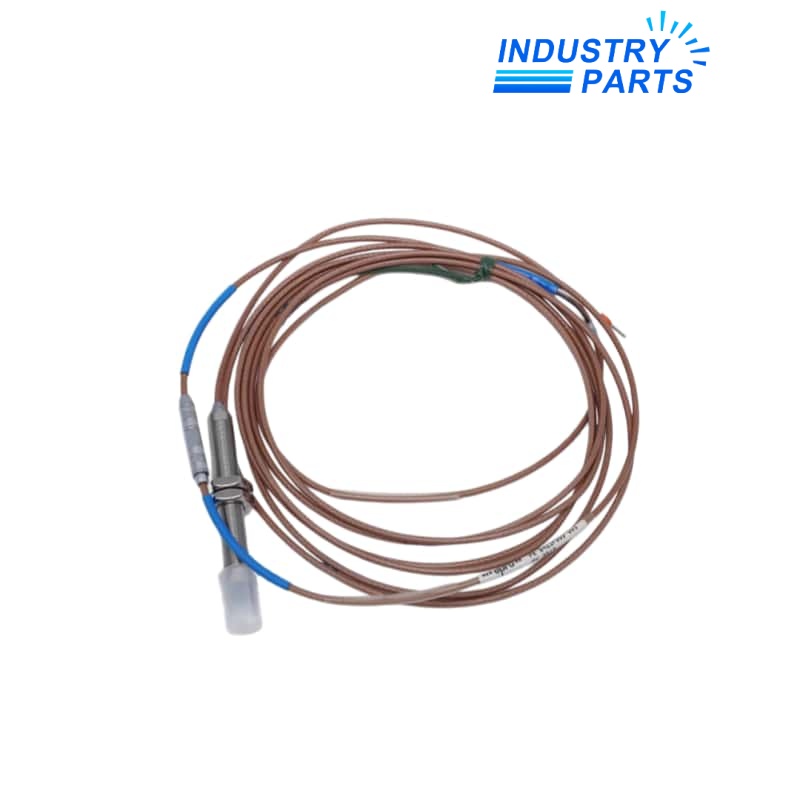

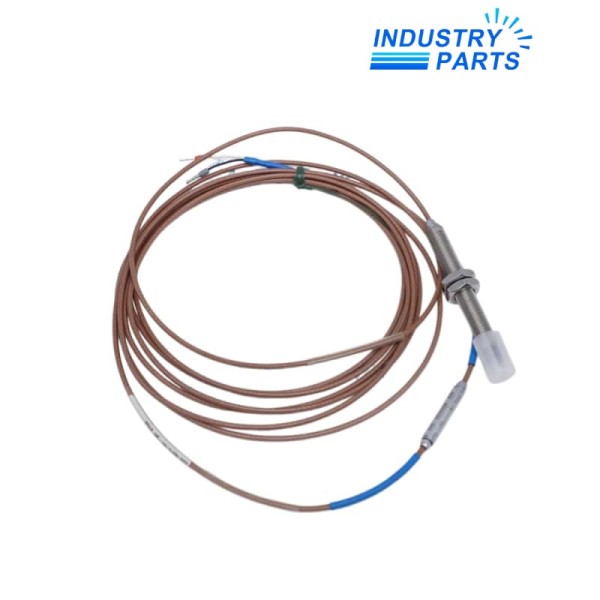

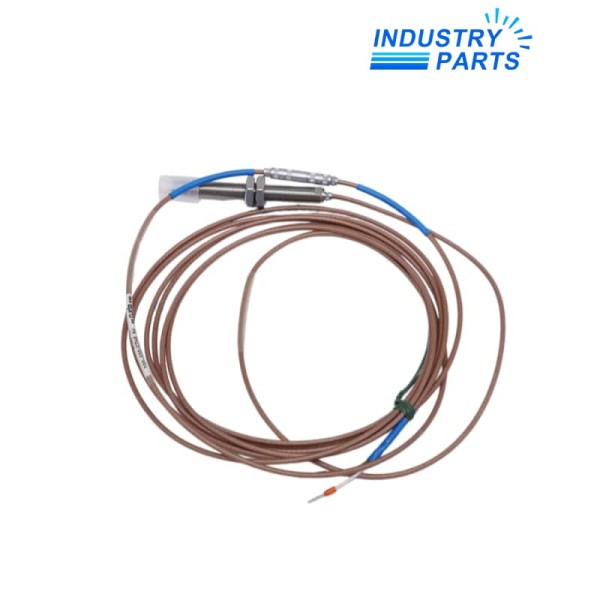

Epro PR6423/005-001 8mm Eddy Current Sensor

Epro PR6423/005-001 8mm Eddy Current Sensor

Product Information

Product Name: Epro PR6423/005-001 8mm Eddy Current Sensor

Product Model: PR6423/005-001

Product Parameters: Eddy Current Sensor

Manufacturer: Epro

Weight: 0.1kg

Linear Measurement Range: 2 mm (80 mils)

Initial Air Gap: 0.5 mm (20 mils)

Sensitivity (ISF): 8 V/mm ±5%

Linearity Error (DSL): ±0.025 mm

Minimum Shaft Diameter: 25 mm

Target Material: 42CrMo4 (AISI/SAE 4140) Ferromagnetic Steel

Protection Rating: IP66

Sensor: -35°C to +180°C

Cable & Connector: -35°C to +150°C

Sensor Tip Material: PEEK

Housing Material: Stainless Steel

Cable Material: PTFE

Connector Material: Nickel-Plated Brass

Place of Shipment: Xiamen, China

Delivery Time: 1-3 days

Quantity: 100% New Original

Minimum Order Quantity: 1pc

How to contact us

What happens after placing an order? Parts ordering.

Step 1: Email Confirmation

After you check out or make an inquiry, you will receive an email confirming the receipt of your order. Your quote will be accepted, or your online order will be officially submitted.

Step 2: Dedicated Customer Service Representative

Our customer service representative will contact you to verify your part information and confirm your shipping details.

Manager: Leonia

Email: sales@mvme.cn

Whatsapp: +8618030175807

About IndustryParts

It has maintained a leading position for 23 years and is still developing.

We help keep global production running smoothly!

The parts inventory is approaching 2 million pieces.

Provide emergency shipping service

All services of IndustryParts are guided by a principle that is not reflected in the product specification sheet: if you cannot find the part you need anywhere else, our team will do everything in its power to find it for you. We will never let you down. This is our commitment, not just empty words.

FQA

Q1：Epro PR6423/005-001 8mm Eddy Current Sensor what is it and what is it used for?

A1：Epro PR6423/005-001 8mm Eddy Current Sensor is a non-contact eddy current displacement sensor used for precision measurement of shaft vibration, axial position, eccentricity, and mechanical movement in rotating machinery such as turbines, compressors, pumps, and generators. It works by generating a high-frequency electromagnetic field and detecting changes caused by conductive metal targets, typically steel shafts like 42CrMo4.

Q2：What is the measurement range and accuracy of Epro PR6423/005-001 8mm Eddy Current Sensor?

A2：Epro PR6423/005-001 8mm Eddy Current Sensor provides a linear measurement range of 2 mm (80 mils) with an initial air gap of 0.5 mm (20 mils). It has a sensitivity of 8 V/mm ±5% and a linearity error of ±0.025 mm, making it suitable for high-precision machinery protection and condition monitoring applications.

Q3：What are the operating temperature and protection level of Epro PR6423/005-001 8mm Eddy Current Sensor?

A3：Epro PR6423/005-001 8mm Eddy Current Sensor operates in a wide temperature range from -35°C to +180°C for the sensor and -35°C to +150°C for cable and connector. It has an IP66 protection rating, ensuring resistance to dust ingress and strong water jets, suitable for harsh industrial environments.

Q4：What materials and installation requirements are used for Epro PR6423/005-001 8mm Eddy Current Sensor?

A4：Epro PR6423/005-001 8mm Eddy Current Sensor is built with a PEEK probe tip, stainless steel housing, PTFE cable, and nickel-plated brass connector. It requires a minimum shaft diameter of 25 mm and is optimized for ferromagnetic steel targets such as 42CrMo4, ensuring stable and reliable measurement performance in rotating machinery systems.
