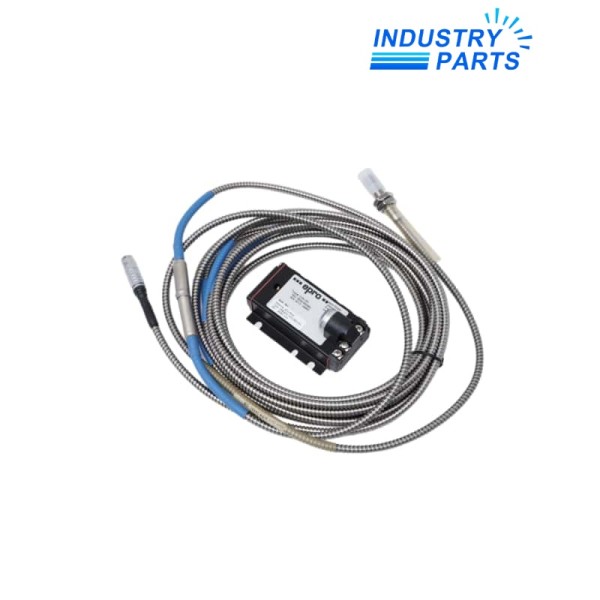

Epro PR6423/010-010-CN CON021 8mm Eddy Current Sensor

Epro PR6423/010-010-CN CON021 8mm Eddy Current Sensor

Product Information

Product Name: Epro PR6423/010-010-CN CON021 8mm Eddy Current Sensor

Product Model: PR6423/010-010-CN CON021

Product Parameters: Eddy Current Sensor

Manufacturer: Epro

Weight: 0.1kg

Linear Measurement Range: 2 mm (80 mils)

Initial Air Gap: 0.5 mm (20 mils)

Sensitivity (ISF): 8 V/mm ±5%

Linearity Error (DSL): ±0.025 mm

Minimum Shaft Diameter: 25 mm

Target Material: 42CrMo4 (AISI/SAE 4140) Ferromagnetic Steel

Protection Rating: IP66

Sensor: -35°C to +180°C

Cable & Connector: -35°C to +150°C

Sensor Tip Material: PEEK

Housing Material: Stainless Steel

Cable Material: PTFE

Connector Material: Nickel-Plated Brass

Place of Shipment: Xiamen, China

Delivery Time: 1-3 days

Quantity: 100% New Original

Minimum Order Quantity: 1pc

How to contact us

What happens after placing an order? Parts ordering.

Step 1: Email Confirmation

After you check out or make an inquiry, you will receive an email confirming the receipt of your order. Your quote will be accepted, or your online order will be officially submitted.

Step 2: Dedicated Customer Service Representative

Our customer service representative will contact you to verify your part information and confirm your shipping details.

Manager: Leonia

Email: sales@mvme.cn

Whatsapp: +8618030175807

About IndustryParts

It has maintained a leading position for 23 years and is still developing.

We help keep global production running smoothly!

The parts inventory is approaching 2 million pieces.

Provide emergency shipping service

All services of IndustryParts are guided by a principle that is not reflected in the product specification sheet: if you cannot find the part you need anywhere else, our team will do everything in its power to find it for you. We will never let you down. This is our commitment, not just empty words.

FQA

FAQ 1: What is the Epro PR6423/010-010-CN CON021 8mm Eddy Current Sensor used for?

The Epro PR6423/010-010-CN CON021 8mm Eddy Current Sensor is a non-contact displacement sensor designed for monitoring critical rotating machinery. It is commonly used to measure shaft vibration, axial displacement, shaft position, eccentricity, and rotational speed in steam turbines, gas turbines, compressors, pumps, fans, and gearboxes.

FAQ 2: What are the technical specifications of the Epro PR6423/010-010-CN CON021 8mm Eddy Current Sensor?

The Epro PR6423/010-010-CN CON021 8mm Eddy Current Sensor features a linear measurement range of 2 mm (80 mils), an initial air gap of 0.5 mm (20 mils), and a sensitivity of 8 V/mm (±5%). The linearity deviation is ±0.025 mm, providing precise shaft displacement measurements for machinery protection and condition monitoring systems.

FAQ 3: What operating conditions can the Epro PR6423/010-010-CN CON021 8mm Eddy Current Sensor withstand?

The sensor is designed for harsh industrial environments with an IP66 protection rating. The probe can operate at temperatures from -35°C to +180°C, while the cable and connector are rated from -35°C to +150°C. The sensor tip is made of PEEK, the housing is stainless steel, and the cable uses PTFE insulation for excellent durability and heat resistance.

FAQ 4: What shaft materials and sizes are compatible with the Epro PR6423/010-010-CN CON021 8mm Eddy Current Sensor?

The standard calibration target for the Epro PR6423/010-010-CN CON021 8mm Eddy Current Sensor is 42CrMo4 (AISI/SAE 4140) ferromagnetic steel. The minimum recommended shaft diameter is 25 mm, ensuring stable and accurate displacement measurements in a wide range of rotating equipment applications.
