Detects a ferrous rotating target without mechanical contact.
Key Information
PR9376/010-011 is a Hall-effect speed and proximity sensor for turbines, compressors, pumps and fans. It produces one output cycle for each passing revolution marker or gear tooth.

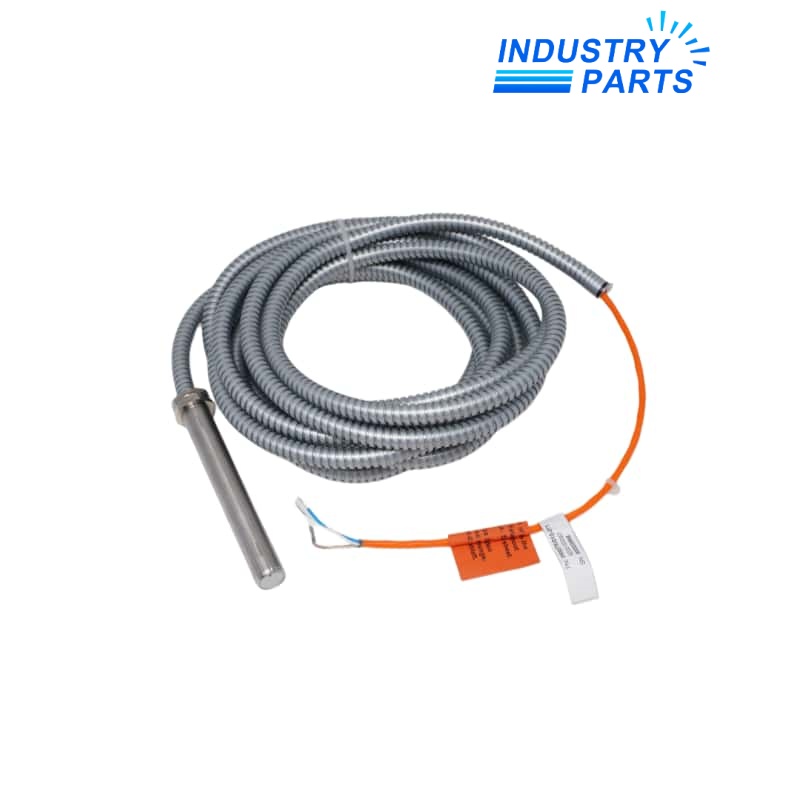

The complete PR9376/010-011 code identifies the armored-cable execution with a 5 m cable and open cable end. These construction details should not be substituted from another PR9376 suffix.
Functions
Provides a fast square-wave signal for speed, key or proximity monitoring channels.
Operates with spur-wheel involute gearing and magnetic soft iron or non-stainless steel targets.
Uses armored cable construction to protect the installed lead in mechanically demanding routes.
Specifications
| Manufacturer | Emerson |
|---|---|
| Sensor principle | Hall effect |
| Output | 1 AC cycle per revolution or gear tooth |
| Output level | High greater than 10 V; low less than 1 V at 12 VDC and 100 kohm load |
| Rise/fall time | 1 microsecond |
| Maximum frequency | 12 kHz / 720,000 cpm |
| Air gap | 1 mm for module 1; 1.5 mm for module 2 or greater |
| Power supply | 10 to 30 VDC at 25 mA maximum |
| External resistance | 400 ohms maximum |
| Target material | Magnetic soft iron or non-stainless steel |
| Sensor material | Stainless steel |
| Cable material | PTFE |
| Operating temperature | -25 to +100 degrees C |
| Storage temperature | -40 to +100 degrees C |
| Protection rating | IP67 |
| Cable execution | Armored, 5 m, open end |
Installation
- Verify target material, tooth geometry, air gap and maximum running frequency before mounting the sensor.
- Route the 5 m armored lead without sharp bends, crushing or strain at the sensor body and termination.
- Set the gap statically, then prove pulse amplitude and frequency through the complete monitor channel during controlled rotation.
- Document wire identification at the open cable end before disconnecting an installed sensor.
Lifecycle
- Protect the sensing face and cable termination during storage and transport.
- Retain target geometry, final gap, polarity and observed pulse level in the commissioning record.
- Inspect armor and cable entry periodically where vibration or repeated maintenance can fatigue the lead.
