Acquires sixteen discrete 24 VDC field states for the VersaMax station.
Product Overview

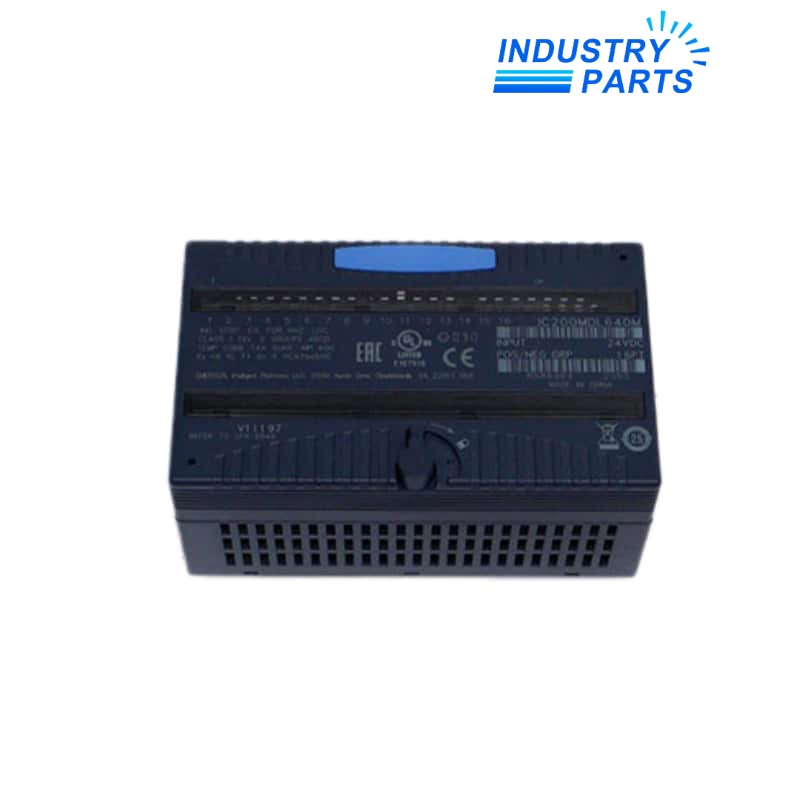

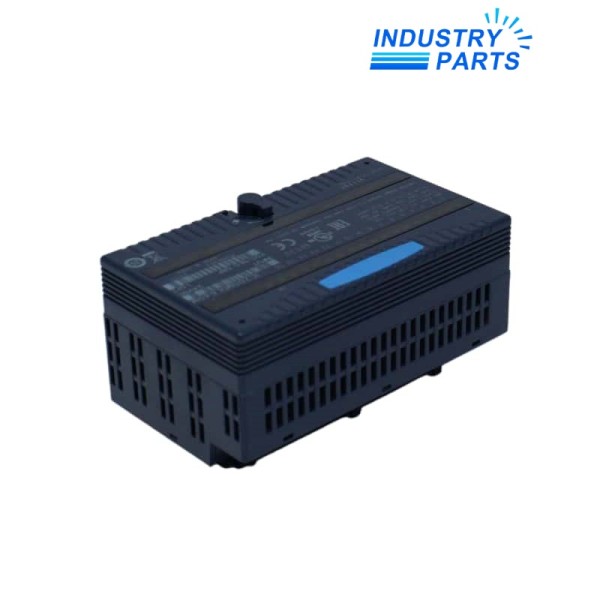

IC200MDL640 is a VersaMax modular I/O discrete input module for 16 field signals. The points are arranged as two groups of eight and support positive- or negative-logic 24 VDC wiring.
Selection should include the carrier, terminal-base style, group commons, controller configuration and the polarity of the installed field devices.
Performance
Organizes input wiring into two groups of eight with documented common connections.
Supports positive- or negative-logic field circuits according to the installed wiring design.
Provides point indication to assist commissioning and fault isolation.
Technical Details
| Manufacturer | Emerson / legacy GE Fanuc |
|---|---|
| Exact model | IC200MDL640 |
| Platform | VersaMax Modular I/O |
| Module function | Discrete DC input |
| Input count | 16 points |
| Nominal input voltage | 24 VDC |
| Logic support | Positive or negative logic |
| Grouping | Two groups of eight inputs |
| Mechanical interface | VersaMax carrier and compatible terminal base |
System Integration
- Map both common groups, field polarity and terminal numbers before transferring wiring.
- Confirm the station hardware configuration assigns sixteen input points to the correct module position.
- Inspect the carrier and terminal-base contacts for corrosion, bending or overheating before reuse.
- Exercise ON and OFF recognition in both groups while observing the controller input table.
Applications
- Machine-control cabinets using 24 VDC contacts and compatible solid-state sensors.
- Distributed VersaMax I/O stations requiring two groups of eight discrete inputs.
- Legacy maintenance where the installed carrier and field polarity must remain unchanged.
FAQ
Can IC200MDL640 accept both sourcing and sinking field devices?
The module supports positive- or negative-logic wiring, but the group commons and every connected device must follow one documented circuit design.
What terminal information should accompany an IC200MDL640 enquiry?
Provide the carrier and terminal-base numbers, both group commons, field voltage and the polarity of the connected sensors.
How should intermittent IC200MDL640 inputs be investigated?
Measure field voltage and common integrity, then check sensor leakage, cable noise and terminal condition across the affected group.
Does IC200MDL640 need controller reconfiguration after a like-for-like exchange?
The existing configuration may remain, but slot assignment and the sixteen-point input map still need verification before operation.
What is a useful acceptance test for IC200MDL640?
Exercise representative ON and OFF signals in both groups and compare indicators with the live controller input table.
About IndustryParts
https://www.industryparts.com/Polarity and common groups remain part of the module record
IndustryParts prepares IC200MDL640 supply with its carrier, terminal base and two field-input groups documented.
