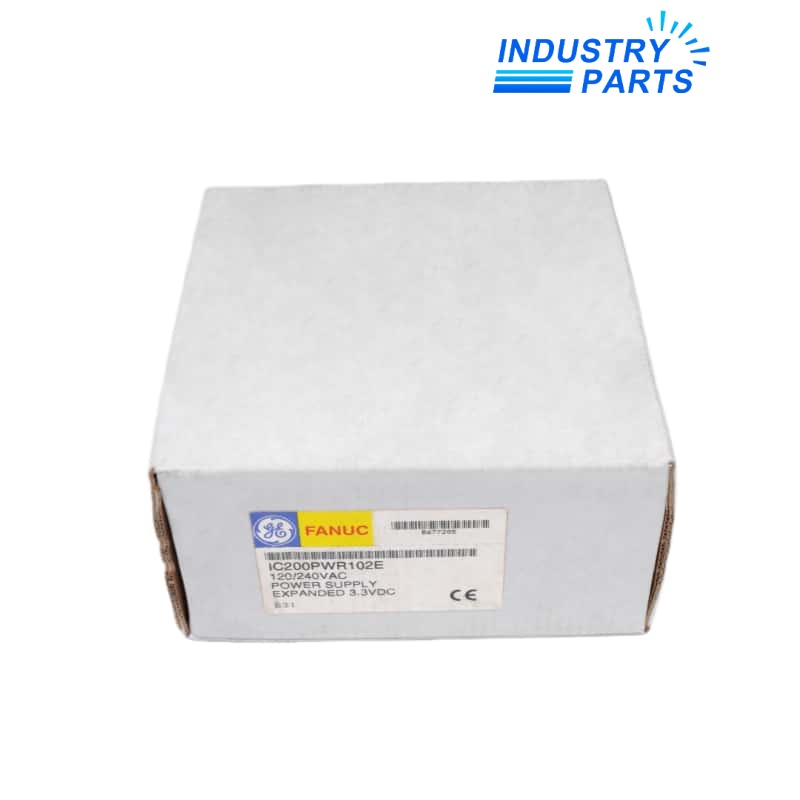

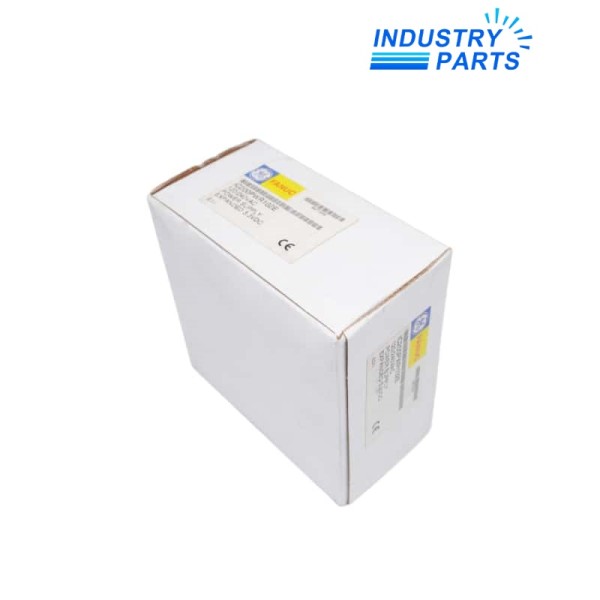

Emerson IC200PWR102 VersaMax Expanded 3.3 VDC AC-Input Power Supply
A VersaMax modular power supply for AC-fed nodes that require the expanded 3.3 VDC output execution.
Product Identification
IC200PWR102 is the VersaMax power-supply execution with 120/240 VAC system input and expanded 3.3 VDC module power. It supports the snap-together VersaMax control and I/O architecture.
Selection should be based on the node input source and total module-power requirement. A similar VersaMax supply with a DC input code is not an electrical substitute for this AC-fed model.
The 102 catalog number combines the AC input class with the expanded 3.3 VDC output execution; both aspects belong in the spare decision.
Engineering Data
- System input
- 120/240 VAC
- Output distinction
- Expanded 3.3 VDC module power
- Installation role
- Supplies a VersaMax modular control / I/O node
Functions
Node power conversion
The supply converts the documented AC source into the internal power used by the VersaMax modular assembly.
Expanded 3.3 VDC capacity
The 102 execution is selected where the node power budget requires its expanded 3.3 VDC output.
Compact modular integration
The supply joins the snap-together VersaMax arrangement without a separate large control-power chassis.
About IndustryParts
https://www.industryparts.com/Controlled handling for IC200PWR102
IndustryParts keeps the submitted IC200PWR102 identity, requested quantity and installed-system evidence together so a proposed supply can be checked before dispatch.
- Suffix and MOD identity kept visible
- Mating hardware recorded before supply
- Acceptance evidence linked to the order
Applications
AC-fed VersaMax nodes
Use the supply in panels where the approved branch circuit provides the documented 120/240 VAC input class.
I/O expansion
Apply the expanded 3.3 VDC execution after calculating every CPU, network and I/O module load in the node.
Controlled replacement
Retain the original source protection, grounding and module order when exchanging the supply.
Lifecycle
Assess
Record the input source, branch protection, ground, module list and present status before isolation.
Exchange
Remove all hazardous energy, preserve connector orientation and install the exact IC200PWR102 catalog identity.
Energize
Restore the source under the approved procedure and verify module recognition, power status and every affected I/O path.
FAQ
Q01
Can a DC-input VersaMax supply replace IC200PWR102?
+
No direct substitution should be made because IC200PWR102 is selected for a 120/240 VAC system input and the panel source and protection must match.
Q02
Why is the expanded 3.3 VDC designation important for IC200PWR102?
+
It is the output distinction used to size the VersaMax node; the complete installed module load should be recalculated before a replacement is approved.
Q03
What should accompany a IC200PWR102 enquiry?
+
Provide the supply label, input source and protection, complete VersaMax module list, node photographs and requested quantity.
Q04
Should adjacent modules be reviewed when replacing IC200PWR102?
+
Yes. Their combined internal power demand and physical order determine whether the restored supply arrangement is appropriate.
Q05
What closes a IC200PWR102 power-supply replacement?
+
Record input and grounding checks, normal supply status, recognized module inventory and successful tests of the affected I/O node.
