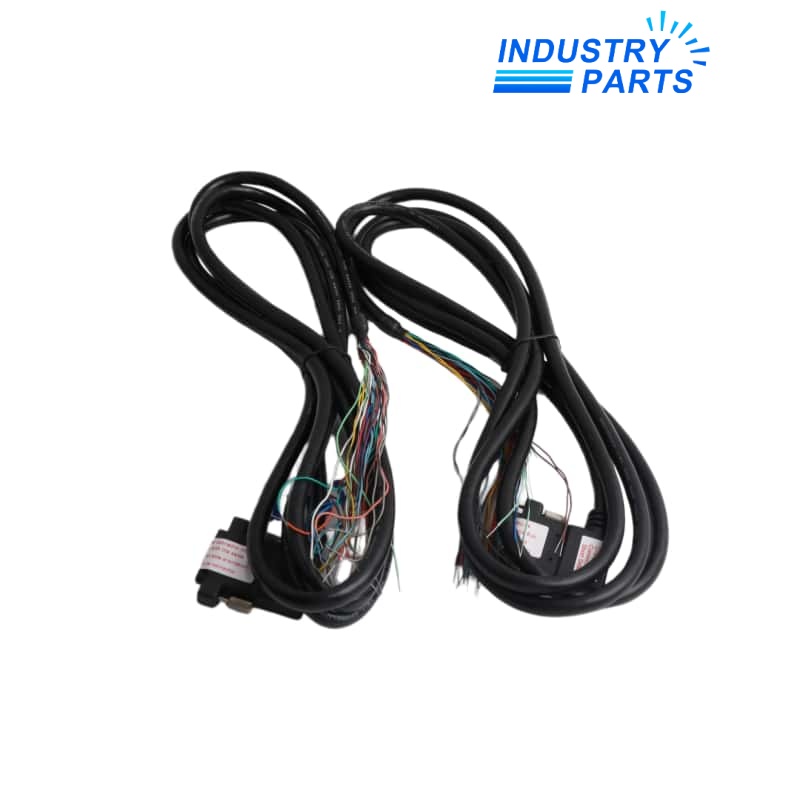

Emerson IC693CBK001 Series 90-30 High-Density I/O Cable Kit
A legacy Series 90-30 cable-kit identity used to connect compatible high-density I/O hardware to documented field termination.
Key Information
IC693CBK001 is a cable-kit catalog identity used with legacy Series 90-30 high-density I/O installations.
The cable kit must be selected with the receiving I/O module, connector orientation, field termination and required cable execution all confirmed.
Functions
Provides the documented cable interface between compatible Series 90-30 high-density I/O and field termination.
Keeps module-side connectors and field-side conductors organized as a controlled assembly.
Supports service replacement without rebuilding the panel wiring architecture.
Maintains traceability between the cable kit and its approved receiving I/O module.
Specifications
Installation
- Photograph both ends of the installed cable and every label before disconnection.
- Confirm connector keying and orientation without forcing either module-side connection.
- Transfer field conductors only against the approved terminal schedule and point-to-point drawing.
- Perform continuity, isolation and complete I/O point tests before returning the panel to service.
Lifecycle
- Store the cable kit with protective caps or packaging that prevents bent pins and conductor damage.
- Keep IC693CBK001 associated with the approved module list and panel drawing.
- Do not approve a visually similar cable solely from connector count or jacket appearance.
- Record revision marks and any companion part numbers in the receiving inspection.
FAQ
What must be supplied to verify IC693CBK001?
Provide the complete cable labels, both connector faces, overall routing, receiving I/O module and the field termination drawing.
Can IC693CBK001A automatically replace IC693CBK001?
Treat the A suffix as a distinct revision identity until connector construction, cable execution and the approved system record confirm interchangeability.
What damage should be checked on an IC693CBK001 cable kit?
Inspect connector shells, locking features, pins, strain relief, jacket, conductor ends and any evidence of crushing or tight-radius bending.
How should an IC693CBK001 replacement be commissioned?
Verify continuity and isolation first, then test every affected I/O point against the controller database and field-device behavior.
What prevents an IC693CBK001 ordering error?
Use the receiving module catalog number, installed photographs, connector orientation and terminal schedule rather than relying on the family name alone.
