Product Overview

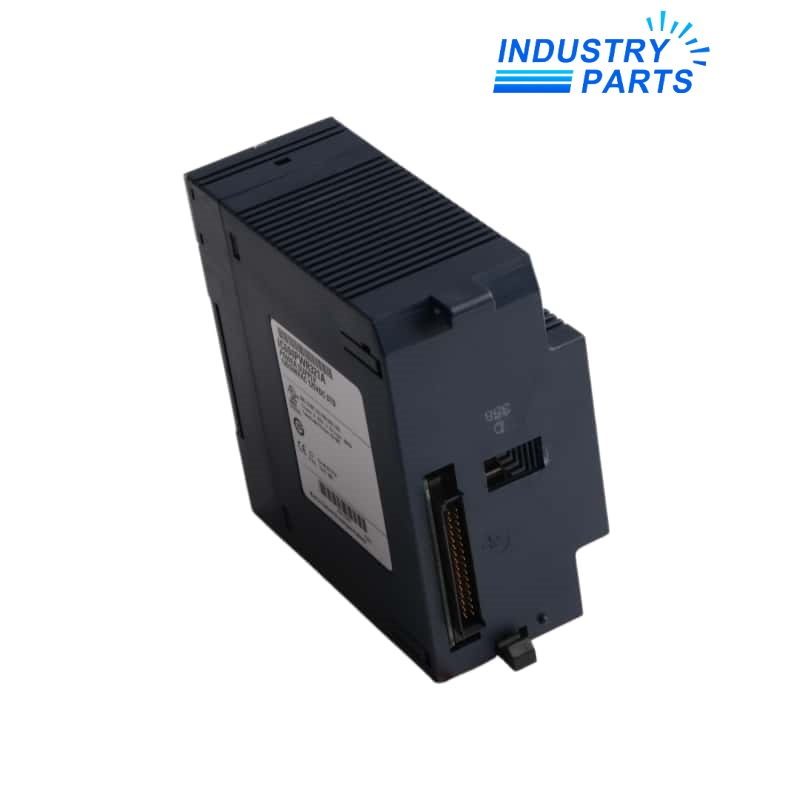

IC694PWR321 is the 30 W PACSystems RX3i power supply for serial expansion racks. Emerson identifies the input class as 120/240 VAC or 125 VDC.
The module supplies the rack through the dedicated power-supply position and provides the documented 5 VDC, 24 VDC relay and isolated 24 VDC output rails used by the backplane architecture.
The exact IC694PWR321 identity distinguishes this standard 30 W supply from the high-capacity serial-expansion supplies in the same platform family.
Technical Specifications
ManufacturerEmerson / legacy GE Fanuc
Exact modelIC694PWR321
PlatformPACSystems RX3i
Product typeSerial-expansion rack power supply
Power rating30 W
Nominal input class120/240 VAC or 125 VDC
Published AC input range85–264 VAC
Published DC input range100–300 VDC
Output rails5 VDC; 24 VDC relay; isolated 24 VDC
Rack positionDedicated leftmost power-supply position
Redundant load sharingNot specified for this model
Replacement boundaryInput protection, rack load and all output demands
Features
Generates the multiple rails required by the compatible backplane.
Keeps the 30 W rack-load limit visible during spare selection.
Installs in the dedicated power-supply position rather than a normal I/O slot.
Applications
- Powering a supported PACSystems RX3i serial expansion rack.
- Replacement where the installed input source and complete rack load are documented.
- Legacy rack maintenance requiring the exact IC694PWR321 catalog identity.
- Planned outage work that includes input protection and conductor inspection.
Installation
- Calculate the complete rack load and confirm it remains within the documented supply budget.
- Isolate the AC or DC source and record terminal polarity, protection and grounding.
- Install IC694PWR321 only in the dedicated power-supply position and restore all covers.
- Energize under the approved procedure, then verify output health, rack recognition and stable I/O operation.
About IndustryParts
https://www.industryparts.com/Existing-page editing now centers the rack power budget
IndustryParts keeps IC694PWR321 tied to its 30 W serial-rack role, input source and populated backplane.
- Existing title retained
- Rack load reviewed
- Input source documented
FAQ
What must be checked before ordering IC694PWR321?
Provide the power-supply label, backplane model, input source, complete module list, rack-load calculation and required quantity.
Can IC694PWR321 be chosen from rack fit alone?
No. Confirm input voltage, available 30 W capacity, output-rail loading, protection and backplane compatibility.
Does IC694PWR321 support redundant load sharing?
Do not design redundancy around this module unless an applicable Emerson system document explicitly approves the architecture.
What should be inspected when IC694PWR321 is removed?
Inspect input terminals, fuse or branch protection, earth connection, backplane connector and signs of heat or contamination.
What proves IC694PWR321 is ready for service?
Confirm correct input, stable supply indicators, clean rack diagnostics, adequate load margin and normal operation of all powered modules.
