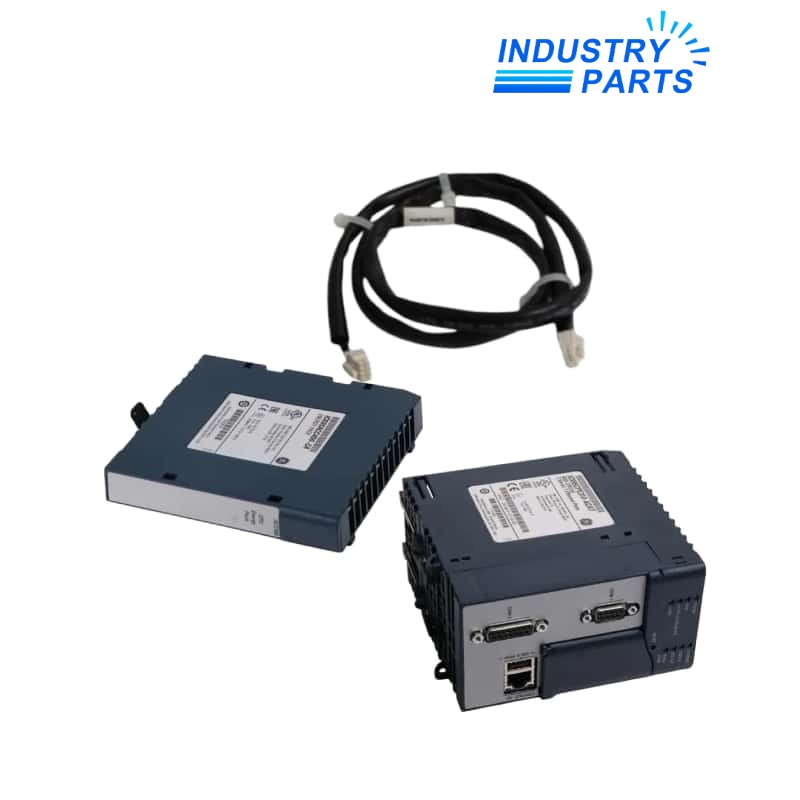

GE General Electric IC695CPE310 IC695ACC400 IC695CBL001A Controller unit
An RX3i CPE310 controller page preserving the existing controller, energy-pack and interconnect-cable supply boundary.
Product Overview
IC695CPE310 is a PACSystems RX3i backplane controller with 13 MB user memory, 32 Kbits of discrete I/O capacity and 32 Kwords of analog I/O capacity. Its embedded interface provides a two-port 10/100/1000 Ethernet switch, RS-232, RS-485 and USB-A service connectivity.
The existing supply title also identifies IC695ACC400 and IC695CBL001A. These are companion energy-retention components rather than part of the CPU silicon; the quotation must state whether the controller, pack and cable are supplied together or which items will be reused.
Performance
- Thirteen megabytes of user memory support real-time RX3i machine and process control.
- The two-port Gigabit Ethernet switch supports SRTP, Modbus TCP/IP, OPC UA, EGD and additional documented industrial protocols.
- Embedded RS-232 and RS-485 ports support ASCII and Modbus RTU applications.
- A USB-A 2.0 interface supports removable data-storage workflows.
- An IC695ACC400 energy pack and matching cable can power the controlled memory-save sequence during system power loss.
Technical Details
| Manufacturer | Emerson / GE Intelligent Platforms |
|---|---|
| Model | IC695CPE310 |
| Existing Supply Title Companions | IC695ACC400 energy pack and IC695CBL001A interconnect cable |
| Product Family | PACSystems RX3i |
| Form Factor | Backplane controller |
| User Memory | 13 MB |
| Non-Volatile Flash User Memory | 13 MB on current B-series product information |
| Discrete I/O | 32 Kbits |
| Analog I/O | 32 Kwords |
| Ethernet Interface | Two-port 10/100/1000 switched interface |
| Ethernet Protocols | SRTP, Modbus TCP/IP, OPC UA, EGD, PROFINET, DNP3, IEC 61850 client, IEC 104 server and HART pass-through under supported firmware/configuration |
| Serial Interfaces | RS-232 and RS-485 |
| Serial Protocols | ASCII and Modbus RTU |
| Remote I/O | Up to 255 simplex devices with PNC001 |
| USB | One USB-A 2.0 |
| Energy Retention | IC695ACC400 pack with the approved interconnect cable |
| Operating Temperature | 0 to 60 °C |
| Approvals | UKCA, UL, cUL, RoHS, CCC, FCC, REACH, Class I Division 2 and ATEX Zone 2 |
| Platform Boundary | Confirm A-series versus B-series hardware, complete suffix and firmware |
System Integration
- Back up the project, flash, retained variables, certificates, users, Ethernet/serial settings and firmware.
- Record the complete IC695CPE310 suffix, backplane, network ports, serial wiring, energy pack and cable label.
- Define whether IC695ACC400 and IC695CBL001A are included, replaced or reused before purchasing.
- Verify A- versus B-series firmware, PAC Machine Edition, PNC/PNS and backplane compatibility before restore.
- Charge and test the energy pack, then validate I/O, networks, retained memory, protocols and machine interlocks.
Applications
- RX3i machine and process control with Gigabit Ethernet integration.
- Installed CPE310 systems requiring exact A- or B-series revision control.
- Controller replacement packages that include the energy pack and interconnect cable.
- PROFINET and multi-protocol plant-network modernization within the documented firmware boundary.
FAQ
Does an IC695CPE310 quotation automatically include IC695ACC400 and IC695CBL001A?
Not unless the supply scope says so. The existing title names all three, but the quotation must separately list controller, energy pack and cable quantities and revisions.
What is the most important compatibility check for IC695CPE310?
Identify whether the installed controller is A-series or B-series, then match firmware, PAC Machine Edition, backplane, PNC/PNS modules and energy-pack arrangement.
How should IC695CPE310 security material be preserved?
Export the validated project, network and OPC UA settings, certificates, trust relationships and user/access configuration through the approved secure backup process.
What test confirms the IC695ACC400 path is healthy with IC695CPE310?
After full charge and healthy diagnostics, perform a controlled power-loss and restart test to verify user-memory save and the intended controller recovery.
Which records should close an IC695CPE310 replacement?
Retain all three item labels where supplied, firmware, project checksum, network and serial tests, energy-pack status, power-loss result and final machine acceptance.
