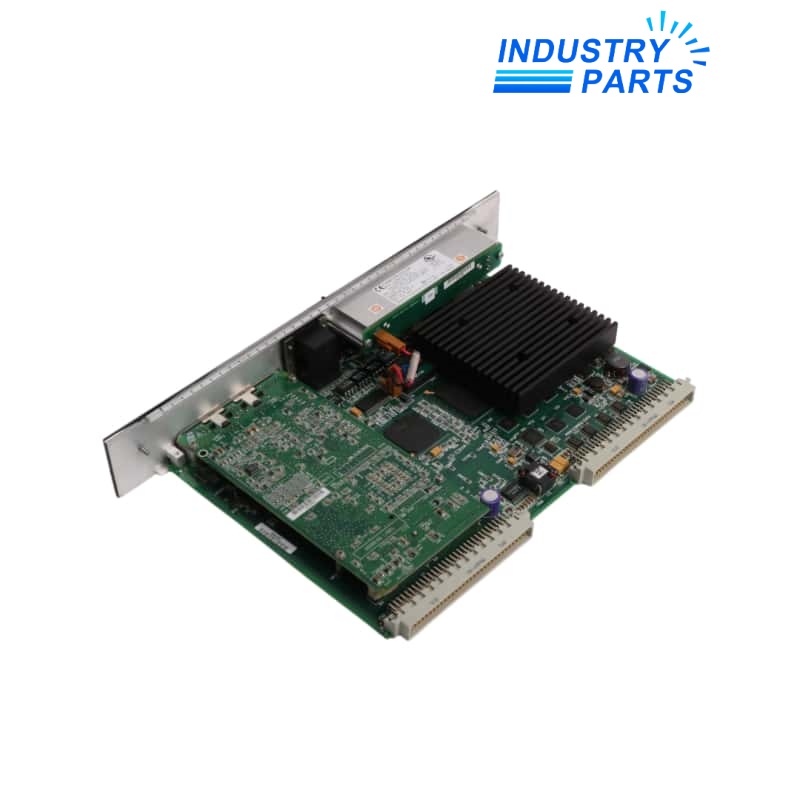

GE General Electric IC698CPE020 CPU Module
A PACSystems RX7i central processor retained by its exact catalog identity, installed rack context and Machine Edition project record.
Key Information
IC698CPE020 is a PACSystems RX7i CPU module. This draft preserves the title of the existing IndustryParts record and updates the page around the exact installed identity.
GE describes PACSystems as a common control engine and programming environment across controller platforms. Exact processor performance, memory allocation and firmware support must remain governed by the manufacturer manual for the installed hardware release.
For a controlled spare, submit the complete module label, rack and slot, firmware, Machine Edition project, installed communications and power-supply context.
Functions
Run the PAC application
Executes the approved RX7i control strategy and maintains the configured reference tables.
Coordinate rack resources
Operates with the installed RX7i rack, power supply and supported local modules.
Exchange controller data
Supports the communication paths configured in the approved PACSystems project.
Preserve diagnostics
Maintains fault-table and controller evidence required for service analysis.
Specifications
| Manufacturer | GE Fanuc | Exact model | IC698CPE020 |
|---|---|---|---|
| Product family | PACSystems RX7i | Product type | CPU Module |
| Programming environment | PAC Machine Edition / approved installed release | Selection evidence | Full label, firmware and rack record |
| Configuration evidence | Project backup and reference-table allocation | Communication evidence | Installed module and network inventory |
| Replacement authority | Approved RX7i hardware and firmware documentation | ||
Installation
Capture
Archive the project, reference-table allocations, fault tables, firmware, rack population and communication settings.
Inspect
Check rack connectors, power quality, module seating and cooling before introducing a replacement CPU.
Commission
Restore the validated project and confirm controller state, I/O exchange and every configured network.
Document
Retain the as-left firmware, checksum, diagnostics and functional-test results.
Lifecycle
- Existing-page control
- The original IndustryParts title is retained while the technical record is refreshed.
- Release discipline
- Do not infer compatibility from the RX7i family name; verify the exact CPU and firmware support.
- Original-unit custody
- Keep the removed CPU available until the replacement and application have passed acceptance.
FAQ
Q01What should accompany a IC698CPE020 quotation request?+
Send the complete CPU label, rack and slot, firmware, Machine Edition version, project backup, communication-module list and requested quantity.
Q02Can an RX3i CPU be treated as a direct replacement for IC698CPE020?+
No. RX7i and RX3i use related PACSystems concepts, but hardware, rack, I/O and migration requirements must be engineered.
Q03Which records should be saved before removing IC698CPE020?+
Archive the project, fault tables, reference memory, controller configuration, network settings and rack inventory.
Q04What rack conditions matter when installing IC698CPE020?+
Verify the approved power supply, connector condition, cooling, slot assignment and supported adjacent modules.
Q05What closes a IC698CPE020 replacement record?+
The exact hardware and firmware identity, successful project restore, stable diagnostics, verified I/O and completed machine tests provide acceptance evidence.
