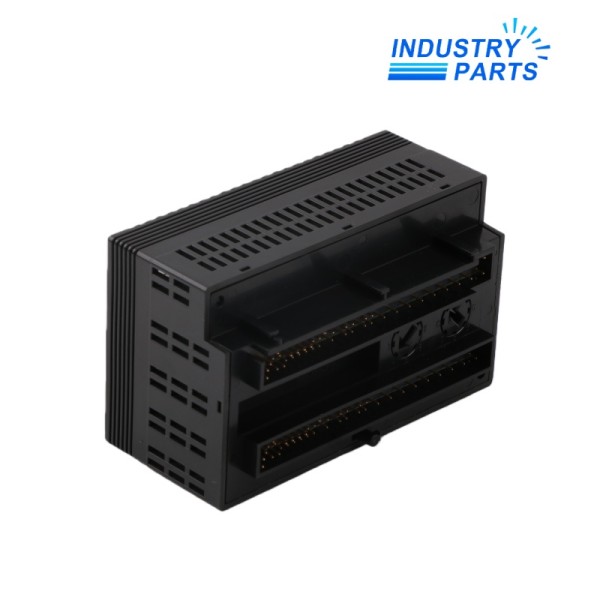

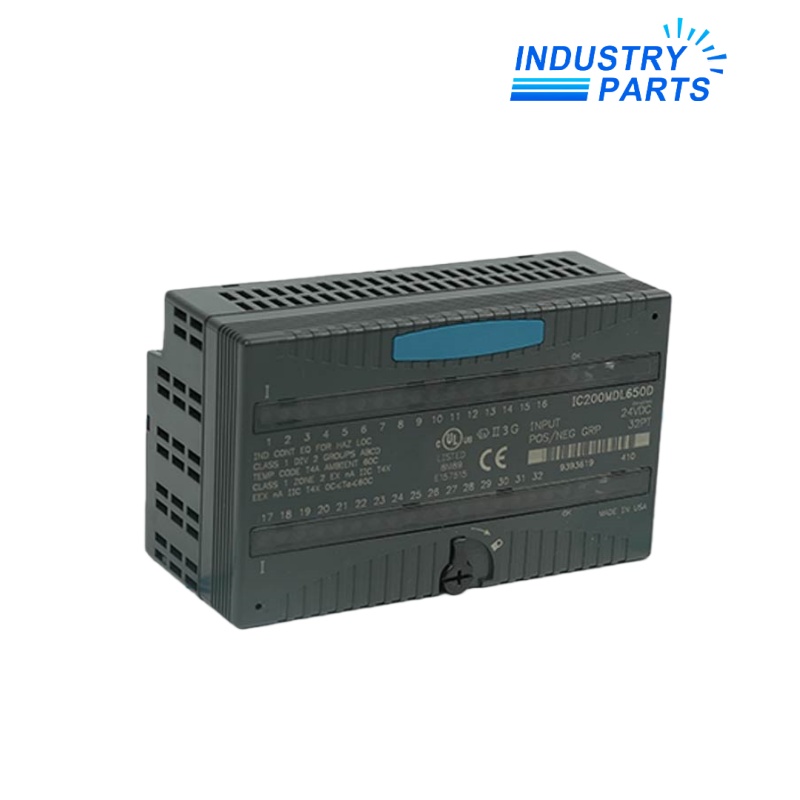

Emerson IC200MDL650 VersaMax 32-Point 24 VDC Input Module
A VersaMax discrete input module with 32 positive- or negative-logic 24 VDC points arranged as four groups of eight.
Product Overview
IC200MDL650 is the VersaMax 32-point discrete input module for 24 VDC positive- or negative-logic field signals. The inputs are arranged as four groups of eight.
The module is part of the carrier-based VersaMax I/O system. Selection must include the installed carrier, terminal plan, group commons and controller input map.
Performance
Acquire discrete field states
Transfers 32 documented 24 VDC input points to the controller.
Support grouped wiring
Organizes the input architecture as four groups of eight under the approved common arrangement.
Operate in a compact node
Fits the VersaMax modular carrier and network-interface architecture.
Technical Details
| Manufacturer | Emerson / GE Fanuc | Exact model | IC200MDL650 |
|---|---|---|---|
| Product family | VersaMax Modular I/O | Product type | Discrete Input Module |
| Input voltage class | 24 VDC | Logic compatibility | Positive or negative logic |
| Input points | 32 | Grouping | 4 groups of 8 |
| Installation boundary | Approved VersaMax carrier and terminal plan | ||
System Integration
Export the map
Save all input addresses, point names, logic convention and controller use.
Record group wiring
Photograph each common, terminal group, conductor number and carrier label.
Install safely
Isolate field and node power before fitting the exact module on the approved carrier.
Prove every point
Exercise all used inputs and verify polarity, state indication and controller response.
Applications
High-density discrete input
Collecting 32 documented field states in a compact VersaMax node.
Grouped panel wiring
Maintaining four eight-point groups with traceable commons and conductors.
Controlled module service
Restoring the exact input map without changing field logic conventions.
FAQ
Q01What wiring record should accompany a IC200MDL650 enquiry?+
Provide the carrier model, all 32 point assignments, group commons, field voltage and terminal photographs.
Q02Can IC200MDL640 replace IC200MDL650?+
No. The MDL640 has 16 points in two groups, so wiring density and project allocation are different.
Q03Why should logic convention be documented for IC200MDL650?+
The module supports positive- or negative-logic inputs, and the field wiring must match the installed convention.
Q04What should be tested after fitting IC200MDL650?+
Exercise every used point and confirm terminal state, module indication, controller address and machine response.
Q05What prevents a mismatched IC200MDL650 spare?+
The full module label, carrier identity, four-group wiring plan and controller map define the required assembly.
About IndustryParts
https://www.industryparts.com/Discrete input supply is checked against the complete point map
IndustryParts links the module identity, carrier, grouped wiring record and requested quantity before preparing a quotation.
- •Exact submitted model retained
- •Installed-system evidence reviewed
- •Requested quantity linked to the enquiry
Request a model-specific quotation
Send the complete IC200MDL650 label, requested quantity, delivery destination and installed-system context.
