Switches 32 DC field loads from the VersaMax controller output image.
Product Identification

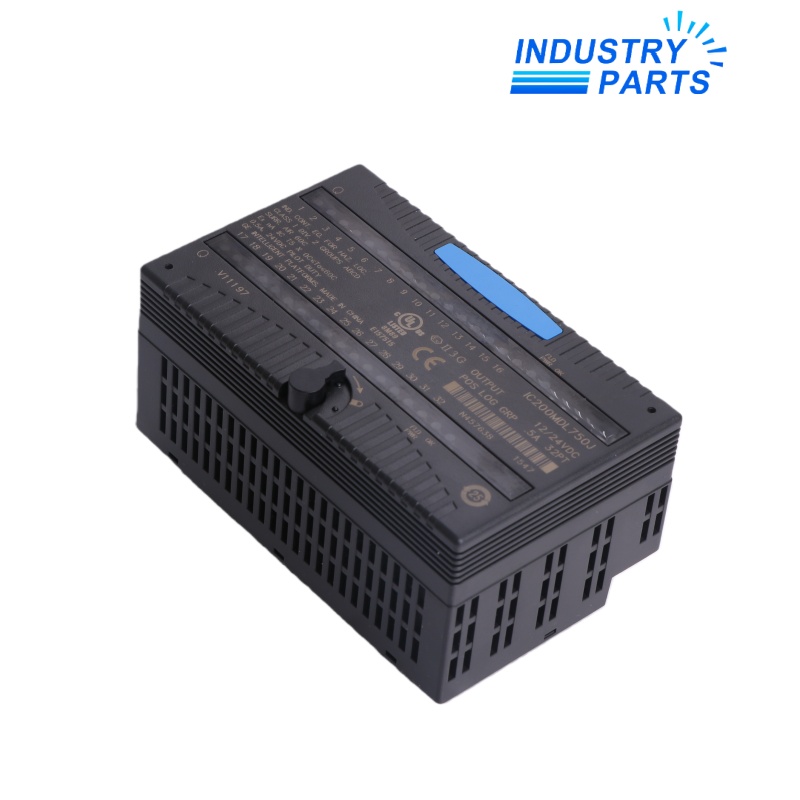

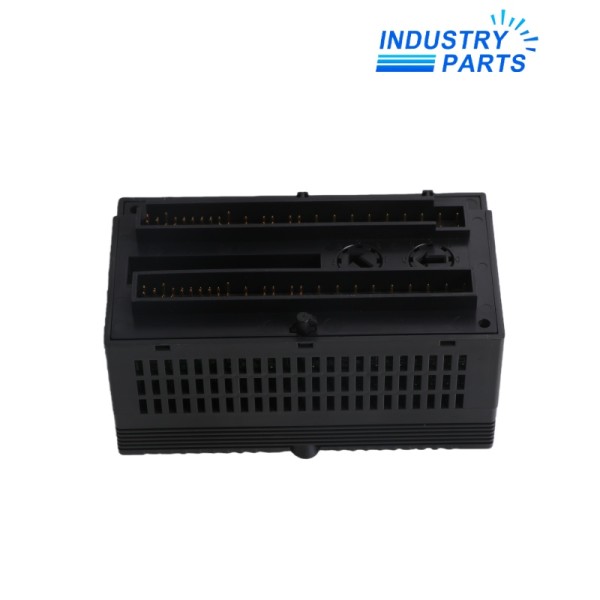

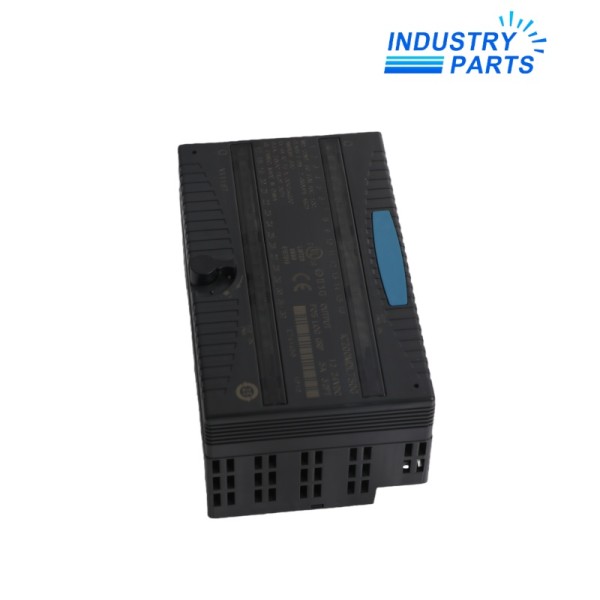

IC200MDL750 is an Emerson VersaMax output module providing 32 positive-logic DC outputs for 12/24 VDC field circuits. The outputs are arranged as two groups of sixteen, with a published 0.5 A per-point rating.
The base model IC200MDL750 is retained exactly. A letter-suffix execution such as IC200MDL750K is a separate revision record and should not be silently substituted on the page or purchase order.
Engineering Data
| Manufacturer | Emerson |
|---|---|
| Exact Model | IC200MDL750 |
| Product Family | VersaMax Modular I/O |
| Product Type | Positive-logic DC output module |
| Nominal Field Voltage | 12/24 VDC |
| Output Points | 32 |
| Output Grouping | Two groups of 16 |
| Per-Point Rating | 0.5 A per point |
| Revision Scope | Base model; no letter suffix supplied |
| Selection Basis | Exact module label, carrier, field supply and load plan |
Functions
Separates the output points into two documented groups of sixteen.
Provides positive-logic sourcing output behavior for compatible 12/24 VDC circuits.
Allows channel and group status to be checked during commissioning and maintenance.
Applications
- Solenoid, relay, indicator and other compatible 12/24 VDC control loads within the published channel limits.
- Compact machine I/O panels using a VersaMax modular station.
- Replacement of an installed base-model IC200MDL750 after carrier and field wiring are verified.
- Maintenance programs that preserve group supply, common and load records for all 32 points.
Lifecycle
- Record whether the installed module carries any revision suffix before ordering.
- Save the controller hardware configuration and map all 32 output points.
- Check group supply, commons, external protection and load inrush against the installation design.
- Inspect the carrier and terminal hardware when diagnosing a module fault.
- Function-test each output and its final field device before production release.
About IndustryParts
https://www.industryparts.com/Thirty-two outputs remain traceable by group
IndustryParts prepares IC200MDL750 with its 32-point positive-logic execution, carrier position and two output groups recorded.
- Base model retained
- Two groups mapped
- Load plan reviewed
FAQ
Can IC200MDL750K be treated as the same page as IC200MDL750?
No. K is a specific revision suffix; compatibility may exist, but the installed and supplied labels should remain explicit and separate.
What load data should be supplied for IC200MDL750?
Provide steady current, inrush, switching frequency, suppression method and group supply for each connected output type.
Why must both output groups be documented for IC200MDL750?
The 32 points are arranged as two groups of sixteen, so supply and common conditions can affect a full group rather than one point.
What should be checked if one group on IC200MDL750 is inactive?
Check group field power, common, protection, terminal connections, carrier seating and controller diagnostics before replacing the module.
How is a replacement IC200MDL750 accepted?
Force or command every point under the approved test plan and verify the final field load, feedback and safe-state behavior.
