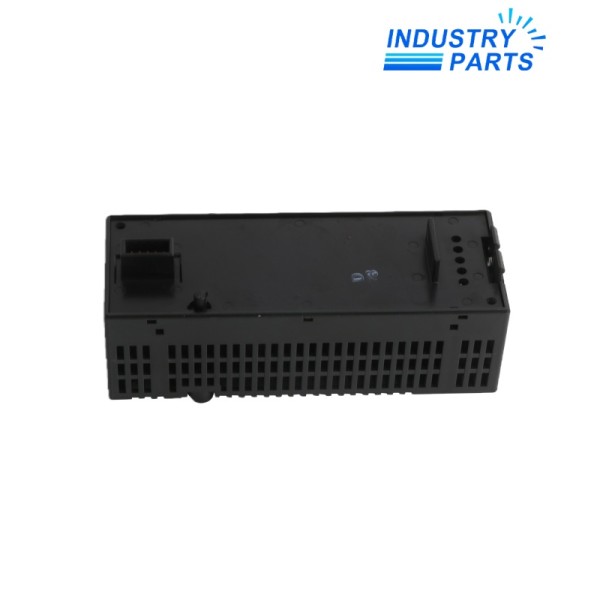

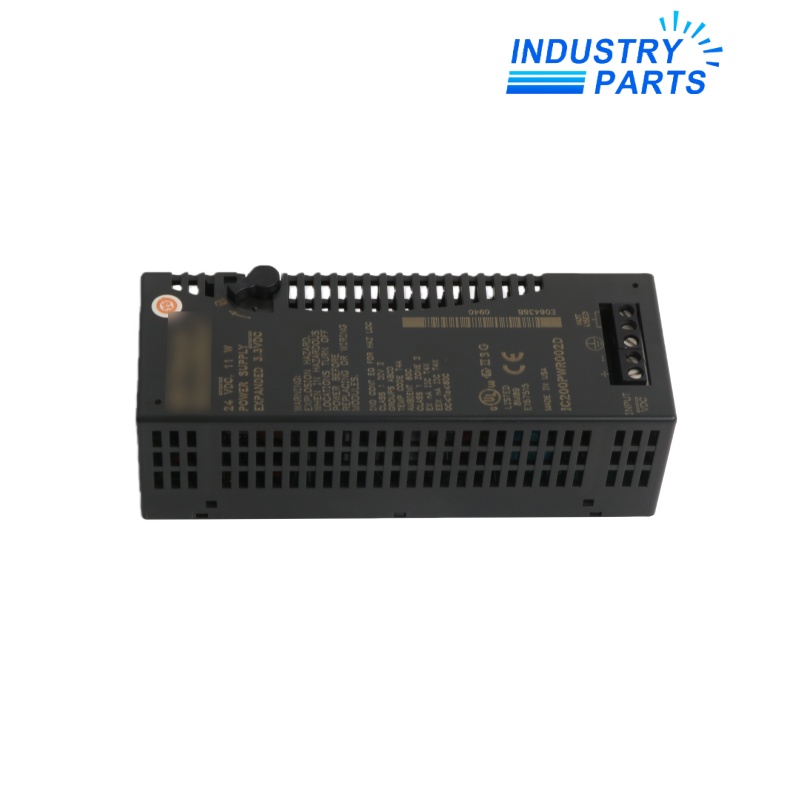

Emerson IC200PWR002 Expanded 3.3 V Power Supply, 24 VDC Input
A DC-input VersaMax power supply for a calculated rack and expansion load.
Product Overview
IC200PWR002 is the VersaMax 24 VDC-input power supply with expanded 3.3 VDC capacity. The exact catalog string contains no revision suffix in this request.
The supply belongs to a complete station power calculation. Incoming voltage tolerance, protection, conductor size, rack modules and any expansion interfaces must be documented before replacement.
It is not the IC200PWR102 AC-input version. Keeping that source distinction visible prevents a superficially similar power supply from entering the wrong panel.
Performance
DC source interface
Accepts the documented 24 VDC supply for a compatible VersaMax station.
Backplane distribution
Feeds the installed control and I/O modules within the calculated load boundary.
Expanded 3.3 V support
Provides the enhanced low-voltage capacity published for the base article.
System restart point
Establishes the power source whose recovery sequence affects controller and I/O recognition.
Technical Details
- Manufacturer
- Emerson
- Exact model
- IC200PWR002
- Product family
- VersaMax I/O
- Input source
- 24 VDC
- Published feature
- Expanded 3.3 VDC capacity
- Hardware role
- Rack power supply
- Requested suffix
- None
- Different AC-input article
- IC200PWR102
- Engineering record
- Source, protection and total rack load
- Acceptance scope
- Power status and full module recognition
About IndustryParts
https://www.industryparts.com/Exact-model handling for IC200PWR002
IndustryParts keeps the complete model label, requested quantity, application evidence and delivery requirements together so the proposed supply can be checked against the installed system before dispatch.
System Integration
Audit the 24 VDC feed
Check source capacity, polarity, protection, earth reference and conductor condition.
Rebuild the power budget
Calculate the demand of the CPU, I/O, communications and expansion modules in the actual station.
Observe startup
Energize in the approved sequence and confirm supply status, rack enumeration and stable field behavior.
Applications
DC control cabinets
Powering VersaMax stations from a regulated 24 VDC panel source.
Expanded-module racks
Supporting configurations that require the published increased 3.3 V capacity.
Source-preserving replacement
Maintaining the existing DC architecture during power-supply service.
FAQ
What must be calculated before ordering IC200PWR002?
Provide the full module list, expansion arrangement and 24 VDC source details so the rack load can be checked.
How does IC200PWR002 differ from IC200PWR102?
IC200PWR002 uses a 24 VDC input, while IC200PWR102 is the 120/240 VAC-input supply.
Why should the source protection be recorded for IC200PWR002?
Branch protection and conductor design define how the DC supply is isolated and how faults are contained during service.
Does the absence of a suffix permit any PWR002 revision for IC200PWR002?
The request identifies the base catalog only; the received label should still be reviewed against the installed system and purchase requirements.
What proves IC200PWR002 is ready after installation?
Confirm correct polarity, supply indication, controller and I/O recognition, stable communications and approved restart behavior.
