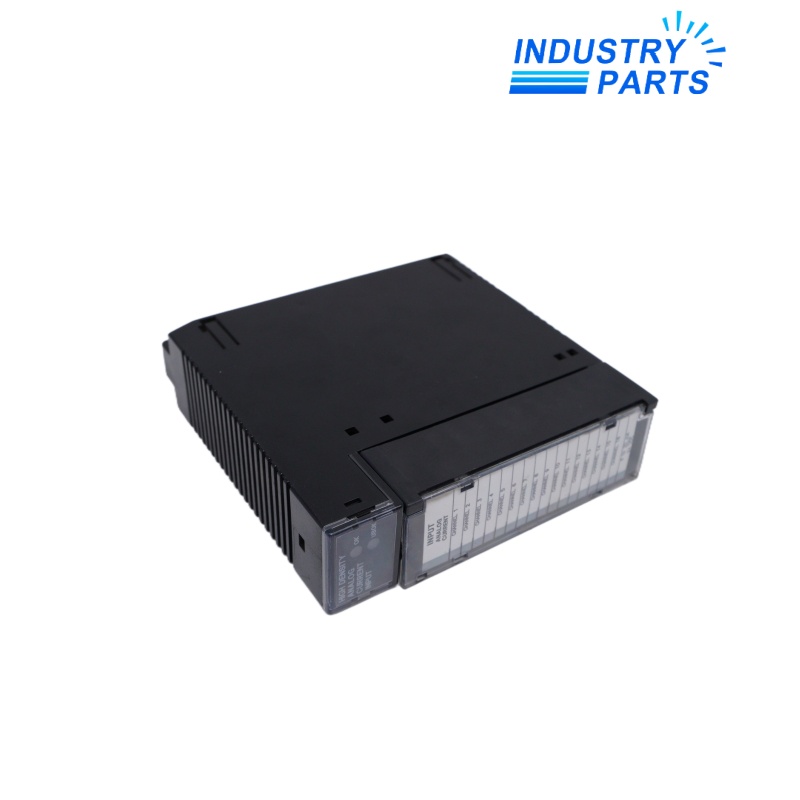

Emerson / GE Fanuc IC693ALG223 16-Channel High-Density Current Input Module
A Series 90-30 high-density module for sixteen single-ended analog current inputs.
Technical Summary
IC693ALG223 is the Series 90-30 high-density analog current input module with sixteen single-ended channels. The module supports documented 0–20 mA, 4–20 mA and enhanced current-range operation.
All channels share the module conversion and backplane path, so loop power, common reference, channel allocation, scaling and cable shielding must be retained with the exact terminal record.
Manufacturer documentation assigns the catalog to datasheet GFK-2655. Hardware revision, controller support and hot-insertion eligibility must be checked against the installed system manual rather than inferred from the base catalog alone.
Specifications
Features
Sixteen current loops
The high-density format consolidates sixteen single-ended process-current measurements.
Selectable current scaling
The configured range determines how 0–20 mA or 4–20 mA values map into the controller data table.
Channel diagnostics context
Open-loop and out-of-range behavior must be interpreted with the selected range and project logic.
Revision-controlled service
The complete label and hardware revision remain part of compatibility and insertion requirements.
About IndustryParts
https://www.industryparts.com/Exact-model handling for IC693ALG223
IndustryParts keeps the complete IC693ALG223 identity, requested quantity and installed-system evidence together so the proposed supply can be checked against the actual application before dispatch.
Compatibility
Rack platform
Confirm the Series 90-30 or supported RX3i rack, CPU firmware and module revision.
Loop architecture
Record loop power source, common reference, transmitter type, barriers, isolators and shields.
Project scaling
Retain the channel-enable map, range selection, %AI addresses and engineering-unit conversion.
Replacement
Evidence
Capture the full module label, terminal assembly, loop drawings and controller configuration.
Circuit check
Isolate loops as required and verify current-source polarity, commoning and field supply.
Channel proof
Inject traceable currents on every used point and confirm scaling, alarms and fault response.
FAQ
Is IC693ALG223 a voltage-input module?
No. IC693ALG223 is the sixteen-channel high-density current-input catalog; the related voltage-input catalog is IC693ALG222.
What range data must be supplied for IC693ALG223?
Identify every channel as 0–20 mA, 4–20 mA or the approved enhanced range, with raw scaling and engineering units.
Why is the 24 V DC supply relevant to IC693ALG223?
The module and field loops depend on the documented external supply arrangement, so capacity, polarity and common references must be checked.
Can any hardware revision of IC693ALG223 be inserted under power?
Do not assume so. Hot-insertion support depends on the rack, system rules and the exact module revision.
What commissioning record is appropriate for IC693ALG223?
Record calibrated current points, displayed engineering values, alarm transitions, open-loop behavior and the final channel map for all active inputs.
