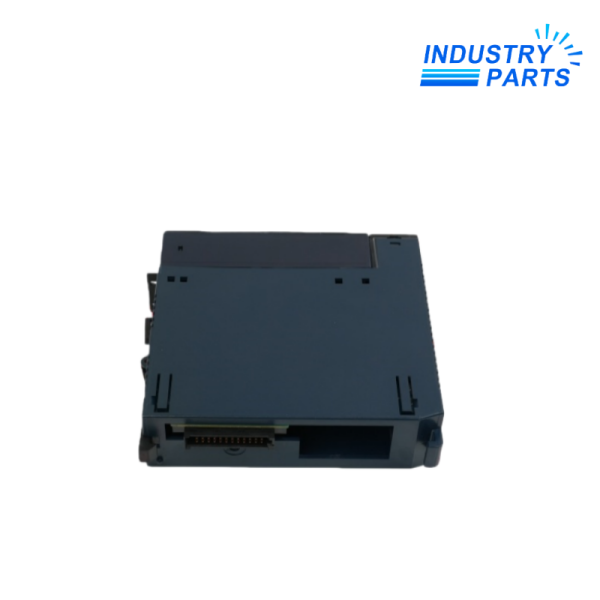

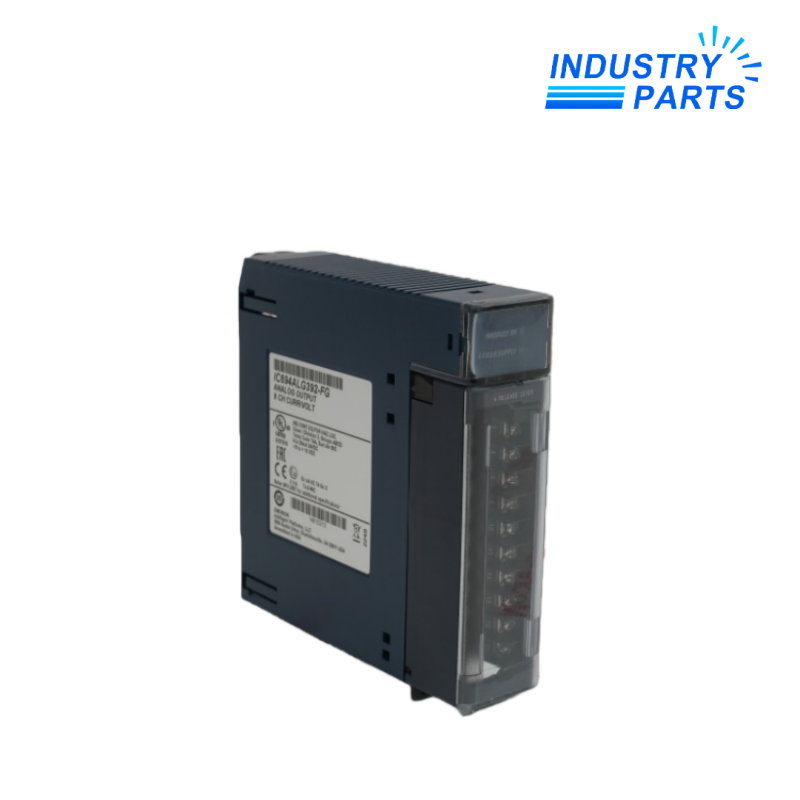

Emerson GE Fanuc IC694ALG392-FG PACSystems RX3i Eight-Channel Analog Output Module
An FG-suffix execution of the eight-channel RX3i current and voltage output module, prepared for channel-by-channel replacement control.
Overview
IC694ALG392-FG preserves the FG execution of the PACSystems RX3i IC694ALG392 analog output family. Emerson portfolio data identifies the base module as an eight-channel current/voltage analog output device; no public manufacturer table separately decodes FG, so the suffix remains an exact identity rather than an inferred feature claim.
Every channel can affect a downstream actuator, converter or indicator. The approved project, signal mode, span, terminal assignment and safe-state behavior are therefore captured before the installed unit is disturbed.
Specifications
Features
Eight controlled outputs
The family provides eight analog command paths in one RX3i module position.
Dual signal category
Channel configuration distinguishes current service from voltage service.
Revision-specific receipt
FG remains on purchase, inspection and installed-asset records.
End-to-end acceptance
Commanded values are compared with measured field values and receiving-device response.
Applications
Modulating final elements
Driving documented valves, positioners or converters through approved analog ranges.
Machine setpoint distribution
Providing analog references to supported drives or instrumentation.
Controlled spare exchange
Restoring an FG-labelled module from the approved rack and channel configuration.
Lifecycle
Freeze outputs
Place the process in an approved safe state and archive every channel command and fallback condition.
Transfer evidence
Photograph the FG label, terminal assembly, wire tags, commons and connected load identities.
Prove paths
Command approved test points and verify measured output, receiving-device indication, alarms and interlocks.
FAQ
Q01
Which records should accompany an IC694ALG392-FG quotation?
+
Provide the full FG label, rack and CPU, project release, channel modes, spans, loads, safe states and terminal photographs.
Q02
Can another IC694ALG392 suffix replace IC694ALG392-FG without review?
+
No. Shared family function does not prove identical revision support or site qualification.
Q03
How should unused IC694ALG392-FG outputs be treated?
+
Confirm their configured safe value and diagnostic behavior so an unconnected channel cannot create an unexpected command or fault.
Q04
What prevents polarity errors on IC694ALG392-FG?
+
Use the approved loop drawings, wire tags and terminal photographs, then verify polarity with field power isolated.
Q05
What closes IC694ALG392-FG commissioning?
+
Retain commanded-versus-measured results for all required channels together with diagnostics, alarms and interlock evidence.
About IndustryParts
https://www.industryparts.com/Exact identity before quotation
IndustryParts prepares IC694ALG392-FG enquiries around the complete manufacturer label, requested quantity and destination. For controlled replacements, include the host-system record, field photographs and configuration evidence that apply to this exact execution.
Send the complete IC694ALG392-FG label, requested quantity and destination.
