Per-channel mode selection
Each of the four channels is configured and wired for voltage or current operation.

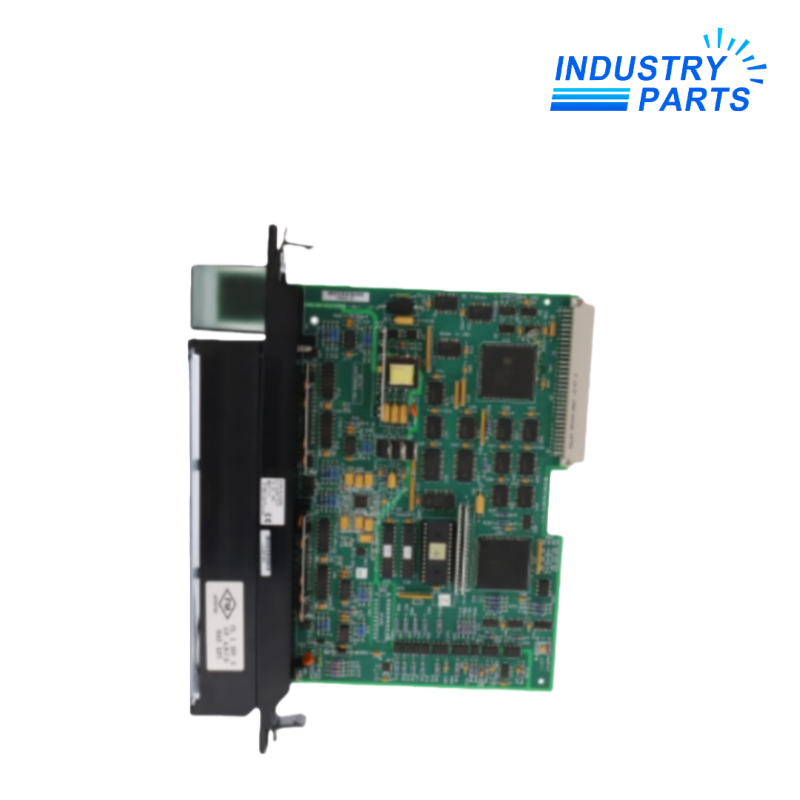

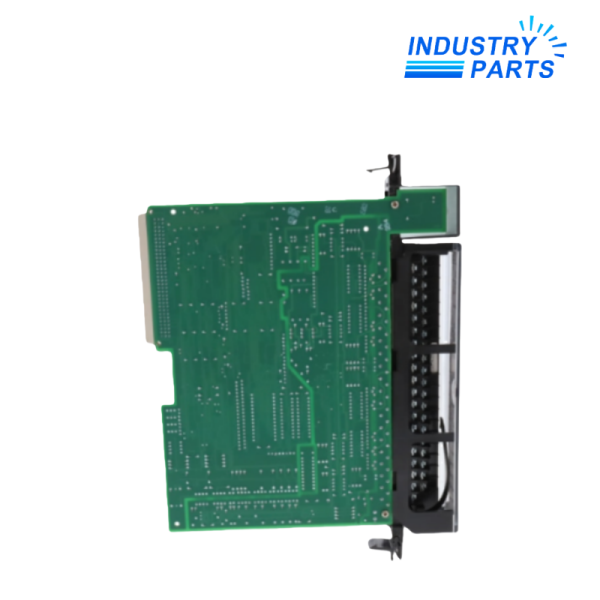

GE IC697ALG320J Analog Output Module
Item NO.: IC697ALG320J
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameGE IC697ALG320J Analog Output Module
- Item NO.IC697ALG320J
- Weight0.6600 kg = 1.4551 lb = 23.2808 oz
- CategoryDCS
- BrandGE General Electric
- Creation Time2025-11-04
Series 90-70 PLCJ-Revision High-Level Voltage / Current Analog Output Module
FOUR CONFIGURABLE OUTPUTS · VOLTAGE OR CURRENT · J REVISION
GE Fanuc IC697ALG320J Series 90-70 Four-Channel Analog Output Module
A four-channel Series 90-70 high-level analog output module with independently configured voltage or current operation.
PRODUCT CONTEXT
Product Profile
IC697ALG320J retains the J revision on the Series 90-70 IC697ALG320 high-level analog output module. Its four channels can be configured individually for supported voltage or current output operation.
The module stores factory calibration data in EEPROM and uses a removable 40-terminal field connector. The J suffix remains part of the hardware identity even though the published functional data applies to the IC697ALG320 base article.
CONTROLLED DATA
Technical Data
Manufacturer
GE Fanuc
Exact model
IC697ALG320J
Base catalog
IC697ALG320
Platform
Series 90-70 PLC
Hardware revision
J
Output channels
4
Output modes
Voltage or current, independently configured
Voltage ranges
±10 V and 0 to 10 V
Current ranges
0 to 22.5 mA and 4 to 20 mA
Resolution
16 bit with 14-bit monotonicity
Voltage step
312.5 µV per LSB
Current step
0.5 µA per LSB on 4 to 20 mA
Field connector
Removable 40-terminal block
Backplane load
1.66 A maximum at 5 V DC
Field supply
24 V DC typical for current outputs
OPERATING ROLE
System Role
01Per-channel mode selection02Stored factory calibration03Optical field isolation04Board-status indication
Stored factory calibration
Calibration constants are retained in module EEPROM.
Optical field isolation
The output field wiring is isolated from the backplane to reduce externally generated noise transfer.
Board-status indication
The module reports startup and configuration state through the BOARD OK indication.
SELECTION BOUNDARY
Compatibility
IC697ALG320J
Record both software range and physical wiring before the module or terminal block is disturbed.
Series 90-70 PLC
Retain the installed host, project and connection evidence that defines the approved use of this execution.
Verified field fit
Complete the model-specific checks described in the service sequence before return to operation.
FIELD USE
Applications
Analog command generation
Producing speed, position or process setpoints for documented field devices.
Mixed output requirements
Combining voltage and current commands across four independently configured channels.
Legacy Series 90-70 maintenance
Retaining the installed module revision, terminal block and channel map during service.
ArchiveSave the IC697ALG320J label, rack and slot, channel ranges, default values and 40-terminal wiring map.ExchangeIsolate backplane and field supplies, retain shield grounding and transfer the exact voltage/current terminals.CalibrateVerify each channel at appropriate low, mid and full-scale points before reconnecting the final device.
CUSTOMER QUESTIONS
FAQ
Q01
What should accompany an IC697ALG320J enquiry?
Provide the full J-revision label, rack and slot, channel ranges, terminal map, field-supply details and requested quantity.
Q02
Can every IC697ALG320J channel use a different signal mode?
Yes. The base module supports individual voltage or current configuration, but each channel wiring must match its selected mode.
Q03
Why must the 40-terminal block be documented for IC697ALG320J?
Voltage and current connections use different terminals, so a photograph and conductor map reduce transfer errors.
Q04
Can an RX3i analog module replace IC697ALG320J directly?
No direct drop-in exchange should be assumed; rack, module width, terminal mapping, response and project configuration require a documented migration plan.
Q05
What proves IC697ALG320J is ready after service?
Record output checks at multiple commanded values on every used channel and confirm the receiving devices respond correctly.
