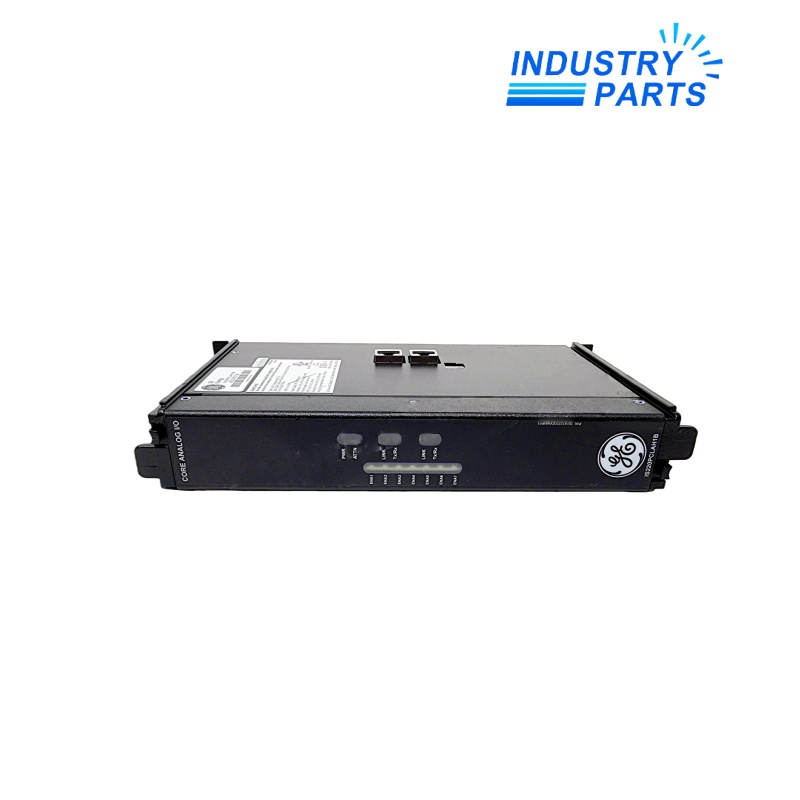

GE Vernova IS220PCLAH1A Mark VIe Core Analog I/O Pack
A PCLA core analog I/O pack for Mark VIe aero control systems with dedicated SCLS/SCLT terminal-board interfaces.
Key Information
IS220PCLAH1A is a GE SPEEDTRONIC Mark VIe PCLA core analog I/O pack used in turbine control, protection and monitoring assemblies. The model is identified in the Mark VIe controller system as an I/O pack built from an IS200BPPBH2B processor board and an IS200BCLAH1A processor board.
The approved accessory path uses IS210SCLSH1A and optional IS200SCLTH1A terminal boards. The complete H1A identity, installed terminal board, processor-board combination and controller configuration must remain together during replacement review.
Functions
- Conditions core analog field signals for the Mark VIe control application.
- Interfaces the documented SCLS and SCLT terminal-board hardware.
- Operates as a field-mounted I/O pack within a suitable control enclosure.
- Supports the Mark VIe controller communication and distributed I/O architecture.
- Provides a revision-controlled hardware boundary for turbine analog measurement and control.
Specifications
| Manufacturer | GE Vernova |
|---|---|
| Model | IS220PCLAH1A |
| Product Family | SPEEDTRONIC Mark VIe |
| Product Type | PCLA core analog I/O pack |
| Internal Processor Board | IS200BPPBH2B |
| Internal PCLA Board | IS200BCLAH1A |
| Primary Terminal Board | IS210SCLSH1A |
| Optional Terminal Board | IS200SCLTH1A |
| Nominal Supply | 28 VDC system supply |
| Hazardous-Location Marking | Ex nA nL IIC T4 under the documented installation conditions |
| Enclosure Requirement | Install in the enclosure and pollution environment required by the applicable approval |
| Thermocouple Cable Condition | Maximum 1000 ft where the approval condition applies |
| Field Apparatus Boundary | Only the permitted resistive simple apparatus may be connected under the approval |
| Identity Control | Retain H1A, internal board identities and terminal-board combination |
Installation
- Record the complete IS220PCLAH1A label, enclosure, terminal-board models, cable routing and controller position before removal.
- Confirm whether IS210SCLSH1A alone or the optional IS200SCLTH1A arrangement is installed.
- Verify the certified enclosure, power-distribution path, supply limitation and hazardous-area conditions before energization.
- Restore channel configuration from the approved Mark VIe project rather than copying assumptions from a similar PCLA pack.
- Prove every connected analog loop, diagnostics, alarms, controller communication and protection response before service release.
Lifecycle
- Keep IS220PCLAH1A, both internal board identities and the installed terminal-board combination in one asset record.
- Review GE Vernova Mark VIe maintenance guidance for enclosure cleaning, temperature control, terminal checks and diagnostic-log review.
- Photograph labels and cable positions during each planned outage so a future spare can be matched without ambiguity.
- Treat any PCLA hardware-group or terminal-board change as an engineered compatibility review.
FAQ
What must be supplied to quote IS220PCLAH1A without a terminal-board mismatch?
Provide the complete IS220PCLAH1A label, IS210SCLSH1A and optional IS200SCLTH1A identities, cabinet location, connector photographs and the Mark VIe project hardware list.
Can IS220PCLAH1A be replaced by another Mark VIe analog pack with similar connectors?
No visual substitution is safe. The I/O pack function, internal boards, terminal board, approved configuration and controller software must all match the engineered system.
Which hazardous-area records should accompany an IS220PCLAH1A order?
Include the site area classification, enclosure certification, ambient and pollution conditions, power-distribution method, field-device type and applicable approval revision.
What should be checked before reusing the terminal board with IS220PCLAH1A?
Inspect connector condition, terminal torque, shield and grounding arrangement, field wiring, contamination and any evidence of surge or overheating before pairing it with the replacement pack.
What acceptance evidence should close an IS220PCLAH1A replacement?
Retain the old and new labels, project hardware record, power checks, channel calibration results, diagnostic status, alarm/protection tests and final controller communication result.
