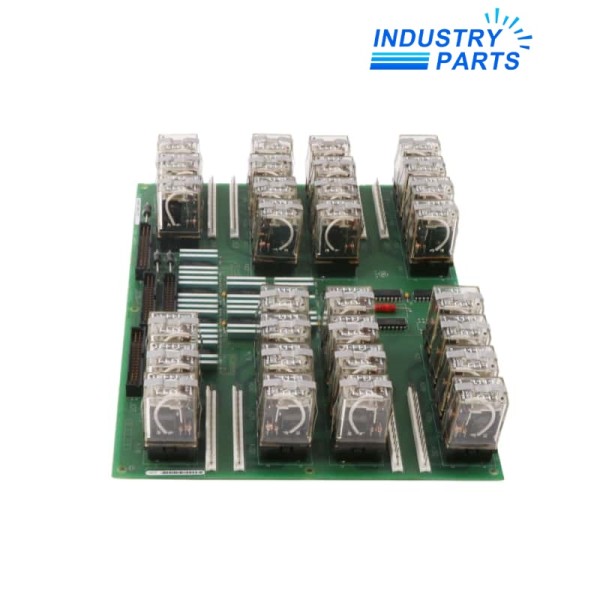

General Electric DS200TCRAG1ACC DS200TCRAG1ABC Relay Output Board

General Electric DS200TCRAG1ACC DS200TCRAG1ABC Relay Output Board

Product Information

Product Name: General Electric DS200TCRAG1ACC DS200TCRAG1ABC Relay Output Board

Model: DS200TCRAG1ACC

Spare Model: DS200TCRAG1A

Spare Model: DS200TCRAG1ABC

Product Parameters: Relay Output Board

Estimated Shipping Size: 28x21.3x5.5 cm

Manufacturer: General Electric

Weight: 1.6 kg

Number of Relays: 16 Form-C (SPDT) dry contacts

Contact Rating: 5 A @ 30 VDC; 5 A @ 250 VAC

Minimum Switching Load: 10 mA @ 5 VDC

Coil Voltage: 24 VDC nominal

Isolation: 1500 V RMS

Logic Power Supply: +5 VDC

Operating Temperature: –20 °C to +60 °C

Storage Temperature: –40 °C to +85 °C

Relative Humidity: 5% to 95% non-condensing

Place of Shipment: Xiamen, China

Delivery Time: 1-3 days

Quantity: 100% New Original

Minimum Order Quantity: 1pc

Shipping Method: DHL\UPS\Fedex\EMS\Others

Orders and Details

Manager: Leonia

Email: sales@mvme.cn

Whatsapp: +8618030175807

Core & Professional

Q&A

Q1: What is the General Electric DS200TCRAG1ACC DS200TCRAG1ABC and what is it used for?

A1: The General Electric DS200TCRAG1ACC DS200TCRAG1ABC is a Relay Output Board designed to control multiple external devices using 16 Form-C (SPDT) dry contact relays. It converts logic signals from a control system into electrical switching actions for devices such as motors, alarms, and actuators.

Q2: What are the features and differences of the General Electric DS200TCRAG1ACC DS200TCRAG1ABC?

A2: The General Electric DS200TCRAG1ACC DS200TCRAG1ABC features 16 Form-C relays with a 5 A contact rating at both 30 VDC and 250 VAC, 24 VDC coil voltage, and 1500 V RMS isolation. The DS200TCRAG1ABC is a spare version compatible with the main DS200TCRAG1ACC board. Both versions operate with a +5 VDC logic power supply and support a wide temperature range from –20 °C to +60 °C.

Q3：How many devices can the General Electric DS200TCRAG1ACC DS200TCRAG1ABC control?

A3: The General Electric DS200TCRAG1ACC DS200TCRAG1ABC can control up to 16 devices simultaneously through its 16 Form-C relay outputs, providing reliable switching for various industrial applications.

Q4: In which industries is the General Electric DS200TCRAG1ACC DS200TCRAG1ABC typically used?

A4： The General Electric DS200TCRAG1ACC DS200TCRAG1ABC is commonly used in industrial automation, power generation, and turbine control systems where multiple relay-controlled devices need precise and reliable operation.
