HONEYWELL CC-PAOH51 51410070-275 Analog Output Module

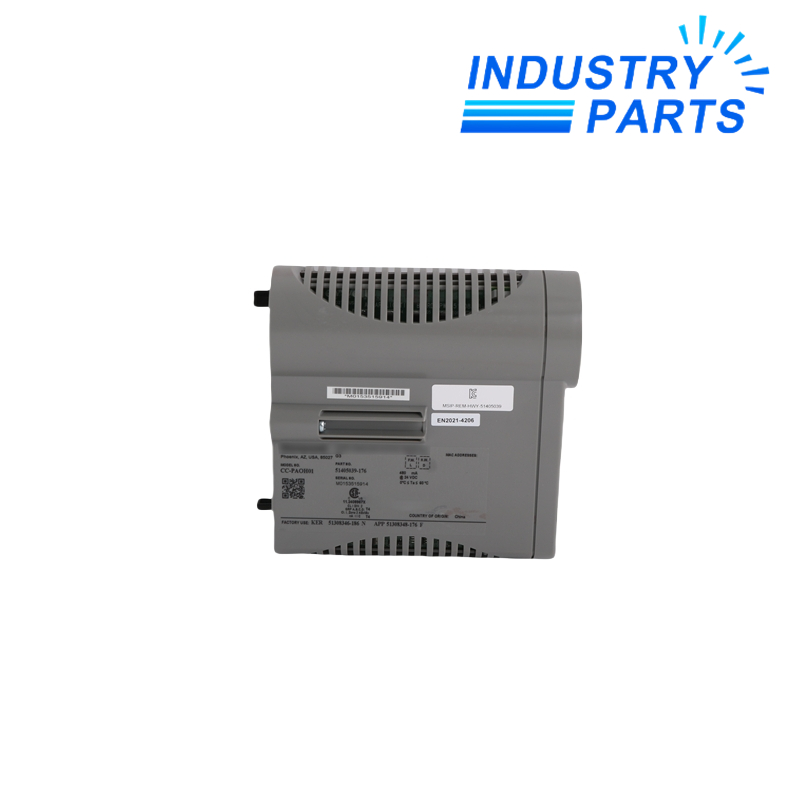

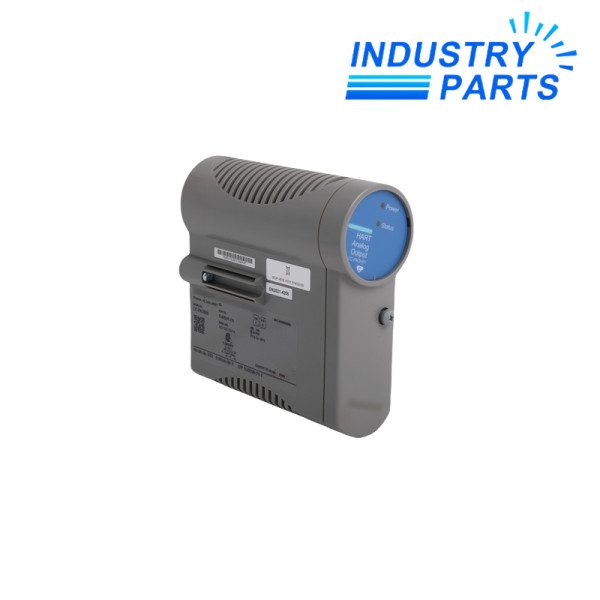

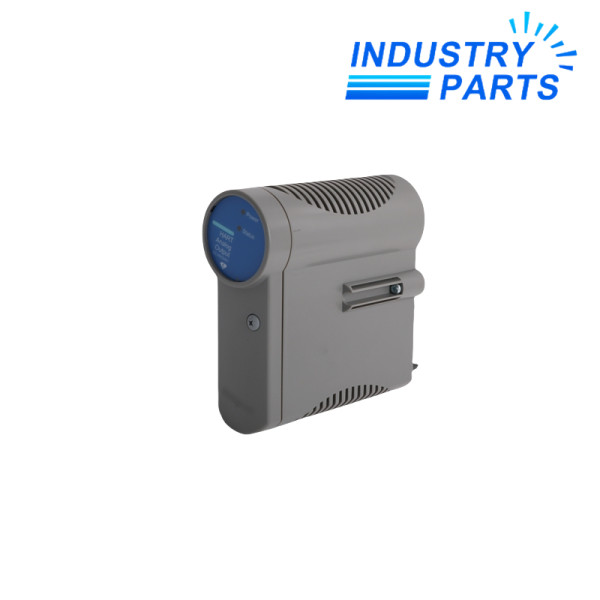

HONEYWELL CC-PAOH51 51410070-275 Analog Output Module

Item NO.: CC-PAOH51 51410070-275
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameHONEYWELL CC-PAOH51 51410070-275 Analog Output Module
  • Item NO.CC-PAOH51 51410070-275
  • Weight0.0000 kg = 0.0000 lb = 0.0000 oz
  • CategoryDCS
  • BrandHoneywell
  • Creation Time2025-02-13
  • Honeywell Series C 16-channel high-level analog output module with HART communication.
Honeywell Series C HART Analog Output

HONEYWELL CC-PAOH51 51410070-275 Analog Output Module

A 16-channel 4–20 mA constant-current output module for actuators and recording or indicating devices, with HART support.

Product Overview

CC-PAOH51 is Honeywell’s Series C High-Level Analog Output I/O module with HART. It delivers constant-current outputs to field actuators and to recording or indicating devices.

The module includes extensive diagnostics and supports optional redundancy. HART communication is used for device status and configuration.

Performance

  • Sixteen independently controlled 4–20 mA output channels.
  • Per-channel FAILOPT behavior can be configured to hold the last value or shed to a safe value.
  • Output is driven to zero if the IOM electronics fail.
  • Open-wire detection reports a Channel Soft Failure.
  • Non-incendive output circuits support the documented hazardous-area arrangement.

Technical Details

Parameter Official value
Model / part number CC-PAOH51 / 51410070-275
Output channels 16
Output range 4–20 mA
Directly settable current 0 mA or 2.9–21.1 mA
Calibrated accuracy at 25 °C ±0.35% of full scale, including linearity
Current linearity ±0.05% of full scale nominal
Resolution ±0.05% of full scale
Readback accuracy ±4% of full scale
Drift 0.005% of full scale per °C
Maximum resistive load 800 Ω with 22–28 VDC supply
Maximum compliant voltage 16 V
Maximum open-circuit voltage 22 V
Ripple Less than 100 mV peak-to-peak at power-line frequency across 250 Ω

System Integration

Architecture Required IOTA
Non-redundant installation CC-TAOX51, 6-inch IOTA
Redundant installation CC-TAOX61, 12-inch IOTA

Use the Honeywell control strategy and FAILOPT configuration to define the required response for each output channel. Confirm controller release, IOTA selection and terminal assignments before commissioning.

Applications

  • Control-valve positioners requiring 4–20 mA commands.
  • Actuator references and other current-driven final control elements.
  • Recording and indicating devices in process-control systems.
  • HART-enabled field-device status and configuration workflows.

FAQ

Question Answer
How many outputs are provided? Sixteen 4–20 mA channels.
Does CC-PAOH51 support HART? Yes. Honeywell documents HART status and configuration support.
Which IOTA is used for redundancy? CC-TAOX61, the 12-inch redundant IOTA.
What happens after an electronics failure? The output is driven to zero; normal FAILOPT behavior is configured per channel for hold-last-value or safe-value action.
