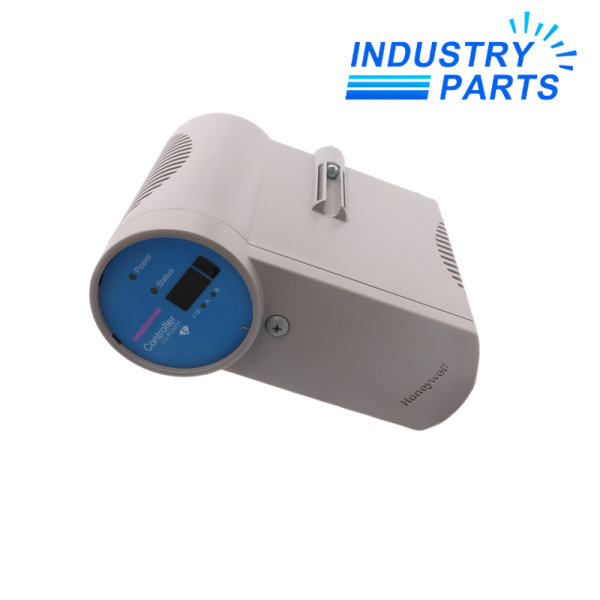

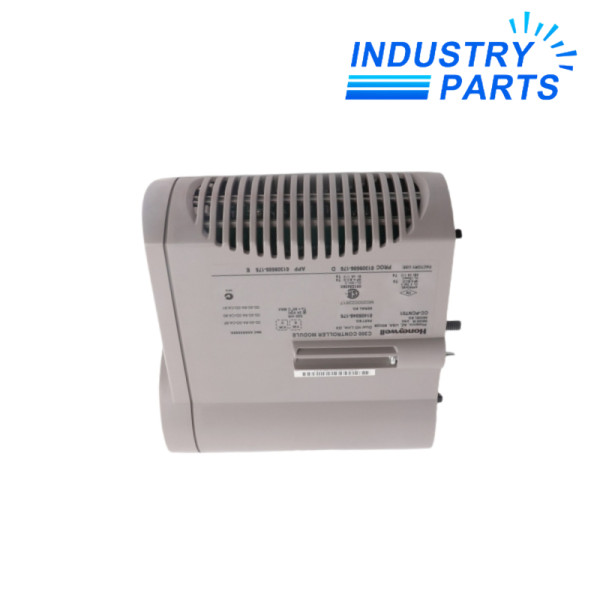

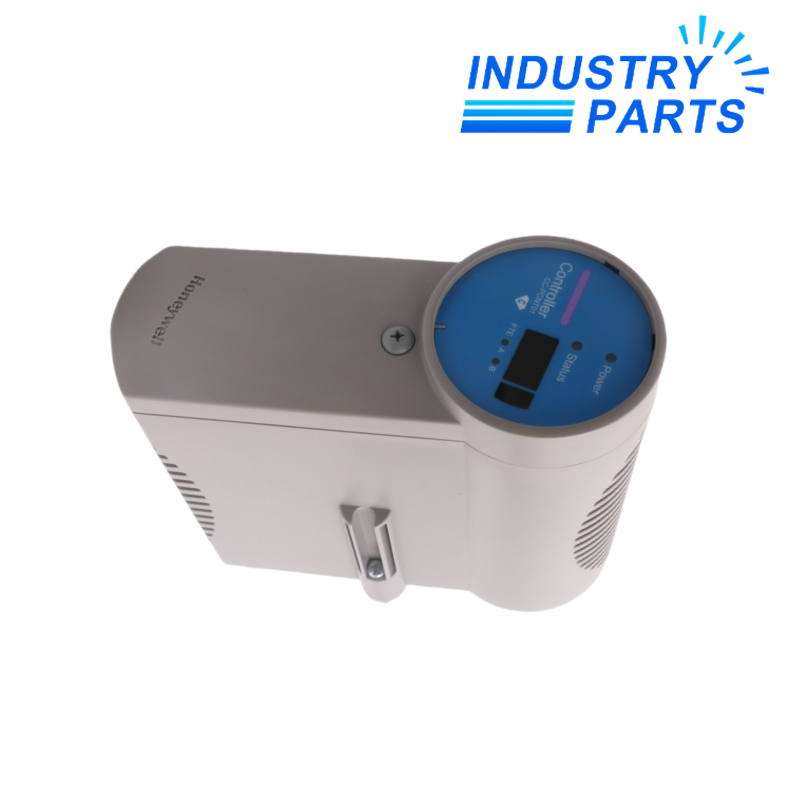

Honeywell CC-PCNT01 51405046-175 C300 Controller Module
A Series C C300 controller module that executes Experion control strategies and coordinates its configured I/O and peer communications.
Overview
Honeywell CC-PCNT01 51405046-175 is a C300 controller module for the Experion PKS platform. It runs the deterministic Control Execution Environment used for configured Control Modules and Sequential Control Modules.
The controller supports two I/O links. A standard 50 ms CEE can use Series C I/O at 750 Kbaud or PM I/O at 375 Kbaud, while the optional 20 ms CEE supports Series C I/O only and requires the applicable firmware and license.
C300 redundancy is supported when the correct redundant hardware, cable, odd-even device pairing and common project configuration are present. The controller database, device index, release and I/O-link layout are therefore part of the spare identity.
Specifications
Features
Deterministic execution
CEE schedules configured control strategies on the approved base-period structure.
Dual I/O-link architecture
Two links connect the controller to the documented Series C or supported PM I/O population.
Controller redundancy
A matched pair can provide the project-defined redundant controller arrangement.
Engineering integration
Control Builder provides the environment for controller, control-strategy and I/O configuration.
Applications
Continuous process control
Executing regulatory, logic and supervisory strategies in an Experion PKS system.
Batch and sequence control
Running approved sequential modules and plant operating logic.
Redundant controller service
Maintaining an installed C300 pair with matched hardware, project release and device indexing.
Lifecycle
Archive
Save the Experion database, controller checkpoint, device index, firmware, CEE type and complete I/O-link inventory.
Match
Compare CC-PCNT01 51405046-175, IOTA, redundancy hardware, FTE connection and release support before the outage.
Return
Load only the approved project, then verify synchronization, redundancy, peer data, I/O links, control execution and alarms.
About IndustryParts
https://www.industryparts.com/Documented handling for CC-PCNT01 51405046-175
IndustryParts keeps the exact model, requested quantity, installed-system evidence and delivery record together so the proposed supply can be checked against the real application before dispatch.
FAQ
What must be included with a CC-PCNT01 51405046-175 controller enquiry?
Provide both controller and IOTA labels, Experion release, CEE type, device index, redundancy arrangement, I/O-link inventory and clear FTE connection photographs.
Can the 20 ms CEE option be assumed for every CC-PCNT01 51405046-175 installation?
No. Honeywell identifies it as an optional, licensed configuration with specific I/O restrictions; the installed project record must confirm its use.
How should a redundant CC-PCNT01 51405046-175 pair be prepared for replacement?
Capture the odd-even device pairing, synchronization state, redundancy cable, both hardware revisions, project checkpoint and site switchover procedure.
What distinguishes the two I/O-link rates used by CC-PCNT01 51405046-175?
Series C I/O uses 750 Kbaud, while supported PM I/O uses 375 Kbaud in the 50 ms configuration. The actual link population must be recorded.
What proves CC-PCNT01 51405046-175 is ready after controller service?
Verify stable FTE communication, correct device index, loaded project and checkpoint, I/O-link health, peer exchanges, redundancy synchronization and control-loop response.
