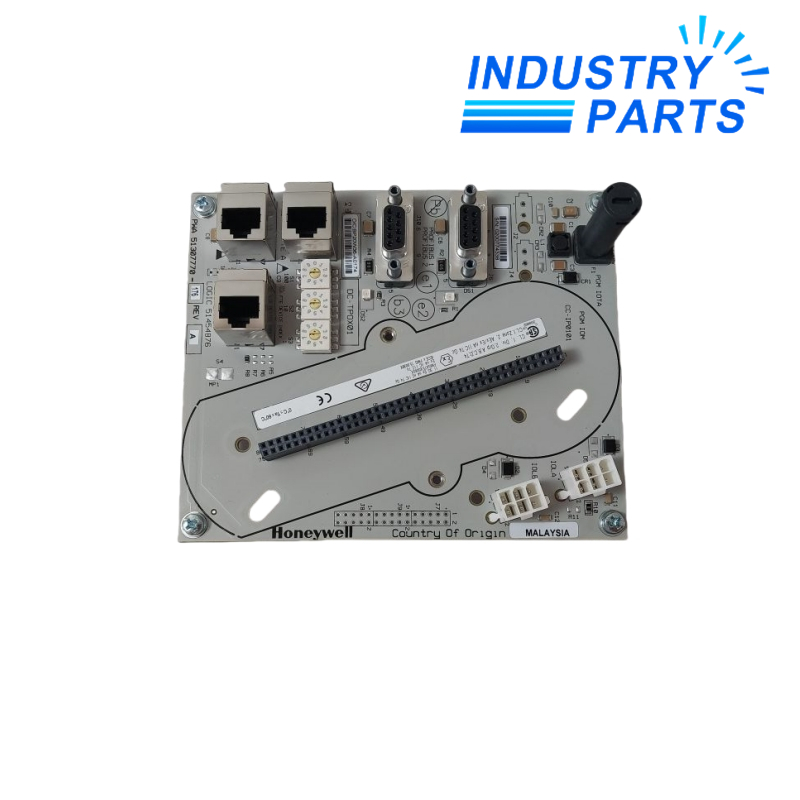

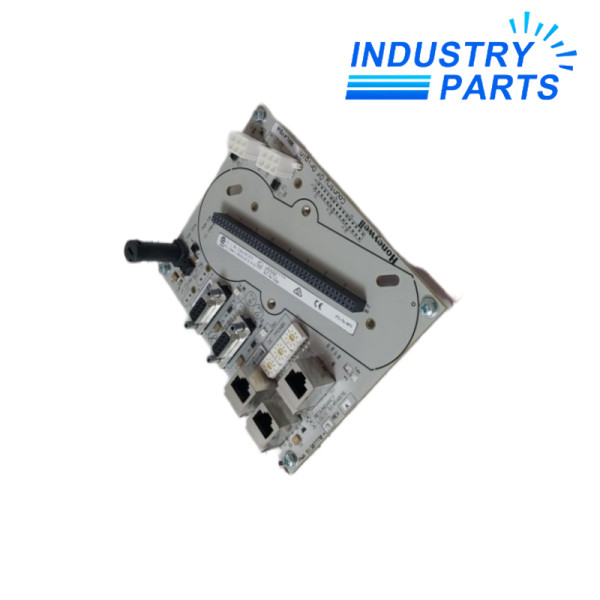

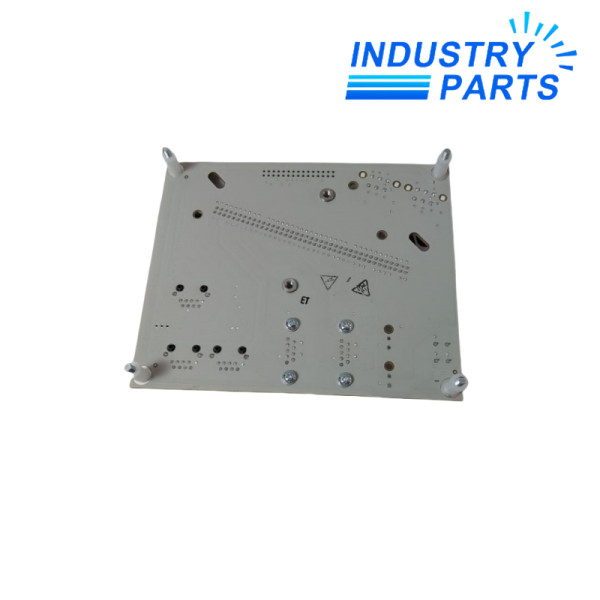

HONEYWELL CC-TPOX01 51306528-175 Profibus Controller Card

HONEYWELL CC-TPOX01 51306528-175 Profibus Controller Card

Item NO.: CC-TPOX01
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameHONEYWELL CC-TPOX01 51306528-175 Profibus Controller Card
  • Item NO.CC-TPOX01
  • Weight0.0000 kg = 0.0000 lb = 0.0000 oz
  • CategoryDCS
  • BrandHoneywell
  • Creation Time2025-01-08
  • Series C PROFIBUS Gateway Module IOTA for the CC-IP0101 gateway electronics.
Honeywell Industrial Automation

HONEYWELL CC-TPOX01 51306528-175 Profibus Controller Card

Series C PROFIBUS Gateway Module IOTA for the CC-IP0101 gateway electronics.

Technical Summary

Honeywell CC-TPOX01 is the Series C IOTA used with the CC-IP0101 PROFIBUS Gateway Module. It is the termination and mounting assembly, while CC-IP0101 provides the gateway processing.

The PGM architecture links PROFIBUS DP networks to the C300 control environment. The IOTA provides the cabinet interfaces used for FTE, the PROFIBUS network connectors, device indexing, power and the redundancy interconnection.

A non-redundant gateway uses one IOTA and one PGM. Redundant architecture uses two complete IOTA/PGM assemblies and the approved synchronization cable.

Specifications

Model CC-TPOX01
Product form PROFIBUS Gateway Module IOTA
Paired gateway module CC-IP0101
Platform Experion PKS Series C
Nominal form factor 6-inch IOTA
PROFIBUS network connectors Two 9-pin D-sub female connections
FTE connections FTE A and FTE B CAT5e interfaces
Redundancy connection Dedicated synchronization-cable interface
Device addressing Three rotary device-index switches
Gateway network role PROFIBUS DP master through the installed PGM
Redundancy Supported with two complete PGM/IOTA assemblies
Power and grounding Through the approved Series C header-board and cabinet arrangement
Series family Experion PKS Series C
Installation environment Industrial control cabinet
Series C internal ambient limit 0 to 60 °C
Transportation and storage limit -40 to 85 °C
Relative humidity 5 to 95%, non-condensing
Enclosure classification IP20 / NEMA 1 when installed as specified

Features

  • Physical mounting and termination platform for CC-IP0101.
  • Two PROFIBUS DP network connections.
  • Dual FTE interfaces for the installed gateway module.
  • Device-index switches for FTE node identification.
  • Synchronization interface for redundant PGM architecture.
  • Series C cabinet power and grounding integration.
  • Local or remote PGM cabinet deployment within the qualified FTE design.

Compatibility

  • Pair CC-TPOX01 with the approved CC-IP0101 gateway module revision.
  • Use approved PROFIBUS cable, connectors, termination and segment design.
  • For redundancy, duplicate the module/IOTA assembly and install the correct synchronization cable.
  • Confirm the Experion release and PGM firmware before loading device-support blocks.
  • Keep primary and backup FTE device indexes in the approved odd/even relationship.

Replacement & Lifecycle

CC-TPOX01 is not interchangeable with a standard analog or digital I/O IOTA. Its connectors and gateway role are specific to the PGM architecture.

When replacing the IOTA, retain the PROFIBUS network mapping, FTE index, redundancy relationship and device-support configuration.

If a newer PGM platform is considered, review the complete module, IOTA, firmware, Experion and network migration scope rather than replacing only the base.

Applications

  • PROFIBUS DP device integration with C300.
  • Local PGM installations in the C300 cabinet complex.
  • Remote PGM installations over FTE.
  • Redundant PROFIBUS gateway pairs.
  • Integration of qualified drives, remote I/O and intelligent field devices.

FAQ

Q1. Is CC-TPOX01 the PROFIBUS gateway processor?
No. It is the IOTA. CC-IP0101 is the gateway electronics module.
Q2. How many PROFIBUS networks are connected?
The PGM IOTA architecture provides two PROFIBUS DP network connectors.
Q3. Can it be configured redundantly?
Yes. Redundancy uses two PGM/IOTA assemblies and a synchronization cable.
Q4. How is the gateway connected to Experion?
The installed PGM operates as an FTE node and interfaces with the C300 environment.
Q5. What must be preserved during replacement?
Preserve the FTE index, DP network assignment, baud rate, slave configuration, device-support blocks and redundancy settings.
Q6. Can an analog-output module be installed on this IOTA?
No. The IOTA is intended for the approved PROFIBUS Gateway Module family.

Product Enquiry

For availability, revision matching and quantity support, contact the IndustryParts sales team with the exact model and installed system revision.

Email: sales@mvme.cn    WhatsApp: +86 18030175807
