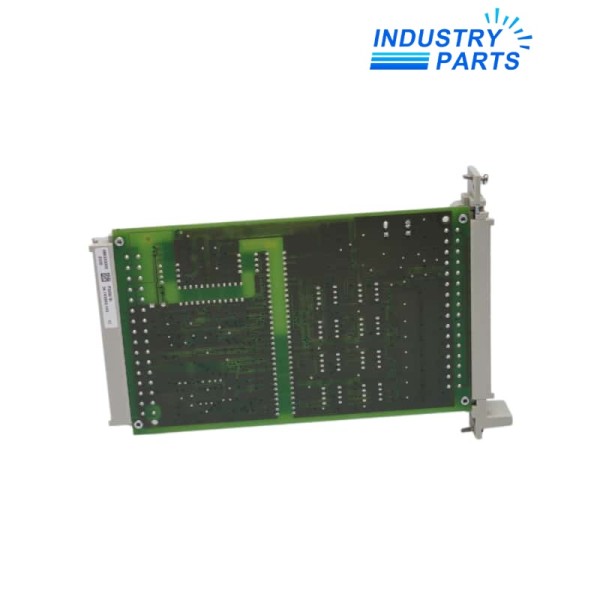

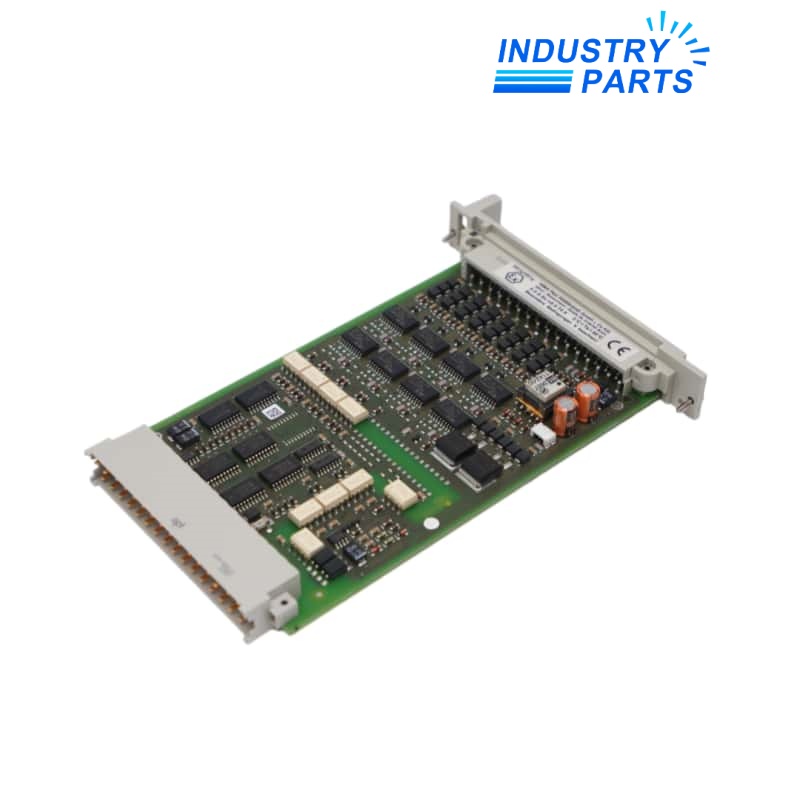

Hima F3330 8-Channel Output Module

Hima F3330 8-Channel Output Module

Product Information

Product Name: Hima F3330 8-Channel Output Module

Product Model: F3330

Spare Model: F 3330

Product Parameters: Output Module

Estimated Shipping Size: 2 × 19 × 12.8 cm

Manufacturer: HIMA

Weight: 0.14 kg

Outputs: 500 mA

Internal Voltage Drop (max.): 2 V at 500 mA load

Admissible Line Resistance (in + out, max.): 11 Ohm

Undervoltage Tripping: ≤ 16 V

Short Circuit Current Operating Point: 0.75–1.5 A

Output Leakage Current (max.): 350 µA

Output Voltage (reset state max.): 1.5 V

Test Signal Duration (max.): 200 µs

Space Requirement: 4 TE

Operating Data: 5 V DC: 110 mA

Country of Origin: Germany

Place of Shipment: Xiamen, China

Delivery Time: 1-3 days

Quantity: 100% New Original

Minimum Order Quantity: 1pc

Shipping Method: DHL\UPS\Fedex\EMS\Others

Why Customers Trust Us

We are committed to providing fast, reliable delivery of high-quality industrial automation parts, including both new and discontinued components. As an independent distributor, we offer a wide range of sourcing solutions to meet diverse industrial needs. We understand that minimizing downtime is critical to your operations, so we focus on efficient supply and prompt delivery to keep your systems running smoothly. Built on trust, reliability, and customer-first service, we aim to establish long-term partnerships and consistently deliver a dependable customer experience you can rely on.

Order & Inquiry

Stock status may change daily.

Contact us now to confirm real-time availability and best price:

Manager: Leonia

Email: sales@mvme.cn

Whatsapp: +8618030175807

Q&A

Q1: What is the Hima F3330 8-Channel Output Module and what is it used for?

A1: The Hima F3330 8-Channel Output Module is a safety-related digital output module designed for industrial automation and control systems. It is used to drive and switch field devices such as actuators, solenoids, and indicators with 24 V DC signals, ensuring reliable control in safety-critical applications.

Q2: What are the main electrical specifications of the Hima F3330 8-Channel Output Module?

A2: The Hima F3330 8-Channel Output Module operates with 24 V DC and provides 8 digital output channels with 0.5 A output capability per channel. It has an internal voltage drop of up to 2 V at 500 mA load and operates with a 5 V DC internal supply consuming about 110 mA.

Q3: What protection and fault detection features does the Hima F3330 8-Channel Output Module include?

A3: The Hima F3330 8-Channel Output Module includes undervoltage tripping at ≤ 16 V, short circuit current detection between 0.75 and 1.5 A, and a maximum output leakage current of 350 µA. It also limits output voltage in reset state to 1.5 V, ensuring safe fault handling and system protection.

Q4: What operating limits and physical characteristics does the Hima F3330 8-Channel Output Module have?

A4: The Hima F3330 8-Channel Output Module supports an admissible line resistance of up to 11 Ohm and a maximum test signal duration of 200 µs. It is compact with a space requirement of 4 TE, making it suitable for dense control cabinet installations in industrial environments.
