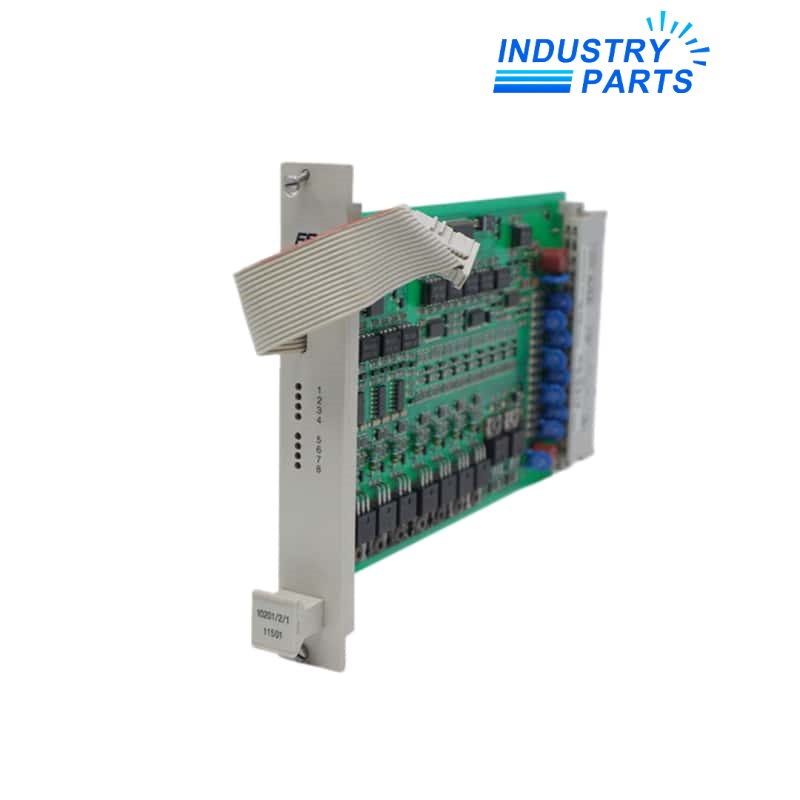

Honeywell 10201/2/1 FSC/ Fail Safe Controller Digital Output Module

Honeywell 10201/2/1 FSC/ Fail Safe Controller Digital Output Module

== Specifications ==

Product Name: Honeywell 10201/2/1 FSC/ Fail Safe Controller Digital Output Module

Item NO.: 10201/2/1

Spare Model: FC-SDO-0824 11502

Type: Digital Output Module

Brand: Honeywell

Estimated Shipping Size: 2 x 19 x 12.9 cm

Weight: 0.15 kg

Approvals: CE, TÜV, UL

Software versions: ≥ 3.00

Space requirements: 4 TE, 3 HE (= 4 HP, 3U)

Number of output channels: 8

Output specification: 24 Vdc solid-state source

Maximum current: 550 mA

Maximum lamp load: 120 mA (2.9 W)

Maximum load capacitance: 1 µF

Voltage drop: < 2.0 Vdc at 500 mA

Country of origin: USA

Place of shipment: Xiamen, China

Delivery Time: 1-3 days

Quantity: 100% New Original

Minimum Order Quantity: 1pc

Shipping Method: DHL\UPS\Fedex\EMS\Others

The Honeywell 10201/2/1 FSC/ Fail Safe Controller Digital Output Module is a high-reliability component designed for safety-critical industrial automation applications. It features eight 24 Vdc, 550 mA output channels capable of driving both resistive loads, such as lamps, and inductive loads, such as solenoids. Each inductive output is equipped with a suppression diode, and all outputs—including the diodes—are fully tested to meet stringent fail-safe requirements.The module’s outputs are organized into two groups of four, with each group having its own secondary means of de-energization. This design enhances shutdown selectivity in the event of a channel failure and allows the processor or watchdog to de-energize outputs independently of the application function. During the configured process safety time, the module verifies the outputs for de-energization capability, group de-energization, crosstalk prevention, and suppression diode functionality, ensuring dependable performance in fail-safe applications.Compact and space-efficient (4 TE, 3 HE / 4 HP, 3U) and weighing just 0.15 kg, the module is easy to install in FSC racks. It is fully compliant with CE, TÜV, and UL standards and compatible with software versions ≥ 3.00, making it a robust solution for process control and safety automation systems.

== Let's Talk ==

Manager: Leonia

Email: sales@mvme.cn

Whatsapp: +8618030175807

== Why Choose Industryparts? ==

Speed: Global Express Shipping (Minimizing your downtime).

Rare Expertise: Specialists in Obsolete & Legacy PLCs/DCS.

Security: 1-Year Warranty + 100% Rigorous Technical Testing.

Legacy: 20+ Years of Industrial Automation Leadership.

== Professional & Logistics Focused ==

Service Scope: Global Coverage, Worldwide Logistics, International Distribution

Speed: Express Shipping, Expedited Delivery, Urgent Fulfillment
Security: Secure Packaging, Component Protection, Transit Safety
Visibility: Real-Time Tracking, Shipment Monitoring, Order Transparency

== Common Questions ==

Q1: How many output channels does the Honeywell 10201/2/1 FSC/ Fail Safe Controller Digital Output Module have?

A1: The module has eight 24 Vdc output channels, each capable of delivering up to 550 mA.

Q2: What safety functions are tested during the configured process safety time on the Honeywell 10201/2/1 FSC/ Fail Safe Controller Digital Output Module?

A2: The module tests the outputs for ability to de-energize, group de-energization, crosstalk between outputs, and functioning of the suppression diodes.

Q3: What are the installation and compliance specifications of the Honeywell 10201/2/1 FSC/ Fail Safe Controller Digital Output Module?

A3:The module occupies 4 TE, 3 HE (4 HP, 3U), weighs 0.15 kg, is compatible with software versions ≥ 3.00, and meets CE, TÜV, and UL safety standards.
