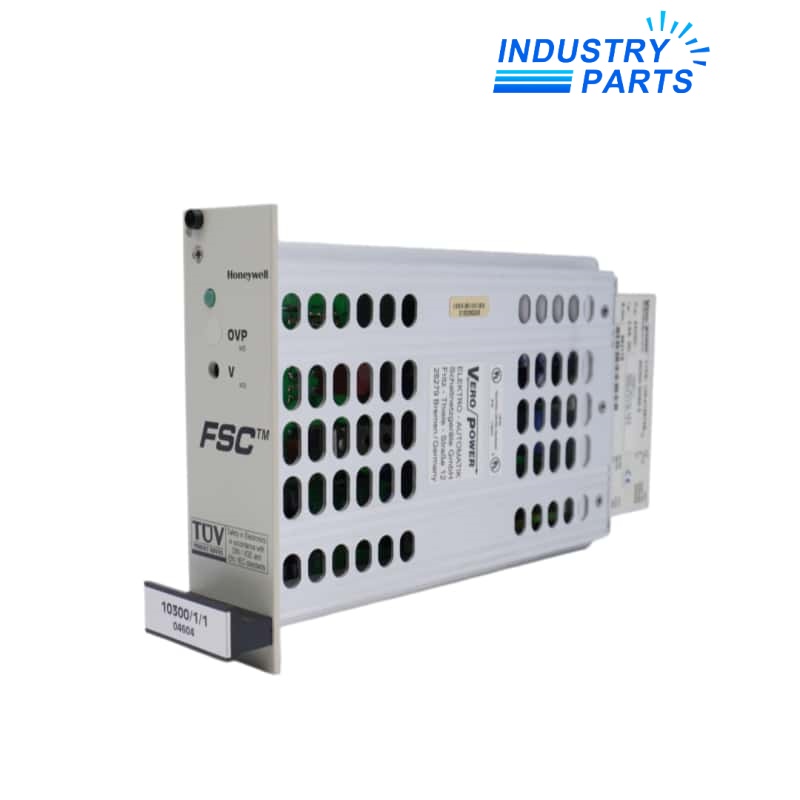

Honeywell 10300/1/1 136-010875B Converter Module

Honeywell 10300/1/1 136-010875B Converter Module

Item NO.: 10300/1/1
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameHoneywell 10300/1/1 136-010875B Converter Module
  • Item NO.10300/1/1
  • Weight0.0000 kg = 0.0000 lb = 0.0000 oz
  • CategoryDCS
  • BrandHoneywell
  • Creation Time2026-03-30
  • Coated FSC-node DC converter providing 5 VDC at 12 A from the 24 VDC system supply.
Honeywell Industrial Automation

Honeywell 10300/1/1 136-010875B Converter Module

Coated FSC-node DC converter providing 5 VDC at 12 A from the 24 VDC system supply.

Product Identification

Honeywell 10300/1/1 is identified for the FSC node as a coated 24 VDC to 5 VDC converter rated at 12 A.

Its role is to provide the regulated low-voltage supply required by the associated FSC central hardware. It is a power-conversion module, not the diagnostic and battery module used elsewhere in the FSC node.

Replacement work must preserve the exact module identity, connector arrangement, slot assignment, cooling path and FSC cabinet power-distribution design.

Engineering Data

Model 10300/1/1
Product type DC converter module
System family Honeywell FSC node
Input 24 VDC
Output 5 VDC
Output rating 12 A
Coating designation Coated configuration
Installation role FSC central-part low-voltage power conversion
Weight entry 0 kg where no official public weight is specified

Functions

  • Converts the FSC 24 VDC supply to the 5 VDC rail used by associated central hardware.
  • Provides up to the documented 12 A output rating.
  • Supports the coated FSC-node hardware configuration.
  • Maintains the defined power architecture for central-part modules when installed in the correct location.

System Integration

  • Verify that the replacement is exactly 10300/1/1 and not another FSC diagnostic, processor or communication module.
  • Confirm the 24 VDC supply, 5 VDC load path, connector condition and cabinet grounding before energizing.
  • Inspect airflow and surrounding slot condition because reliable power conversion depends on the qualified cabinet environment.
  • Follow the FSC maintenance procedure and plant safety-management change control for removal, installation and functional testing.

Applications

  • Low-voltage power conversion in Honeywell FSC nodes.
  • Maintenance of legacy FSC central-part assemblies.
  • Like-for-like replacement in coated safety-system cabinets.
  • FSC lifecycle support where the installed architecture remains qualified.

Lifecycle

Treat 10300/1/1 as legacy FSC system hardware and verify current support, repair and migration options before procurement.

Do not substitute 10006/2/1: Honeywell identifies that different model as the diagnostic and battery module.

Keep the converter revision, cabinet location, connected load and post-maintenance test results in the safety-system equipment record.

FAQ

Q1. What is 10300/1/1?
It is a coated Honeywell FSC-node converter from 24 VDC to 5 VDC, rated at 12 A.
Q2. Is it the FSC diagnostic and battery module?
No. Honeywell identifies 10006/2/1 as the diagnostic and battery module; 10300/1/1 is the DC converter.
Q3. What output does it provide?
The documented output is 5 VDC at 12 A from a 24 VDC input.
Q4. Can another FSC module be substituted by appearance?
No. Match the exact model, revision, slot, connectors and system documentation.
Q5. Should the output be tested after installation?
Yes. Verify the 5 VDC rail, connected loads, alarms and FSC node operation using the approved maintenance procedure.
Q6. Is a public official weight available?
No verified public Honeywell weight was used, so the product weight remains 0 in the listing.

Sales Support

Send the exact part number, hardware revision, required quantity and destination to IndustryParts for compatibility and availability assistance.
