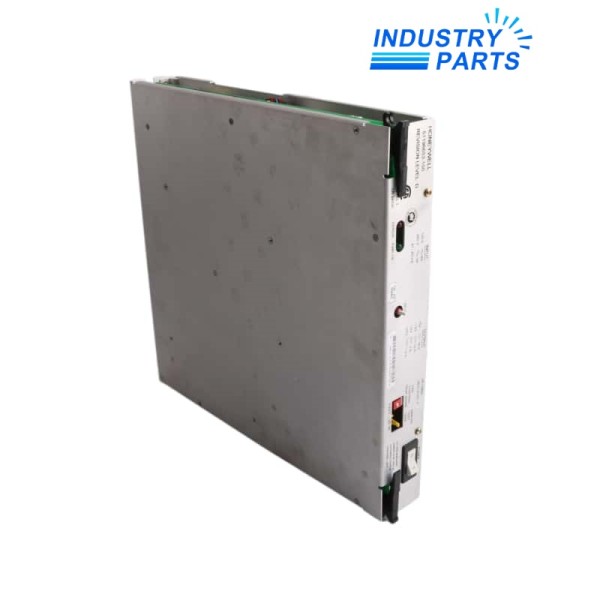

Honeywell 51196653-100 Five-slot File Power Supply
Item NO.: 3592705
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell 51196653-100 Five-slot File Power Supply
- Item NO.3592705
- Weight0.7600 kg = 1.6755 lb = 26.8082 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2026-03-27
Product Identification
Honeywell TDC 3000 power supply part 51196653-100 is listed in historical parts references as a 5-Slot Chassis Power Supply with package relation to MPN family 51201436-300.
Manufacturer
Honeywell
Product Family
TDC 3000 / Five-Slot Chassis Power Supply
Catalog note
Described as 5-slot Power Supply CE in legacy catalogue listings.
MPN / package reference
51201436-300 (historical replacement package context)
Engineering Data
| Specification item | Officially described behavior |
|---|---|
| Platform | Honeywell TDC 3000/LCN node power architecture, used in 5-slot chassis. |
| Input voltage concept | Power supplies in this generation are auto-ranging and described for 102~264 VAC RMS operation. |
| Output power | Designed as a 5-slot chassis power source to provide main logic/power rails for node modules. |
| Power quality | Power factor corrected (PFC) design is documented in Honeywell PFC supply manuals. |
| Cooling | Fan speed control is implemented as temperature/load-aware (TEMP SENSE), with manual Fixed mode available. |
| Connector evolution | EC-family supplies are associated with IEC320-style AC connector and related kit-controlled migration from older 8-pin Beau connector supply configurations. |
| Package / repair context | Legacy references list support actions with replacement kits and connector-modified units. |
The technical statements above are based on Honeywell manual notes around the PD15A07/A07(B/C) family and the documented 5-slot power-supply migration path.
Functions
- Provides stable AC-derived DC power for 5-slot node operation in TDC 3000 installations.
- Supports node stability and margin features required by chassis operation and software-defined slot control routines.
- Compatible with PFC supply upgrade and connector migration flows documented by Honeywell service literature.
- Offers low-noise thermal management via automatic fan mode with optional fixed-speed mode.
- Used as a maintenance, replacement, or conversion-oriented node power item in TDC 3000 field systems.
Applications
Process control racks
Retrofit and running systems where a 5-slot chassis requires replacement power reliability.
Factory and utility DCS plants
Used in legacy TDC 3000 node environments that still maintain 5-slot chassis resources.
Upgrade projects
Conversion from non-EC to EC power paths for compliance and connector standardization.
Spare logistics and lifecycle support
Stock planning for depleting non-EC stock and conversion kits in supported legacy systems.
Lifecycle
| Lifecycle topic | Current interpretation from available manufacturer material |
|---|---|
| Discontinuation / replacement status | The latest available public manual lines describe that older 8-pin/non-EC supply paths are being superseded by EC migration kits and EC-style supply flows. |
| Official discontinuation date | No public Honeywell bulletin was directly retrieved in this pass for a final "No longer manufactured" date for 51196653-100. |
| Is it fully replaced? | Not only a full drop-in change. Manuals show a migration/kit-based path when moving to EC-style configuration, including connector/cable compatibility actions. |
| Replacement path details | Documents show older 51196653-100 supply context preceding and transitioning to 51196653-200 in upgrade kits; EC PFC supply kits and modified units are referenced for legacy compatibility. |
| Replacement requirements | Connector compatibility, AC cord type, and mechanical/electrical seat verification are required. Manual notes emphasize no field modification of supply body. |
| Alternative replacement models | 51196653-200, 51196654-100, 51196655-100, 51195066-100/200 are in the same power-supply family migration context with kit and tab-level selection differences. |
| Obsolescence handling recommendation | Use current Honeywell replacement tool and confirm last-time-buy/last-time-ship before final change freeze. |
Practical migration rule: treat replacement as a controlled conversion (power connector and cabling check required), not a pure label swap.
Related Products
FAQ (5 common questions)
Q1: Is 51196653-100 still an active buy item?
A1: Publicly available documentation shows a migration path with EC-oriented replacements; no direct official end-of-manufacture date was found in the retrieved material.
A1: Publicly available documentation shows a migration path with EC-oriented replacements; no direct official end-of-manufacture date was found in the retrieved material.
Q2: Can 51196653-100 be replaced one-for-one with another 5-slot supply?
A2: In many cases yes for function, but not always one-for-one mechanically due connector and cabling migration requirements.
A2: In many cases yes for function, but not always one-for-one mechanically due connector and cabling migration requirements.
Q3: What is the key prerequisite for replacement?
A3: Confirm connector type and AC power cable compatibility, then apply the documented upgrade kit flow if required.
A3: Confirm connector type and AC power cable compatibility, then apply the documented upgrade kit flow if required.
Q4: Is the replacement fully equivalent?
A4: No. It is usually an upgrade conversion (EC/connector/cable set changes), not a simple label swap.
A4: No. It is usually an upgrade conversion (EC/connector/cable set changes), not a simple label swap.
Q5: Which should I choose for project standards?
A5: Prefer current approved EC-compatible options and official replacement kits after test-fit sign-off and backplan for legacy node behavior.
A5: Prefer current approved EC-compatible options and official replacement kits after test-fit sign-off and backplan for legacy node behavior.
