Honeywell 8C-PAOHA1 51454469-275 Analog Output Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell 8C-PAOHA1 51454469-275 Analog Output Module
- Item NO.3538957
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2026-02-10
- Honeywell Analog Output Module with HART
8C-PAOHA1
Product Identification

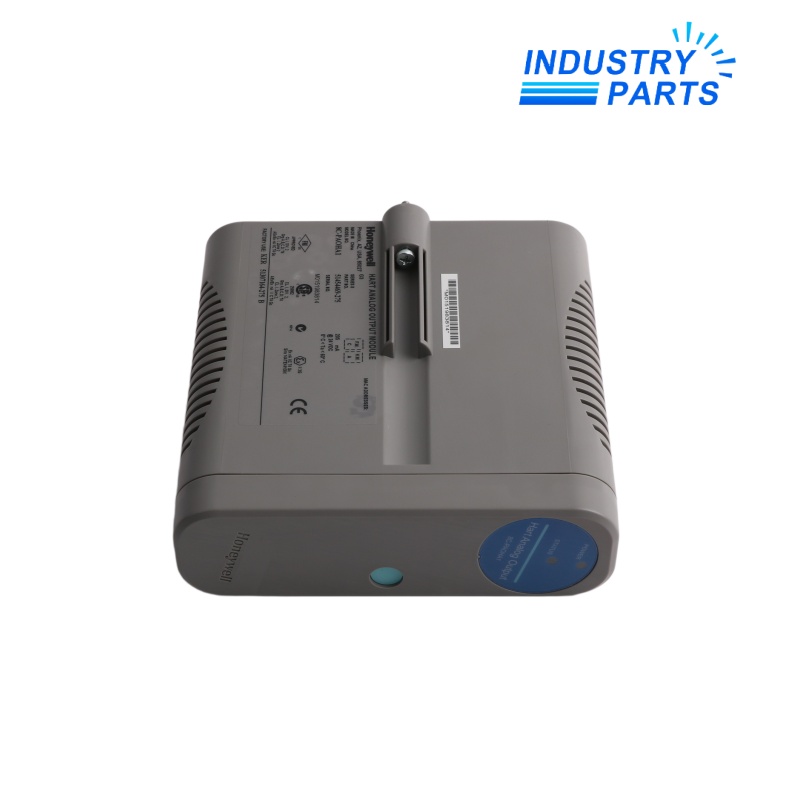

8C-PAOHA1 (Part No. 51454469-275) is a high-performance analog output module with HART communication from Honeywell's Experion PKS Series 8 I/O family. It provides precise 4‑20 mA current output signals for controlling field devices such as actuators, control valves, and positioners.
The module features 16 output channels with built-in HART pass-through capability, enabling two-way digital communication with smart field devices for configuration, diagnostics, and process data retrieval. It is coated for enhanced protection in harsh industrial environments.
The 8C-PAOHA1 is compatible with C300/C200 controllers and supports redundant configurations for critical control loops requiring high availability. It includes per-channel fail-safe behavior and open-wire detection.
- Honeywell Experion PKS Series 8
- 16-channel analog output with HART
- Part Number: 51454469-275
- Conformal coated (275 suffix)
- Supports redundant configurations
Engineering Data
Electrical specifications
| Manufacturer | Honeywell Process Solutions |
| Model | 8C-PAOHA1 |
| Part Number | 51454469-275 |
| Product type | Analog Output Module with HART |
| Output channels | 16 |
| Output type | 4-20 mA |
| Load resistance | 50-800 Ω |
| Output current range | 2.9 mA to 21.1 mA |
| Module current rating | 205 mA |
| Voltage rating | 24 VDC |
| Maximum open circuit voltage | 22 V |
| Accuracy (calibrated) | ±0.2% of full scale at 25°C |
| Resolution | ±0.05% of full scale |
| Temperature drift | 0.005% of full scale per °C |
| Output ripple | ≤ 100 mV p-p |
Physical & environmental
| Mounting | Series 8 I/O rack / IOTA |
| IOTA (non-redundant) | 8C-TAOXA1, Coated, 6" |
| IOTA (redundant) | 8C-TAOXB1, Coated, 12" |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Protection rating | IP20 |
| Conformal coating | Standard (275 suffix) |
| HART protocol | Rev.6 |
| Certifications | CE, UL, CSA |
Functions
Signal conversion & control
- Digital-to-analog conversion — Receives digital control signals from the C300/C200 controller and converts them to precise 4‑20 mA analog outputs.
- HART pass-through — Supports HART Rev.6 protocol for bidirectional digital communication with smart field devices, enabling configuration, diagnostics, and process data retrieval.
- Multiple output ranges — Supports 4-20 mA current output with a usable range of 2.9 mA to 21.1 mA.
Diagnostics & protection
- Fail-safe behavior — Per-channel FAILOPT configuration allows HOLD LAST VALUE or SHED to SAFE VALUE on failure.
- Open-wire detection — Provides Channel Soft Failure indication for open field wiring, enabling rapid fault identification.
- Redundancy support — Optional 1:1 redundant configuration with automatic failover (switchover gap ≤ 10 ms).
Applications
The 8C-PAOHA1 is widely deployed in process and discrete control applications requiring high-precision analog output with HART capability.
Lifecycle
Active currently in production — fully supported
Product status: The 8C-PAOHA1 remains an active, supported product in Honeywell's Series 8 I/O portfolio. It continues to be the recommended analog output module with HART for new Experion PKS installations and system expansions.
Spare parts & support: Replacement units and accessories are available through Honeywell's standard support channels and authorized distributors. The Series 8 I/O family is designed for long‑term availability.
Migration & replacement:
- Native HART Rev.6 support (enhanced over earlier versions)
- Improved accuracy (±0.2% vs older modules)
- Enhanced diagnostics and fail-safe behavior
- Conformal coating for harsh environments
Recommendation: For new Experion PKS analog output applications with HART communication, the 8C-PAOHA1 remains the recommended solution.
