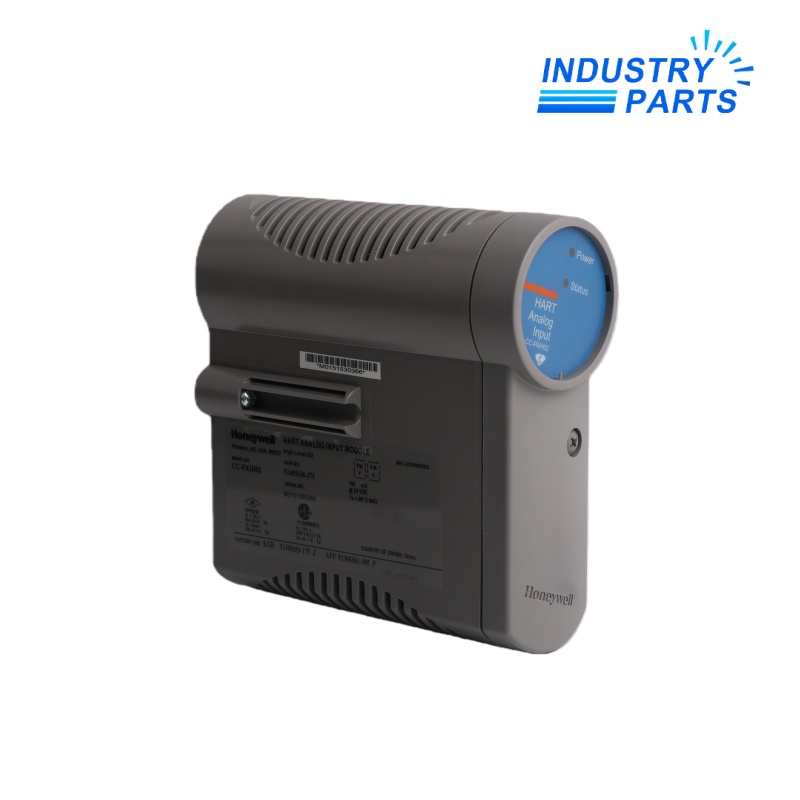

Honeywell CC-PAIH02 51405038-375 Analog Input Module
Item NO.: CC-PAIH02 51405038-375
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell CC-PAIH02 51405038-375 Analog Input Module
- Item NO.CC-PAIH02 51405038-375
- Weight2.0000 kg = 4.4092 lb = 70.5479 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2025-10-24
- Honeywell Analog Input Module
CC-PAIH02
Honeywell HART-capable process input module
Technical Summary
- Manufacturer: Honeywell
- Function: 16-channel differential process input module
- Signal processing: 16-bit A/D conversion chain for process values
- Diagnostics support: open-wire and loop anomaly reporting
- High-density module for fast loop scan and control feedback
- HART-capable architecture depending on terminal/channel configuration
Specifications
| Channel count | 16 differential inputs |
|---|---|
| Data processing | 16-bit conversion path |
| Signal feature | CMR/CMV processing with loop-safety oriented protection logic |
| Operational profile | Fast loop scan and deterministic acquisition intent |
| Interface | Slot-compatible module interface for Honeywell controller stack |
| Lifecycle | No confirmed public end-of-sale/EOL date found in manufacturer documents collected |
Features
- Compact multi-signal input acquisition
- Loop short/open detection for operation diagnostics
- Suitable for process loops needing stable high-frequency sampling
- Factory-oriented parameterization and alarm handling
- Built for continuous industrial deployment
- Compatible with C200 series control strategies under approved revision
Compatibility
- Integrates into relevant Honeywell C200 platform module slots
- Should be paired with compatible software image and system configuration
- Use approved cabling and terminal standards in process zones
- Cross-family swaps require re-qualification and test plan
Replacement
- No definite EOL date publicly announced in current official public references.
- Use same-generation direct replacement where channel count, timing and HART path are aligned.
- If using non-direct alternative: validate sampling time, alarm behavior, and wiring map.
- Recommended staged acceptance test for high-critical loops.
FAQ
Can this module work with HART devices?
It can in supported configurations where HART communication is enabled by project settings and revision.
Can it be replaced directly by another series card?
Only when channel count, conversion behavior, and diagnostics are equivalent.
What is the official EOL status?
No confirmed end-of-life date is visible in the available official public materials.
How to replace this model safely?
Run a controlled replacement with one-card-at-a-time commissioning and scan/loop verification.
Can one replacement module be shared across different rack versions?
Only if connector keying and firmware matrix are confirmed by engineering.
