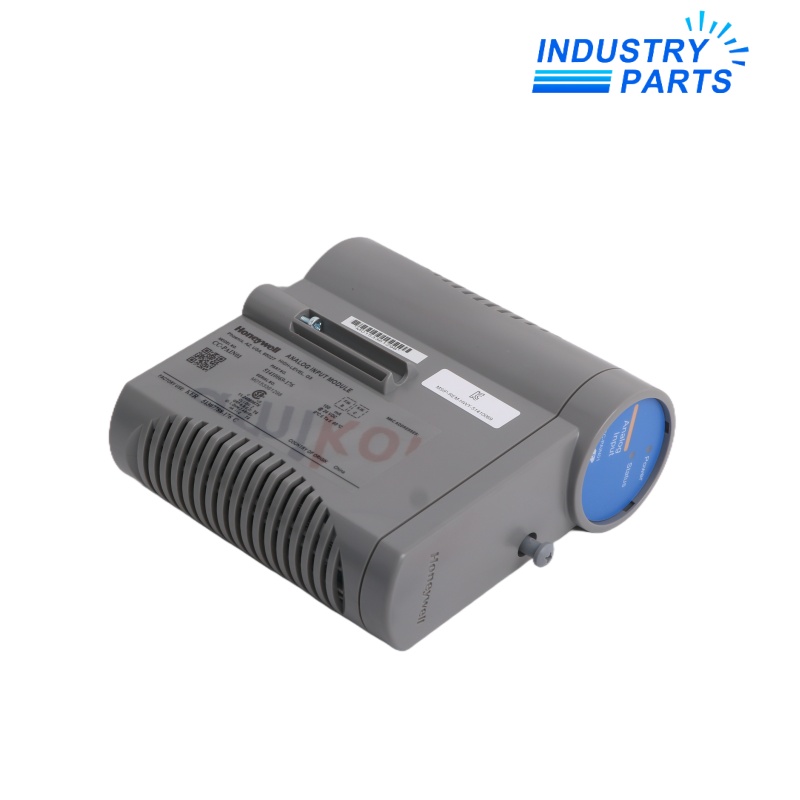

Honeywell CC-PAIN01 51410069-176 Analog Input Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell CC-PAIN01 51410069-176 Analog Input Module
- Item NO.3322670
- Weight0.3500 kg = 0.7716 lb = 12.3459 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2025-08-21
- Honeywell Analog Input Module
51410069-176
Key Information
51410069-176 is the part number for the Honeywell CC-PAIN01 High-Level Analog Input Module, designed for the Experion PKS C300 control platform. It provides 16 single-ended input channels for current signals from 2-wire or self-powered transmitters, with a standard 4‑20 mA input range through a 200 Ω resistor .
The module features a 16-bit A/D converter with high accuracy of ±0.075% of full scale at 25°C, and a fast 50 ms scan rate for real-time process data acquisition . It offers extensive self-diagnostics, optional redundancy, and supplies non-incendive field power to connected transmitters .
The CC-PAIN01 is designed for the C300 controller and is part of Honeywell's Series C I/O family. It is suitable for a wide range of process monitoring applications in chemical plants, power generation, water treatment, pharmaceutical manufacturing, and pulp & paper industries .
- Honeywell Experion PKS Series C
- 16 single-ended analog input channels
- 4-20 mA current input
- 16-bit A/D converter resolution
- Non-incendive field power supply
Functions
Signal acquisition & conversion
- Analog input acquisition — Captures 4-20 mA current signals from field transmitters (2-wire or self-powered) and converts them to digital values for the C300 controller .
- High-resolution A/D conversion — 16-bit A/D converter ensures precise measurement of process variables such as pressure, temperature, flow, and level .
- Fast scan rate — 50 ms scan cycle provides real-time data capture for dynamic process monitoring and control applications .
Diagnostics & protection
- Extensive self-diagnostics — Built-in diagnostic capabilities continuously monitor module health and channel status for proactive maintenance .
- Non-incendive field power — Individually protected current limiting circuits provide safe field power to transmitters, meeting Class 1 Div 2 requirements without fuses .
- Redundancy support — Optional redundant configuration ensures high availability for critical control loops .
Specifications
Electrical & performance
| Manufacturer | Honeywell Process Solutions |
| Model | CC-PAIN01 |
| Part Number | 51410069-176 |
| Product type | High-Level Analog Input Module |
| Input channels | 16 (single-ended) |
| Input type | Current (2-wire or self-powered transmitters) |
| Input range | 4-20 mA (through 200 Ω) |
| A/D converter resolution | 16 bits |
| Input scan rate | 50 ms |
| Hardware accuracy (25°C) | ±0.075% of full scale |
| Hardware accuracy (0-60°C) | ±0.15% of full scale |
| CMRR (DC to 60 Hz) | 70 dB |
| NMRR (60 Hz) | 20 dB |
| Crosstalk (DC to 60 Hz) | -60 dB |
| Maximum normal mode input | ±30 V |
| Normal mode filter response | Single-pole RC, -3 dB @ 6.0 Hz |
Physical & environmental
| Mounting | Series C I/O rack / backplane |
| Country of origin | USA |
| Operating temperature | 0°C to +60°C |
| Storage temperature | -40°C to +85°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Protection rating | IP20 |
| Power supply | 24 V DC (backplane powered) |
| Field power | Individually protected current limiting circuits |
| Certifications | UL, CSA, CE |
Installation
Proper installation of the CC-PAIN01 analog input module ensures reliable signal acquisition and system performance.
Mounting & wiring guidelines
| Mounting position | Series C I/O rack / backplane |
| IOTA (Terminal block) | CC-TAIN01 (required for field wiring) |
| Field wiring | Shielded twisted-pair cable recommended |
| Wire size | Up to 2.5 mm² (14 AWG) |
| Grounding | Single-point ground for cable shield |
| Power supply | 24 V DC backplane powered |
| Transmitter connection | 2-wire or self-powered transmitters supported |
- Install the CC-PAIN01 in a clean, ventilated control cabinet (IP20) with ambient temperature within the specified operating range (0°C to +60°C).
- Use the appropriate IOTA (CC-TAIN01) for field wiring connections. The module plugs directly into the IOTA, which provides the terminal connections .
- When wiring transmitters, ensure correct polarity for 4-20 mA loops. The module supports both 2-wire loop-powered transmitters and self-powered devices .
- Use shielded twisted-pair cable for field wiring and observe single-point grounding to prevent EMI interference on analog signals.
- Verify that the C300 controller firmware is compatible with the module revision before installation .
Lifecycle
Active currently in production — fully supported
Product status: The CC-PAIN01 (51410069-176) remains an active, supported product in Honeywell's Series C I/O portfolio. It continues to be the recommended high-level analog input module for new Experion PKS installations and system expansions .
Spare parts & support: Replacement units and accessories are available through Honeywell's standard support channels and authorized distributors. The Series C I/O family is designed for long‑term availability.
Replacement & migration:
- 16-channel high-density input (vs. lower channel count in legacy modules)
- Improved accuracy (±0.075% vs older modules)
- Faster scan rate (50 ms) and 16-bit resolution
- Enhanced diagnostics and non-incendive field power
Recommendation: For new Experion PKS analog input applications, the CC-PAIN01 remains the recommended solution for high-level current signal acquisition.
