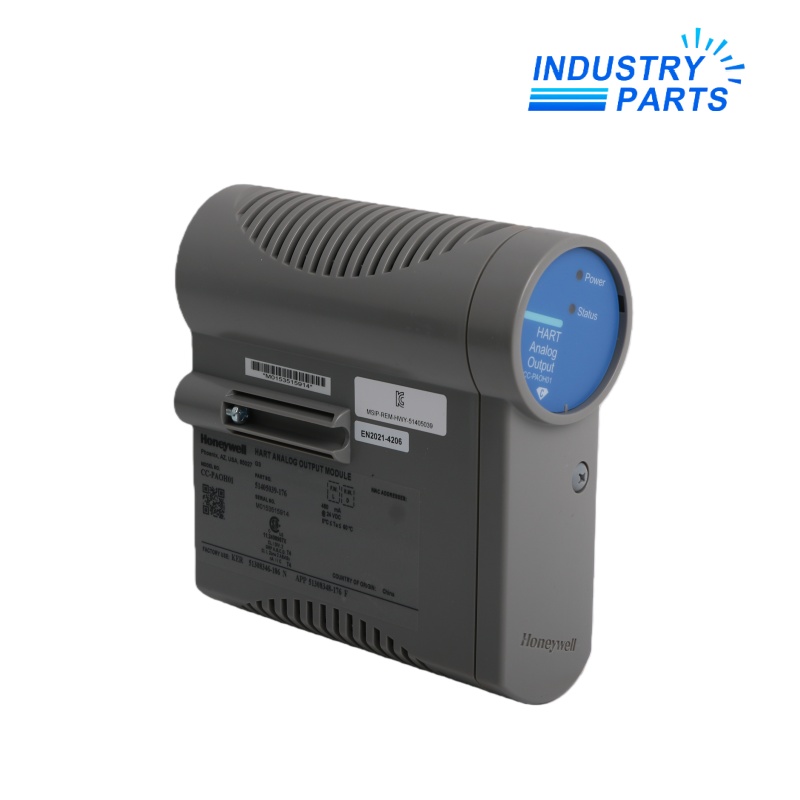

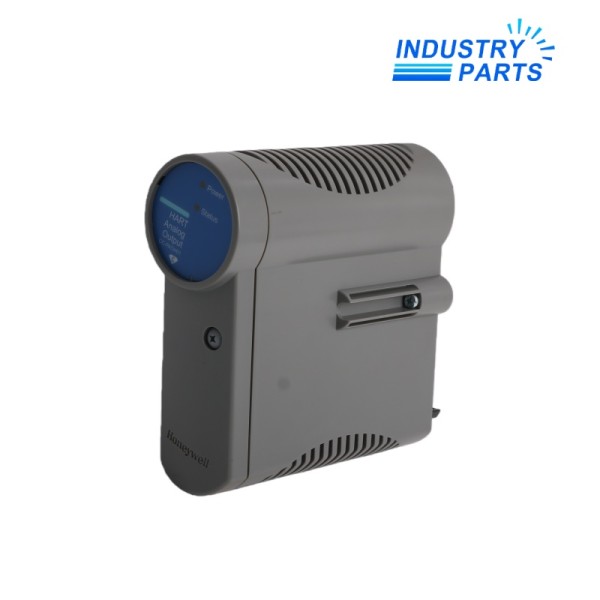

Honeywell CC-PAOH01 Analog Output Module

Honeywell CC-PAOH01 Analog Output Module

Item NO.: 3459899
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameHoneywell CC-PAOH01 Analog Output Module
  • Item NO.3459899
  • Weight0.1800 kg = 0.3968 lb = 6.3493 oz
  • CategoryDCS
  • BrandHoneywell
  • Creation Time2025-11-25
  • Honeywell Analog Output Module
Honeywell CC-PAOH01 | Analog Output Module

CC-PAOH01

Analog Output Module Honeywell Process Solutions Series C I/O
Experion PKS · Series C
Overview Specifications Features Applications Lifecycle FAQ Recommended Models

Overview

CC-PAOH01 is a high‑performance analog output module from Honeywell's Series C I/O family, designed for the Experion PKS distributed control system. It provides 8 isolated analog output channels with HART communication capability, enabling precise control of field actuators such as control valves, positioners, and variable speed drives.

The module supports 4‑20 mA output signals with exceptional accuracy and stability, and includes comprehensive diagnostic features for predictive maintenance. Its hot‑swap capability allows replacement without system shutdown, ensuring maximum plant availability.

8 channels 4-20 mA HART communication Hot-swap capable Isolated outputs
Key features
  • 8 isolated analog outputs
  • HART pass‑through capability
  • 0.1% accuracy
  • Experion PKS native integration
  • Conformal coated PCB

Specifications

Hardware parameters

Manufacturer Honeywell Process Solutions
Model CC-PAOH01
Module type Analog output module
Number of channels 8
Output signal 4‑20 mA (HART compatible)
Accuracy ±0.1% of span
Resolution 16‑bit
Load impedance 0‑750 Ω
Isolation Channel‑to‑channel: 500 VDC
Power supply 24 VDC (±10%) / backplane powered
Power consumption Typical 12W
Operating temperature 0°C to +60°C
Storage temperature -40°C to +85°C
Certifications UL, CSA, CE, ATEX (optional)

Interfaces & diagnostics

Field connection Removable terminal block (40‑pin)
LED indicators RUN, FAULT, ACTIVE, HART, Channel status
Mounting Series C I/O rack
Hot‑swap Supported
Conformal coating Standard (corrosion protection)
Diagnostics Overcurrent, open circuit, short circuit, HART communication status
HART protocol: Version 5 / 7 compatible

Features

Performance & accuracy

  • High precision — 16‑bit resolution with ±0.1% accuracy ensures reliable control for critical process loops.
  • HART pass‑through — Enables two‑way digital communication with smart field devices for configuration and diagnostics.
  • Channel isolation — 500 VDC channel‑to‑channel isolation eliminates ground loop interference.

Reliability & maintenance

  • Hot‑swap capability — Replace a faulty module online without interrupting plant operations.
  • Comprehensive diagnostics — Real‑time monitoring of output current, load, and HART communication health.
  • Conformal coating — Protects against moisture, dust, and corrosive atmospheres in harsh industrial environments.

Applications

CC-PAOH01 is widely deployed in continuous process industries requiring precise analog output control with HART capability.

Control valve positioning
Variable speed drives (VSD)
Process setpoint control
Flow & pressure regulation
Temperature control loops
Actuator control
HART device configuration
Experion PKS migration projects
Common pairings: Used with CC‑PAIx01 analog input modules, C300 controllers, and Series C I/O racks.

Lifecycle & Replacement

Active currently in production — no planned discontinuation

Product status: CC‑PAOH01 remains an active, supported product in Honeywell's Series C I/O portfolio. It is the primary recommended analog output module for new Experion PKS installations.

Migration & replacement considerations:

Legacy replacement path: CC‑PAOH01 supersedes earlier analog output modules such as TC‑IAOH61 and 51304380‑100 in Series C migration projects. Key upgrade benefits include:
  • Native HART support (not available in older modules)
  • Improved accuracy (0.1% vs 0.25%)
  • Enhanced diagnostics and predictive maintenance capabilities
  • Same physical footprint — drop‑in replacement with minimal system reconfiguration
Related models: CC‑PAOH11 (16‑channel variant), CC‑PAOX01 (isolated HART analog output)

Recommendation: For customers migrating from legacy systems, CC‑PAOH01 offers the most cost‑effective and feature‑rich path to modern Experion PKS analog output capability.

FAQ – Frequently Asked Questions

Q1: How many analog output channels does CC‑PAOH01 provide?

It provides 8 isolated 4‑20 mA analog output channels, each with HART communication capability.

Q2: Does CC‑PAOH01 support HART communication?

Yes. It supports HART pass‑through (both Version 5 and Version 7), allowing digital communication with smart field devices via the same 4‑20 mA wiring.

Q3: Is this module hot‑swappable?

Yes. CC‑PAOH01 supports online replacement without requiring system shutdown, provided the module is in a redundant or non‑critical loop.

Q4: What diagnostics does the module provide?

It offers real‑time diagnostics including overcurrent detection, open circuit detection, short circuit detection, and HART communication health monitoring.

Q5: Is CC‑PAOH01 compatible with older TDC 3000 systems?

It is designed for Experion PKS Series C architecture. For TDC 3000 systems, migration to Experion PKS or use of compatible interface modules is required.
